The Atlas Copco EP6XS SR10 is a non-shut-off pneumatic pulse tool developed for professional fastening and industrial assembly applications. As part of the Atlas Copco ErgoPulse Non-shut-off range, it is designed for production environments that require efficient fastening, practical operator handling and reliable performance across repetitive assembly tasks.
Technical Specifications
| Dimension & Weight | |
|---|---|
| Air inlet thread | 1/4 in |
| Bolt size | M6 mm |
| CS distance | 22 mm |
| Length | 221 mm |
| Output size | 3/8″ |
| Recommended hose size | 8 mm |
| Square drive | 3/8 in |
| Weight | 0.7 kg |
| Design & Functions | |
|---|---|
| Model type | Straight |
| Output type | Square, Male |
| SCIP | 9e6972b2-2f4b-487b-bd1c-d051871d8321 |
| Shut-off | No |
| Certifications, Standards & Directives | |
|---|---|
| EAC certified | Yes |
| EU directives | 2006/42/EC |
| EC standard | EN ISO 11148-6:2012 |
| UK legislation | S.I. 2008/1597 |
| UK standard | EN ISO 11148-6:2012 |
| Air Information | |
|---|---|
| Air consumption under load | 8 l/s |
| Max working pressure | 7 bar |
| Nominal working pressure | 6.3 bar |
| Speed | |
|---|---|
| Free speed | 8000 r/min |
| Noise & Vibrations | |
|---|---|
| Sound power | 93 dB(A) |
| Sound pressure | 82 dB(A) |
| Sound standard | ISO15744 |
| Sound uncertainty | 3 dB(A) |
| Vibration standard | ISO28927-2 |
| Vibration uncertainty | 2.2 m/s2 |
| Vibration value | 6 m/s2 |
| Torque | |
|---|---|
| Torque range max | 20 Nm |
| Torque range min | 10 Nm |
Atlas Copco EP6XS SR10 ErgoPulse Non-Shut-Off Tool
The Atlas Copco EP6XS SR10 is a straight-type non-shut-off pneumatic pulse tool designed for professional fastening and industrial assembly applications. It provides a torque range of 10–20 Nm and a free speed of 8,000 r/min, giving the model a technical profile suited to repetitive fastening operations where this torque range and operating speed match the assembly requirement.
The EP6XS SR10 is specified for M6 bolt size applications and uses a 3/8 inch male square output with a 3/8 inch square drive. The tool has an overall length of 221 mm, a CS distance of 22 mm and a weight of 0.7 kg. Its straight configuration should be considered when selecting a tool for workstations where access direction, available space and operator positioning are important.
For pneumatic operation, the tool has a nominal working pressure of 6.3 bar and a maximum working pressure of 7 bar. Air consumption under load is 8 l/s, while the recommended hose size is 8 mm and the air inlet thread is 1/4 inch.
Applications
The Atlas Copco EP6XS SR10 is intended for industrial fastening applications requiring a 10–20 Nm torque range, M6 bolt size capability, 8,000 r/min free speed and 3/8 inch square drive. Its straight body configuration makes it suitable for assembly processes where the fastening point and workstation layout favor an inline tool design.
As a non-shut-off pulse tool, the EP6XS SR10 belongs to the Atlas Copco ErgoPulse – Non-shut-off range. Buyers can compare models in this category according to torque range, tool configuration, bolt size, drive size, speed, air requirements and physical dimensions.
Key Features
- Non-shut-off pneumatic pulse tool
- Straight model configuration
- Torque range: 10–20 Nm
- Free speed: 8,000 r/min
- M6 bolt size
- 3/8 inch male square output
- 3/8 inch square drive
- Nominal working pressure: 6.3 bar
- Maximum working pressure: 7 bar
- Air consumption under load: 8 l/s
- Recommended hose size: 8 mm
- Air inlet thread: 1/4 inch
- Weight: 0.7 kg
- Length: 221 mm
- CS distance: 22 mm
Why Choose the Atlas Copco EP6XS SR10?
The Atlas Copco EP6XS SR10 combines a 10–20 Nm torque range with a free speed of 8,000 r/min and a straight tool configuration. For buyers, the main selection points are whether the required fastening torque falls within this range, whether the M6 bolt size and 3/8 inch square drive match the application, and whether the straight body design is suitable for access to the fastening point.
Its 0.7 kg weight and 221 mm overall length should also be considered for repetitive assembly work. These dimensions can be relevant when evaluating operator handling, workstation clearance and the orientation of the tool during fastening.
Compressed-Air Requirements
The EP6XS SR10 operates at a nominal working pressure of 6.3 bar and a maximum working pressure of 7 bar. Air consumption under load is 8 l/s. Atlas Copco specifies an 8 mm recommended hose size together with a 1/4 inch air inlet thread.
Before installation, buyers should confirm that the compressed-air supply at the workstation can maintain the required pressure and airflow and that the hose and air connection are compatible with the tool.
Noise, Vibration and Standards
The EP6XS SR10 has a sound power level of 93 dB(A) and a sound pressure level of 82 dB(A), measured according to ISO15744 with a sound uncertainty of 3 dB(A). Its listed vibration value is 6 m/s2, with a vibration uncertainty of 2.2 m/s2, according to ISO28927-2.
The model is EAC certified. Its listed EC standard is EN ISO 11148-6:2012 and the applicable EU directive is 2006/42/EC. UK legislation is listed as S.I. 2008/1597, with EN ISO 11148-6:2012 listed as the UK standard.

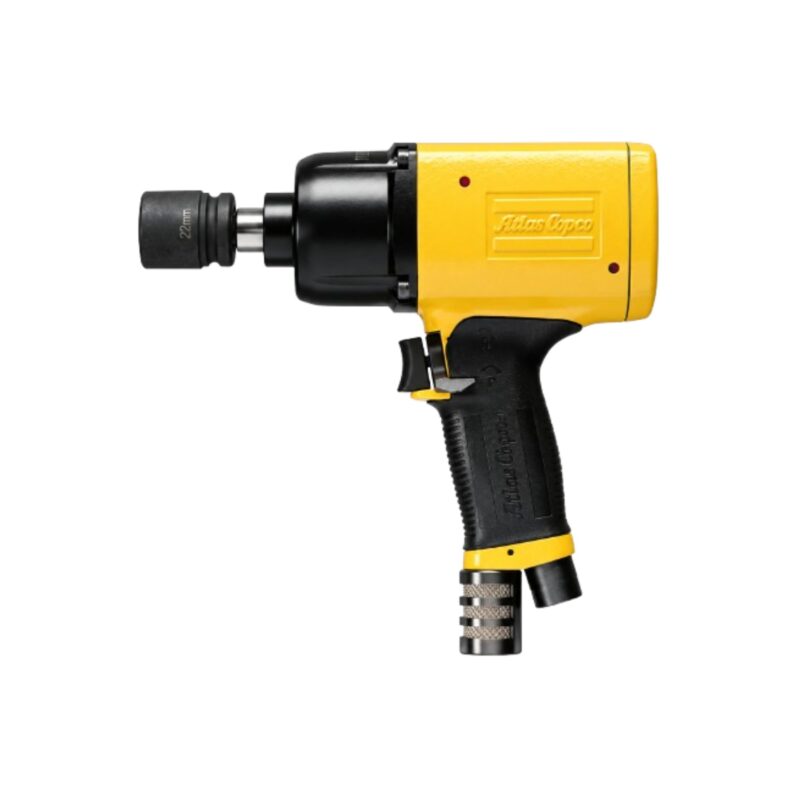

Related Atlas Copco Pneumatic Assembly Tools
Middle East ABC supplies a range of Atlas Copco Pneumatic Assembly Tools for professional fastening and industrial assembly requirements. Buyers looking for other pulse-tool configurations can also compare products within the ErgoPulse – Non-shut-off category according to torque range, straight or pistol configuration, bolt size, drive size, speed, air requirements and tool dimensions.
Atlas Copco EP6XS SR10 Availability
Contact Middle East ABC for technical product information, availability and quotation support for the Atlas Copco EP6XS SR10 and other Atlas Copco pneumatic assembly tools.
