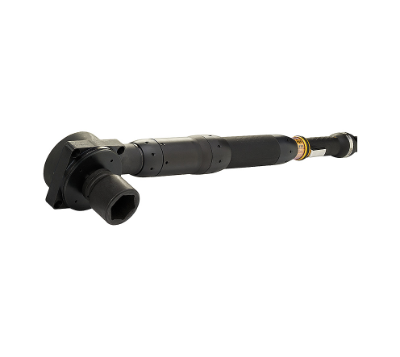

The Atlas Copco ETC ST81-140-15HBH-LO5 is an industrial electric assembly tool designed for precise and repeatable fastening in professional production environments. It is intended for demanding assembly operations where consistent fastening performance and reliable process execution are required.
Technical Specifications
| Design & Functions | |
|---|---|
| Model Type | Crowfoot |
| Crowfoot Type | Offset |
| Torque | |
|---|---|
| Torque Range Min | 28 Nm |
| Torque Range Max | 140 Nm |
| Torque Range Min | 21 ft lb |
| Torque Range Max | 103 ft lb |
| Speed & Motor | |
|---|---|
| Speed | 300 r/min |
| Motor Power | 1,500 W |
| Motor Voltage | 200 V |
| Motor Voltage Type | 3 a.c. |
| Dimensions & Weight | |
|---|---|
| Weight | 4.8 kg |
| Weight | 10.6 lb |
| Length | 675 mm |
| Noise & Vibrations | |
|---|---|
| Sound Pressure | <70 dB(A) |
| Sound Standard | ISO15744 |
| Vibration Value | <2.5 m/s2 |
| Vibration Standard | ISO28927-2 |
| Certifications, Standards & Directives | |
|---|---|
| CCC Certified | No |
| CQC Certified | Yes |
| EAC Certified | Yes |
| KC Certified | Yes |
| KC ID | R-REI-50A-ETVST81 |
| EC Standard | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 |
| EU Directives | 2006/42/EC, 2011/65/EU, 2014/30/EU |
| WEEE | 4 – Large equipment >50cm |
Applications
The Atlas Copco ETC ST81-140-15HBH-LO5 is intended for industrial assembly and fastening operations requiring an offset crowfoot configuration and a torque range of 28–140 Nm. Its 300 r/min operating speed and 1,500 W motor provide key performance specifications for production environments where these fastening parameters are required.
Key Features
- Offset crowfoot electric assembly tool
- Torque range of 28–140 Nm (21–103 ft lb)
- Operating speed of 300 r/min
- 1,500 W motor power
- 200 V, 3 a.c. motor supply
- Tool weight of 4.8 kg (10.6 lb)
- Overall length of 675 mm
- Sound pressure below 70 dB(A) according to ISO15744
- Vibration value below 2.5 m/s2 according to ISO28927-2
- CQC, EAC and KC certified
Why Choose the ETC ST81-140-15HBH-LO5?
The ETC ST81-140-15HBH-LO5 combines a 28–140 Nm torque range with an offset crowfoot configuration, 300 r/min speed and 1,500 W motor. Its 200 V three-phase a.c. supply, 4.8 kg weight and 675 mm overall length provide useful comparison points when evaluating Atlas Copco electric assembly tools for industrial fastening operations.
Explore more models in our Atlas Copco Electric Assembly Tools category to compare different torque ranges, speeds and crowfoot configurations.

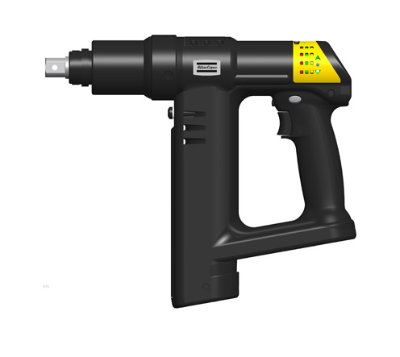

Related Electric Assembly Tools
Middle East ABC offers a range of Atlas Copco electric assembly tools for different industrial fastening requirements. Compare the ETC ST81-140-15HBH-LO5 with other models in the Electric Assembly Tools category based on torque range, speed, motor specifications, dimensions and tool configuration.
Atlas Copco ETC ST81-140-15HBH-LO5 Supplier in UAE
Middle East ABC supplies the Atlas Copco ETC ST81-140-15HBH-LO5 in the UAE for industrial manufacturing and assembly applications. Contact our team for product availability, technical information and quotation support.
Explore the manufacturer’s complete range on the official Atlas Copco Electric Assembly Tools page.
