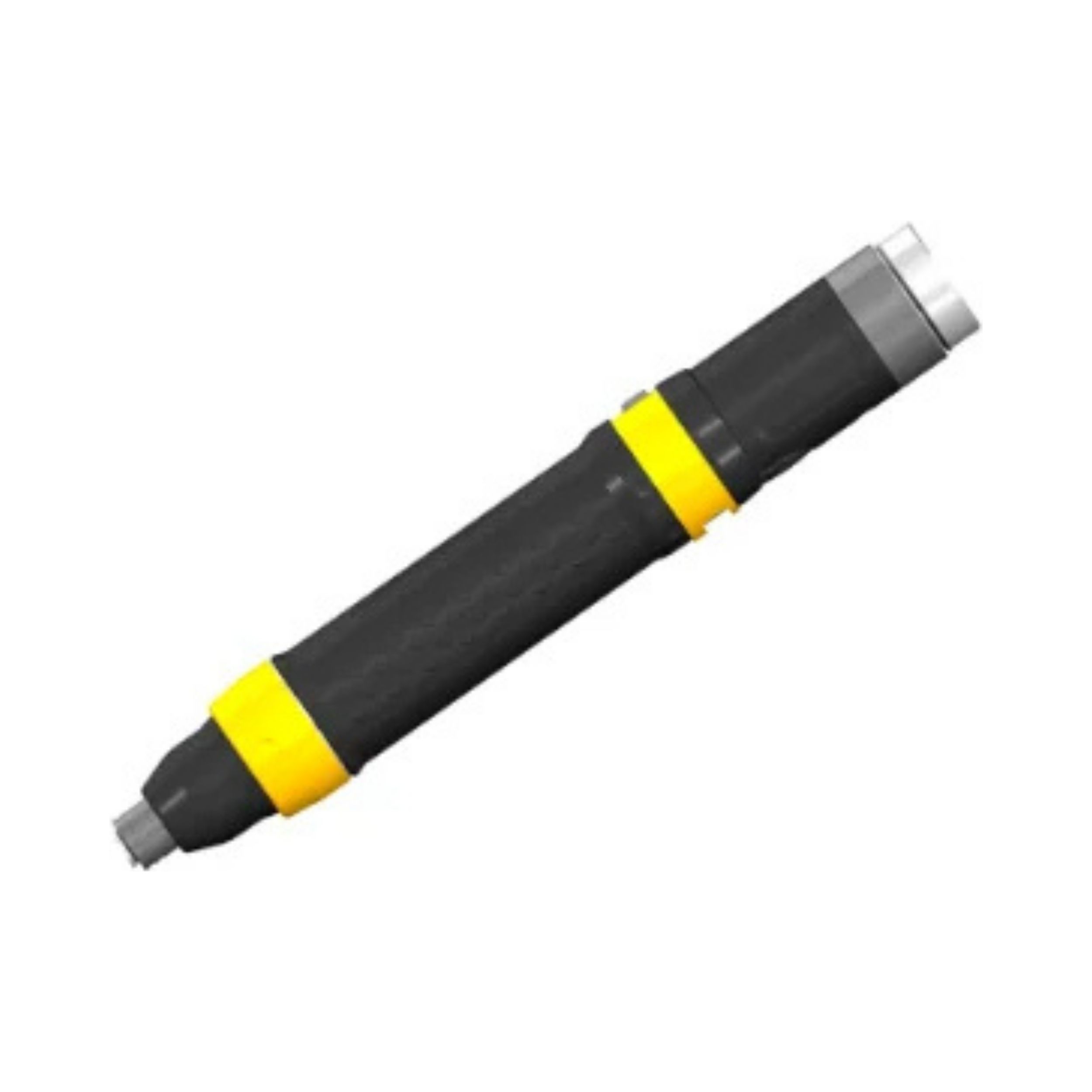

The Atlas Copco ETD ES21-02-I06-PS is an industrial electric assembly tool designed for precise and repeatable fastening in professional production environments. It is intended for demanding assembly operations where consistent fastening performance and reliable process execution are required.
Technical Specifications
| Design & Functions | |
|---|---|
| Tensor | ES |
| Model Type | Straight |
| Shut-off System | Transducer |
| CS Distance | 19.5 mm |
| Torque | |
|---|---|
| Torque Range Min | 0.8 Nm |
| Torque Range Max | 2 Nm |
| Torque Range Min | 0.6 ft lb |
| Torque Range Max | 1.5 ft lb |
| Speed & Motor | |
|---|---|
| Speed | 4,471 r/min |
| Motor Power | 1,040 W |
| Motor Voltage | 200 V |
| Motor Voltage Type | 3 a.c. |
| Dimensions & Weight | |
|---|---|
| Length | 267 mm |
| Weight | 0.75 kg |
| Weight | 1.7 lb |
| Noise & Vibrations | |
|---|---|
| Sound Pressure | <70 dB(A) |
| Sound Standard | ISO15744 |
| Vibration Value | <2.5 m/s2 |
| Vibration Standard | ISO28927-2 |
| Certifications, Standards & Directives | |
|---|---|
| CCC Certified | Yes |
| EAC Certified | Yes |
| KC Certified | Yes |
| KC ID | R-REI-50A-ETDES21 |
| EC Directives | 2006/42/EC, 2011/65/EU, 2014/30/EU |
| EC Standard | EN 61000-6-2, EN 61000-6-4, IEC 61010-1 |
| WEEE | 6 – Electrical and Electronic Tools |
Applications
The Atlas Copco ETD ES21-02-I06-PS is intended for industrial assembly and fastening operations requiring a straight tool configuration and a torque range of 0.8–2 Nm. Its 4,471 r/min operating speed, 1,040 W motor and transducer shut-off system provide key selection parameters for production environments where these specifications are required.
Key Features
- Straight electric assembly tool configuration
- Torque range of 0.8–2 Nm (0.6–1.5 ft lb)
- Operating speed of 4,471 r/min
- 1,040 W motor power
- 200 V, 3 a.c. motor supply
- Transducer shut-off system
- Tensor ES platform
- CS distance of 19.5 mm
- Tool weight of 0.75 kg (1.7 lb)
- Overall length of 267 mm
- Sound pressure below 70 dB(A) according to ISO15744
- Vibration value below 2.5 m/s2 according to ISO28927-2
- CCC, EAC and KC certified
Why Choose the ETD ES21-02-I06-PS?
The ETD ES21-02-I06-PS combines a 0.8–2 Nm torque range with a straight configuration and a high operating speed of 4,471 r/min. Its transducer shut-off system, 1,040 W motor, 200 V three-phase a.c. supply and low 0.75 kg weight provide clear comparison points when evaluating Atlas Copco electric assembly tools for industrial fastening operations.
Explore more models in our Atlas Copco Electric Assembly Tools category to compare different torque ranges, speeds and tool configurations.
Related Electric Assembly Tools
Middle East ABC offers a range of Atlas Copco electric assembly tools for different industrial fastening requirements. Compare the ETD ES21-02-I06-PS with other models in the Electric Assembly Tools category based on torque range, speed, motor specifications, shut-off system and tool configuration.
Atlas Copco ETD ES21-02-I06-PS Supplier in UAE
Middle East ABC supplies the Atlas Copco ETD ES21-02-I06-PS in the UAE for industrial manufacturing and assembly applications. Contact our team for product availability, technical information and quotation support.
Explore the manufacturer’s complete range on the official Atlas Copco Electric Assembly Tools page.
