Straight Cable Screwdriver Tensor ES: Robust design for quality-critical industrial applications. It belongs to the Atlas Copco Electric Assembly Tools range.
Technical Specifications
| Speed | |
|---|---|
| Speed range max | 4471 r/min |
| Power | |
| Motor power | 1040 W |
| Motor voltage type | 3 a.c. |
| Motor voltage | 200 V |
| Design & Functions | |
| Model type | Straight |
| Output feature | Bit holder |
| Output type | Hexagon, Female |
| Shut-off system | Transducer |
| Tool family | ES |
| Noise And Vibrations | |
| Sound pressure | <70 dB(A) |
| Sound standard | ISO15744 |
| Vibration standard | ISO28927-2 |
| Vibration value | <2.5 m/s² |
| Dimension & weight | |
| CS distance | 19.5 mm |
| Length | 267 mm |
| Output size | 1/4" |
| Weight | 0.78 kg |
| Weight | 1.76 lb |
| Torque | |
| Torque range max | 1.5 ft-lb |
| Torque range max | 2 Nm |
| Torque range min | 0.6 ft-lb |
| Torque range min | 0.8 Nm |
| Torque scatter 3s | ≤ 10 % |
| Certifications & standards | |
| CCC certified | No |
| CQC certified | No |
| EAC certified | Yes |
| EU Legislation | 2006/42/EC (MD), 2011/65/EU (RoHS), 2014/30/EU (EMC), 2015/863/EU (RoHS amendment) |
| EU Standard | EN 61000-6-2:2019, EN 61000-6-4:2019, EN 62841-1:2015 + AC:2015 + A11:2022, EN 62841-2-2:2014+AC:2015, EN ISO 12100:2010 |
| KC certified | Yes |
| KC ID | R-REI-50A-ETDES21 |
| UK Regulations | S.I. 2008/1597, S.I. 2012/3032, S.I. 2016/1091 |
| UK Standard | BS EN 62841-1:2015 + AC:2015 + A11:2022, BS EN 62841-2-2:2014, BS EN IEC 61000-6-2:2019, BS EN IEC 61000-6-4:2019, BS EN ISO 12100:2010 |
| WEEE | 5 – Small equipment <50cm |
Benefits
- Fully traceable quality-critical tightenings
- Unsurpassed operator comfort
- Reduced operating cost
- Improved usability
- Operator friendly
Features
- +/-7.5% over three sigma accuracy
- Built-in Transducer
- Patented TurboTight strategy
- Sealed-durable construction
- Visual operator feedback via 360 degree LED
- Hot swap capable

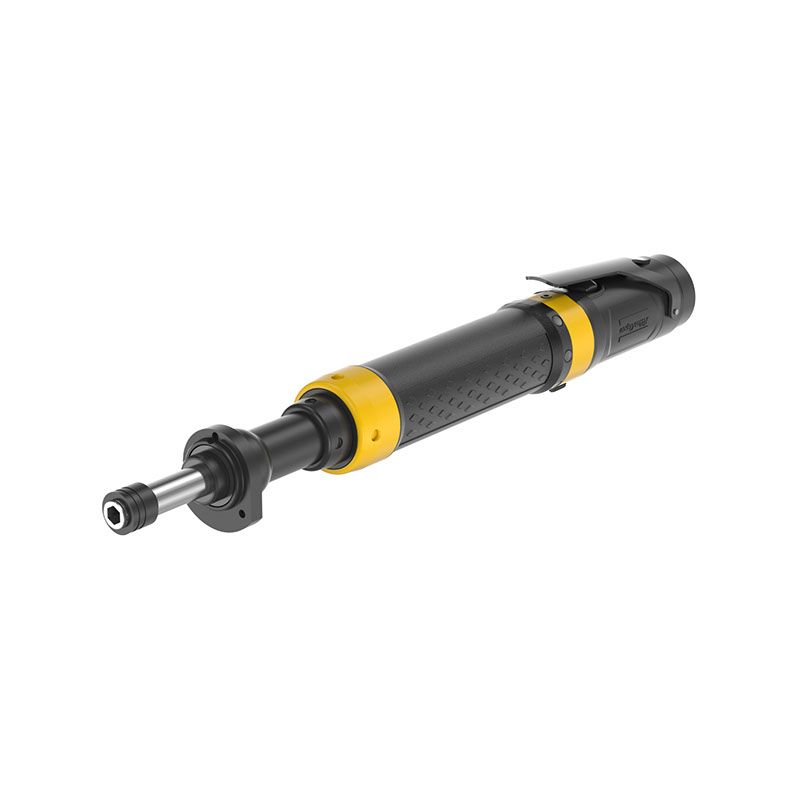

Atlas Copco ETD ES21-02-I06
ETD ES21-02-I06 (part no. 8436 0221 02) is part of the Atlas Copco Straight Cable Screwdriver Tensor ES range.
Atlas Copco ETD ES21-02-I06 Information
Contact Middle East ABC for technical product information and quotation support for part no. 8436 0221 02 and other Atlas Copco electric assembly tools.
