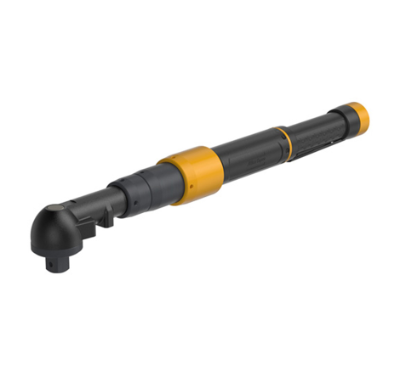

The Atlas Copco ETD ES61-25-10-T25 is an industrial electric assembly tool designed for precise and repeatable fastening in professional production environments. It is intended for demanding assembly operations where consistent fastening performance and reliable process execution are required.
Technical Specifications
| Design & Functions | |
|---|---|
| Tensor | ES |
| Model Type | Straight |
| Square Drive | 3/8 inch |
| Spline/Mounting | 2/2 |
| CS Distance | 23 mm |
| Torque | |
|---|---|
| Torque Range Min | 10 Nm |
| Torque Range Max | 25 Nm |
| Torque Range Min | 7.4 ft lb |
| Torque Range Max | 18.4 ft lb |
| Speed & Motor | |
|---|---|
| Speed | 1,793 r/min |
| Motor Power | 1,500 W |
| Motor Voltage | 200 V |
| Motor Voltage Type | 3 a.c. |
| Dimensions & Weight | |
|---|---|
| Length | 456 mm |
| Weight | 1.85 kg |
| Weight | 4.1 lb |
| Noise & Vibrations | |
|---|---|
| Sound Pressure | <70 dB(A) |
| Sound Standard | ISO15744 |
| Vibration Value | <2.5 m/s2 |
| Vibration Standard | ISO28927-2 |
| Certifications, Standards & Directives | |
|---|---|
| CCC Certified | Yes |
| EAC Certified | Yes |
| KC Certified | Yes |
| KC ID | R-REI-50A-ETVES61 |
| EC Standard | EN 61000-6-2, EN 61000-6-4, IEC 61010-1 |
| EU Directives | 2006/42/EC, 2011/65/EU, 2014/30/EU |
| WEEE | 5 – Small equipment <50cm |
Applications
The Atlas Copco ETD ES61-25-10-T25 is intended for industrial assembly and fastening operations requiring a straight tool configuration, a 3/8 inch square drive and a torque range of 10–25 Nm. Its 1,793 r/min operating speed and 1,500 W motor provide key selection parameters for production environments where these specifications are required.
Key Features
- Straight electric assembly tool configuration
- Torque range of 10–25 Nm (7.4–18.4 ft lb)
- 3/8 inch square drive
- Operating speed of 1,793 r/min
- 1,500 W motor power
- 200 V, 3 a.c. motor supply
- Tensor ES platform
- Spline/Mounting specification of 2/2
- CS distance of 23 mm
- Tool weight of 1.85 kg (4.1 lb)
- Overall length of 456 mm
- Sound pressure below 70 dB(A) according to ISO15744
- Vibration value below 2.5 m/s2 according to ISO28927-2
- CCC, EAC and KC certified
Why Choose the ETD ES61-25-10-T25?
The ETD ES61-25-10-T25 combines a 10–25 Nm torque range with a straight configuration, 3/8 inch square drive and 1,793 r/min operating speed. Its 1,500 W motor, 200 V three-phase a.c. supply, 1.85 kg weight and 2/2 spline/mounting specification provide useful comparison points when evaluating Atlas Copco electric assembly tools for industrial fastening operations.
Explore more models in our Atlas Copco Electric Assembly Tools category to compare different torque ranges, speeds, drives and tool configurations.
Related Electric Assembly Tools
Middle East ABC offers a range of Atlas Copco electric assembly tools for different industrial fastening requirements. Compare the ETD ES61-25-10-T25 with other models in the Electric Assembly Tools category based on torque range, square drive, operating speed, motor specifications, mounting and tool configuration.
Atlas Copco ETD ES61-25-10-T25 Supplier in UAE
Middle East ABC supplies the Atlas Copco ETD ES61-25-10-T25 in the UAE for industrial manufacturing and assembly applications. Contact our team for product availability, technical information and quotation support.
Explore the manufacturer’s complete range on the official Atlas Copco Electric Assembly Tools page.
