Straight Cable Nutrunner Tensor ES: Robust design for quality-critical industrial applications. It belongs to the Atlas Copco Electric Assembly Tools range.
Technical Specifications
| Speed | |
|---|---|
| Speed range max | 1793 r/min |
| Power | |
| Motor power | 1500 W |
| Motor voltage type | 3 a.c. |
| Motor voltage | 200 V |
| Design & Functions | |
| Model type | Straight |
| Output type | Square, Male |
| Shut-off system | Transducer |
| Spline/Mounting | -/1 |
| Tool family | ES |
| Noise & vibrations | |
| Sound pressure | <70 dB(A) |
| Sound standard | ISO15744 |
| Vibration standard | ISO28927-2 |
| Vibration value | <2.5 m/s² |
| Dimension & weight | |
| CS distance | 23 mm |
| Length | 418 mm |
| Output size | 3/8" |
| Weight | 1.7 kg |
| Weight | 3.8 lb |
| Torque | |
| Torque range max | 22.1 ft-lb |
| Torque range max | 30 Nm |
| Torque range min | 8.9 ft-lb |
| Torque range min | 12 Nm |
| Torque scatter 3s | ≤ 7.5 % |
| Certifications, standards & directives | |
| CCC certified | No |
| CQC certified | No |
| EAC certified | Yes |
| EU Legislation | 2006/42/EC (MD)||2011/65/EU (RoHS)||2014/30/EU (EMC)||2015/863/EU (RoHS amendment) |
| EU Standard | EN 61000-6-2:2019||EN 61000-6-4:2019||EN 62841-1:2015 + AC:2015 + A11:2022||EN 62841-2-2:2014+AC:2015||EN ISO 12100:2010 |
| KC certified | Yes |
| KC ID | R-REI-50A-ETVES61 |
| UK Regulations | S.I. 2008/1597||S.I. 2012/3032||S.I. 2016/1091 |
| UK Standard | BS EN 62841-1:2015 + AC:2015 + A11:2022||BS EN 62841-2-2:2014||BS EN IEC 61000-6-2:2019||BS EN IEC 61000-6-4:2019||BS EN ISO 12100:2010 |
| WEEE | 5 – Small equipment <50cm |
Benefits
- Fully traceable quality-critical tightenings
- Unsurpassed operator comfort
- Reduced operating cost
- Improved usability
- Operator friendly
Features
- +/-7.5% over three sigma accuracy
- Built-in Transducer
- Patented TurboTight strategy
- Sealed-durable construction
- Visual operator feedback via 360 degree LED
- Hot swap capable

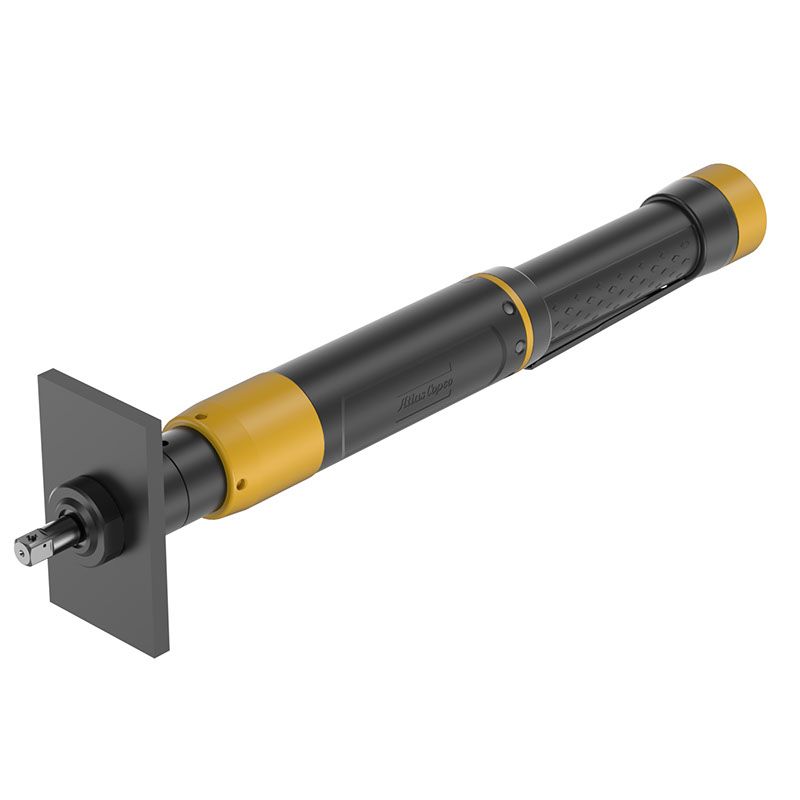

Atlas Copco ETD ES61-25-10
ETD ES61-25-10 (part no. 8436 0265 25) is part of the Atlas Copco Straight Cable Nutrunner Tensor ES range.
Atlas Copco ETD ES61-25-10 Information
Contact Middle East ABC for technical product information and quotation support for part no. 8436 0265 25 and other Atlas Copco electric assembly tools.
