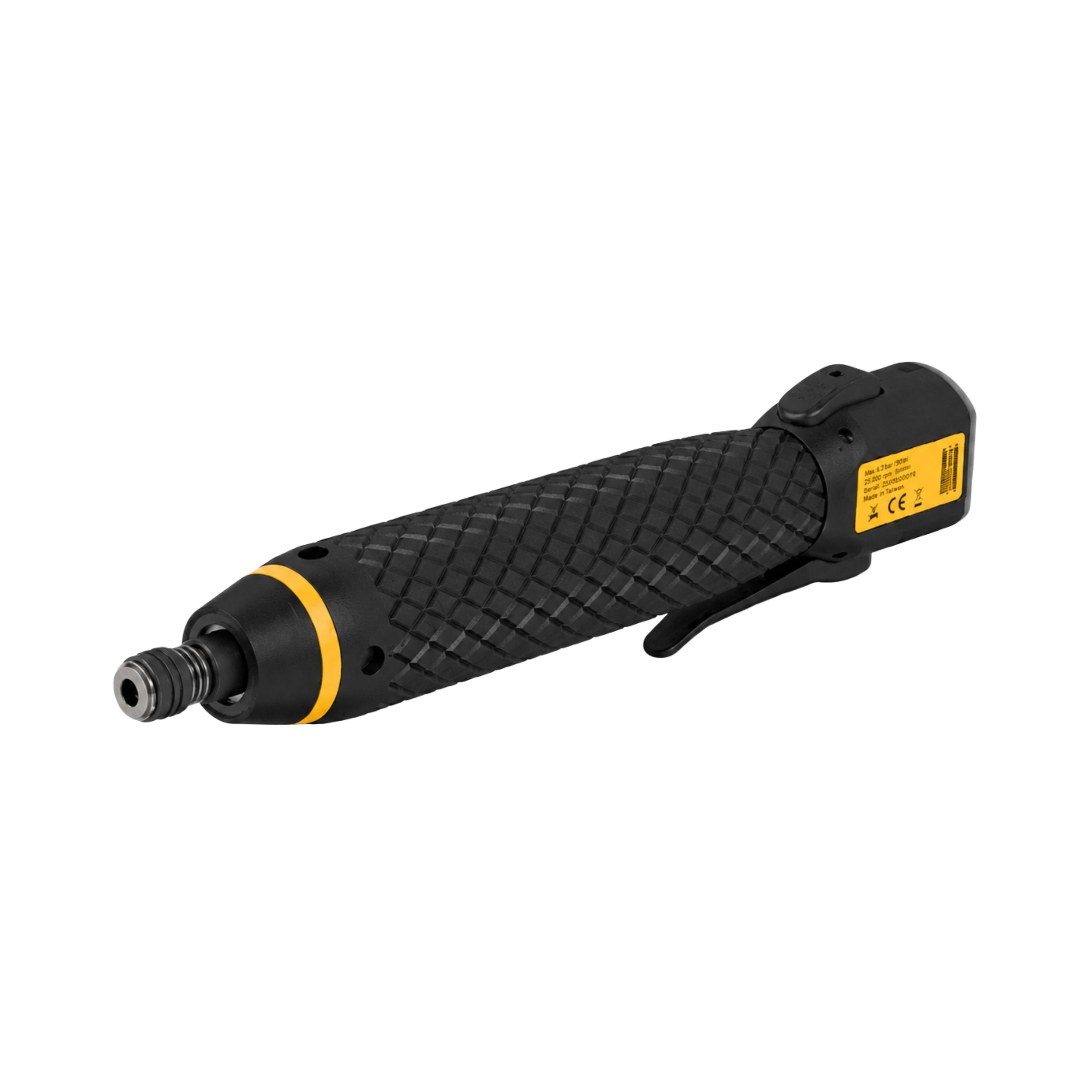

The Atlas Copco ETD M 120 ABL V2 is an industrial electric assembly tool designed for precise and repeatable fastening in professional production environments. It is intended for demanding assembly operations where consistent fastening performance and reliable process execution are required.
Technical Specifications
| Design & Functions | |
|---|---|
| Model Type | Straight |
| Shut-off System | Current control |
| Bit Drive | 1/4 |
| Torque | |
|---|---|
| Torque Range Min | 30 cNm |
| Torque Range Max | 120 cNm |
| Torque Range Min | 2.7 in lb |
| Torque Range Max | 10.6 in lb |
| Speed & Motor | |
|---|---|
| Free Speed | 900 r/min |
| Motor Power | 150 W |
| Motor Voltage | 24 V |
| Motor Voltage Type | d.c. |
| Dimensions & Weight | |
|---|---|
| Length | 240 mm |
| Overall Width | 43 mm |
| Weight | 0.65 kg |
| Weight | 1.43 lb |
| Temperature | |
|---|---|
| Operating Temperature Min | 5 °C |
| Operating Temperature Max | 40 °C |
| Operating Temperature Min | 41 °F |
| Operating Temperature Max | 104 °F |
| Storage Temperature Min | -25 °C |
| Storage Temperature Max | 60 °C |
| Storage Temperature Min | -13 °F |
| Storage Temperature Max | 140 °F |
| Noise & Vibrations | |
|---|---|
| Sound Pressure | <70 dB(A) |
| Sound Standard | ISO15744 |
| Vibration Value | <2.5 m/s2 |
| Vibration Standard | ISO28927-2 |
| Certifications, Standards & Directives | |
|---|---|
| CCC Certified | Yes |
| EAC Certified | Yes |
| KC Certified | Yes |
| KC ID | MSIP-REI-50A-MICROTORQUE |
| EC Standard | EN 55014-1:2006, EN 55014-2:1997, EN 60745-2-2, EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007 |
| EU Directives | 2006/42/EC, 2011/65/EU, 2014/30/EU |
| WEEE | 6 – Electrical and Electronic Tools |
Applications
The Atlas Copco ETD M 120 ABL V2 is intended for industrial assembly and fastening operations requiring a straight tool configuration and a low torque range of 30–120 cNm. Its 900 r/min free speed, 1/4 bit drive and current-control shut-off system provide key selection parameters for production environments where these specifications are required.
Key Features
- Straight electric assembly tool configuration
- Torque range of 30–120 cNm (2.7–10.6 in lb)
- 1/4 bit drive
- Free speed of 900 r/min
- 150 W motor power
- 24 V d.c. motor supply
- Current-control shut-off system
- Tool weight of 0.65 kg (1.43 lb)
- Overall length of 240 mm and width of 43 mm
- Operating temperature range of 5–40 °C (41–104 °F)
- Storage temperature range of -25–60 °C (-13–140 °F)
- Sound pressure below 70 dB(A) according to ISO15744
- Vibration value below 2.5 m/s2 according to ISO28927-2
- CCC, EAC and KC certified
Why Choose the ETD M 120 ABL V2?
The ETD M 120 ABL V2 combines a 30–120 cNm torque range with a straight configuration, 1/4 bit drive and 900 r/min free speed. Its current-control shut-off system, 150 W motor, 24 V d.c. supply and 0.65 kg weight provide useful comparison points when evaluating Atlas Copco electric assembly tools for low-torque fastening requirements.
