ETO ST81-100-24-LI3

The Atlas Copco ETO ST81-100-24-LI3 is an electric assembly tool designed for professional industrial fastening applications where accurate tightening, repeatability, and dependable performance are required. It is suited to demanding manufacturing and production environments where consistent assembly quality is important.
SEO Title
Atlas Copco ETO ST61-40-22-LO3 Tube Nut Electric Assembly Tool
Permalink
eto-st61-40-22-lo3
Meta Description
Atlas Copco ETO ST61-40-22-LO3 tube nut electric assembly tool with 10–40 Nm torque, 655 r/min speed and offset configuration. Request a quote in UAE.
Short Description

• Atlas Copco ETO ST61-40-22-LO3 offset tube nut electric assembly tool for controlled industrial fastening
• Torque range: 10–40 Nm with 1,200 W motor power, 655 r/min speed, and 200 V operation
• Request a quote from Middle East ABC UAE for Atlas Copco electric assembly tools and technical support

intro: ETO ST81-100-24-LI3

The Atlas Copco ETO ST81-100-24-LI3 is an electric assembly tool designed for professional industrial fastening applications where accurate tightening, repeatability, and dependable performance are required. It is suited to demanding manufacturing and production environments where consistent assembly quality is important.

As part of the Atlas Copco ST81 range, the Atlas Copco ETO ST81-100-24-LI3 is developed for controlled electric tightening operations and reliable integration into industrial assembly processes. Its configuration supports professional fastening applications where precision and process consistency are essential.

spec table:

**Model type : **Tube nut
**Torque range min : **39 Nm
**Torque range max : **110 Nm
**Torque range min : **28 ft lb
**Torque range max : **81 ft lb
**Speed : **240 r/min
**Motor power : **1,300 W
**Motor voltage : **200 V
**Weight : **4.6 kg
**Weight : **10.1 lb
**Length : **706 mm
**A : **46 mm
**A/F : **24 mm
**B : **20 mm
**C : **16 mm
**D : **71.3 mm
**E : **50.6 mm
**EC standard : **EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1
**EU directives : **2004/108/EC, 2006/42/EC, 2006/95/EC
**F : **160.4 mm
**G : **64 mm
**H : **77 mm
**J : **20.5 mm
**KC ID : **R-REI-50A-ETVST81
**KC certified : **Yes
**Motor voltage type : **3 a.c.
**R : **33 mm
**R1 : **24.6 mm
**Sound pressure : **<70 dB(A) **Sound standard : **ISO15744 **Tensor : **ST **Tube Nut type : **In-Line **UK legislation : **S.I. 2008/1597, S.I. 2016/1091, S.I. 2016/1101 **UK standard : **EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 **Vibration standard : **ISO28927-2 **Vibration value : **<2.5 m/s² **WEEE : **4 - Large equipment >50cm

Technical Specifications

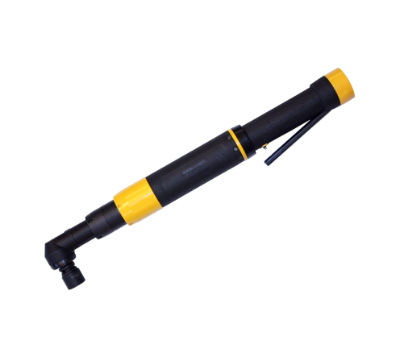

Atlas Copco ETO ST81-100-24-LI3 In-Line Tube Nut Electric Assembly Tool

The Atlas Copco ETO ST81-100-24-LI3 is an in-line tube nut electric assembly tool developed for industrial fastening applications requiring controlled torque and dependable tightening performance. With a torque range of 39–110 Nm, a speed of 240 r/min, and a 1,300 W motor, it is suited to professional production environments where consistent tube nut fastening is required.

Its in-line tube nut configuration is designed for specialized assembly operations involving tube and fitting connections. The tool operates at 200 V with a 3 a.c. motor voltage type and combines a 706 mm overall length with a weight of 4.6 kg.

Applications

The Atlas Copco ETO ST81-100-24-LI3 is suitable for industrial assembly processes where an in-line tube nut tool and controlled tightening within the 39–110 Nm range are required.

• Industrial tube nut fastening operations
• Tube and fitting assembly processes
• Production applications requiring 39–110 Nm torque
• Assembly stations requiring an in-line tube nut configuration
• Professional electric tightening applications requiring consistent fastening performance

Key Features

• 39–110 Nm torque range for controlled industrial tube nut fastening
• In-line tube nut configuration for specialized assembly applications
• 24 mm A/F dimension as specified for the tube nut head configuration
• 240 r/min speed for controlled tightening operations
• 1,300 W motor power with 200 V, 3 a.c. operation
• 706 mm overall length and 4.6 kg tool weight
• Sound pressure below 70 dB(A) according to ISO15744
• Vibration value below 2.5 m/s² according to ISO28927-2

Designed for Controlled Tube Nut Fastening

The ETO ST81-100-24-LI3 combines its dedicated in-line tube nut configuration with a defined torque range of 39–110 Nm. This makes the tool suitable for industrial applications where the geometry of the fastening point requires a tube nut solution rather than a conventional straight or angle assembly tool.

The supplied dimensional specifications, including A/F of 24 mm and the listed A, B, C, D, E, F, G, H, J, R, and R1 dimensions, provide additional technical information for evaluating the tool against a specific assembly station or fastening application.

Related Atlas Copco Electric Assembly Tools

Middle East ABC offers additional Atlas Copco electric fastening tools with different torque ranges, configurations, and application-specific designs. Explore our Atlas Copco Electric Assembly Tools category to compare other models for industrial assembly requirements.

Atlas Copco ETO ST81-100-24-LI3 Supplier in UAE

Middle East ABC supplies Atlas Copco industrial assembly solutions for customers in the UAE. For the Atlas Copco ETO ST81-100-24-LI3, contact our team for product availability, quotation requests, and assistance with selecting an electric assembly tool suitable for your fastening requirements.

Request a Quote for Atlas Copco ETO ST81-100-24-LI3

Request a quotation for the Atlas Copco ETO ST81-100-24-LI3 from Middle East ABC UAE. Provide your application details, required quantity, and technical requirements so our team can assist with the relevant product information and commercial offer.
