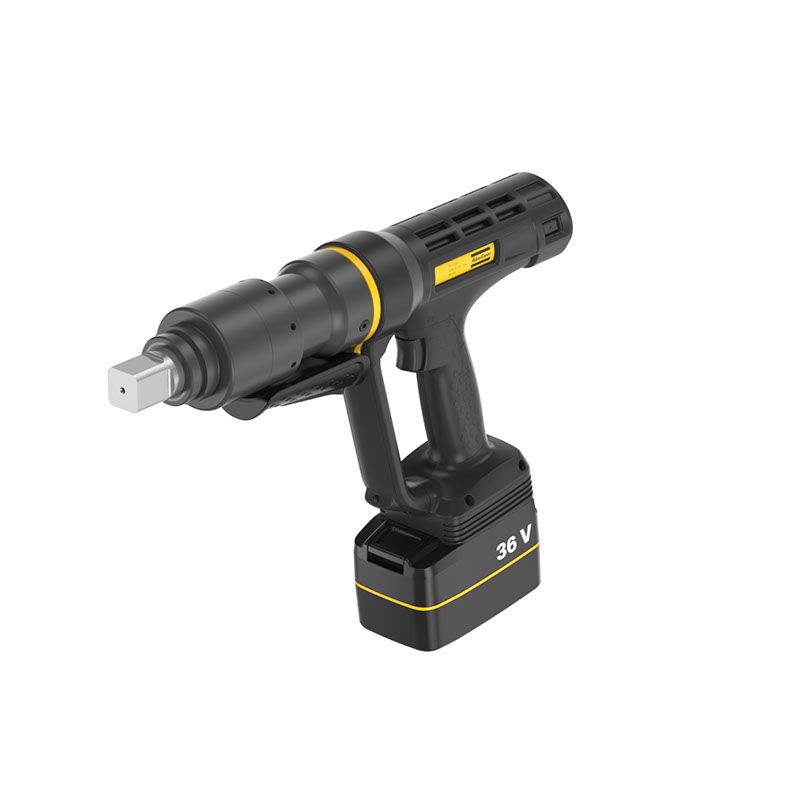

Pistol Battery Nutrunner SRB81: Smart transducerized battery nutrunners with integrated safety. It belongs to the Atlas Copco Cordless Assembly Tools range.
Technical Specifications
| Torque | |
|---|---|
| Torque range max | 553 ft-lb |
| Torque range max | 750 Nm |
| Torque range min | 166 ft-lb |
| Torque range min | 225 Nm |
| Torque scatter 3s | ≤ 5 % |
| Power | |
| Motor power | 1500 W |
| Motor voltage type | d.c. |
| Motor voltage | 36 V |
| Speed | |
| Speed range max | 46 r/min |
| Noise And Vibrations | |
| Sound pressure | <70 dB(A) |
| Sound standard | ISO15744 |
| Vibration standard | ISO28927-2 |
| Vibration value | <2.5 m/s² |
| Battery Information | |
| Battery | Li-Io 36 V |
| Type of battery | 1 Li-ion |
| Weight incl. battery | 5.7 kg |
| Weight incl. battery | 12.6 lb |
| Certifications & standards | |
| CCC certified | No |
| CMIIT ID | 2018AJ0238 |
| EAC certified | Yes |
| EU Legislation | (EU) 2022/30, 2006/42/EC (MD), 2011/65/EU (RoHS), 2014/53/EU (RED), 2015/863/EU (RoHS amendment) |
| EU Standard | EN 18031-1:2024, EN 300 328 V2.2.2, EN 300 440 V2.1.1, EN 301 489-1 V2.1.1, EN 301 489-17 V3.1.1, EN 301 893 V2.1.1, EN 50566:2017, EN 61000-6-2:2005+AC:2005, EN 61000-6-3:2007+A1:2011, EN 61000-6-4:2007+A1:2011, EN 62209-2:2010+AC:2019, EN 62841-1:2015 + AC:2015 + A11:2022, EN 62841-2-2:2014 + AC:2015 |
| ETL control number | 3008099 |
| ETL listed | Yes |
| ETL text | 6 – 62841-2-2 |
| EU SAR value | 0.49 W/kg |
| FCC ID | PVH0965 |
| IC ID | 5325A-0965 |
| KC certified | Yes |
| KC ID | R-R-50A-SRBHA |
| UK Regulations | S.I. 2008/1597, S.I. 2012/3032, S.I. 2017/1206 |
| UK Standard | EN 18031-1:2024, EN 300 328 V2.2.2, EN 300 440 V2.1.1, EN 301 489-1 V2.1.1, EN 301 489-17 V3.1.1, EN 301 893 V2.1.1, EN 50566:2017, EN 61000-6-2:2019, EN 61000-6-3:2007+A1:2011, EN 61000-6-4:2007+A1:2011, EN 62209-2:2010+AC:2019, EN 62841-1:2015 + AC:2015 + A11:2022, EN 62841-2-2:2014 + AC:2015 |
| WEEE | 5 – Small equipment <50cm |
| Design & Functions | |
| Model type | Pistol |
| Output type | Square, Male |
| Shut-off system | Transducer |
| Tool family | SRB |
| Dimension & weight | |
| Height | 239 mm |
| Length | 387 mm |
| Output size | 1" |
| Weight | 4.9 kg |
| Weight | 10.8 lb |
| Width | 74.5 mm |
Benefits
- Minimize risk of injury
- Shows live tightening results
- Simple interface, easy to use
- Setup straight from the box
- Highest volume of tightening’s – per battery
Features
- Transducer
- Data collection
- Dual trigger
- HMI Screen
- Upgradeable
Atlas Copco ETP SRB81-750-25 KIT
ETP SRB81-750-25 KIT (part no. 8433 2504 91) is part of the Atlas Copco Pistol Battery Nutrunner SRB81 range.
Atlas Copco ETP SRB81-750-25 KIT Information
Contact Middle East ABC for technical product information and quotation support for part no. 8433 2504 91 and other Atlas Copco cordless assembly tools.
