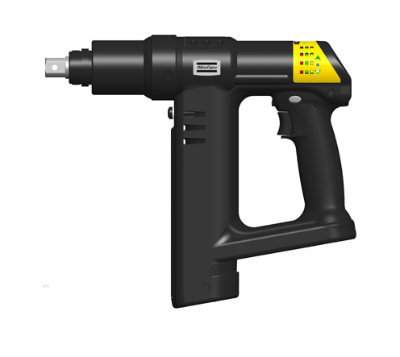

The Atlas Copco ETP ST101-200-F-HAD is an industrial electric assembly tool designed for precise and repeatable fastening operations in professional production environments. It is developed for applications requiring reliable torque control, consistent assembly performance and dependable fastening results across demanding industrial operations.
Technical Specifications
| Design & Functions | |
|---|---|
| Model Type | Pistol |
| Tensor | ST Revo |
| Square Drive | 0/0 inch |
| Spline/Mounting | n/a |
| Torque | |
|---|---|
| Torque Range Min | 60 Nm |
| Torque Range Max | 200 Nm |
| Torque Range Min | 45 ft lb |
| Torque Range Max | 145 ft lb |
| Speed & Motor | |
|---|---|
| Speed | 396 r/min |
| Motor Power | 1,500 W |
| Motor Voltage | 200 V |
| Motor Voltage Type | 3 a.c. |
| Dimensions & Weight | |
|---|---|
| Length | 300 mm |
| CS Distance | 32.5 mm |
| Weight | 5.2 kg |
| Weight | 11.5 lb |
| Noise & Vibrations | |
|---|---|
| Sound Pressure | <70 dB(A) |
| Sound Standard | ISO15744 |
| Vibration Value | <2.5 m/s2 |
| Vibration Standard | ISO28927-2 |
| Certifications, Standards & Directives | |
|---|---|
| EAC Certified | Yes |
| KC Certified | Yes |
| KC ID | R-REI-50A-ETPST101 |
| EC Standard | EN 61010-1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-2:2005, EN 61000-6-3:2007 A1:2011/AC:2012 |
| EU Directives | 2006/42/EC, 2011/65/EU, 2014/30/EU |
| WEEE | 5 – Small equipment <50cm |
Applications
The Atlas Copco ETP ST101-200-F-HAD is a pistol-grip electric assembly tool designed for precise and repeatable fastening operations where controlled torque, reliable process performance and consistent tightening are required. With a torque range of 60–200 Nm and an operating speed of 396 r/min, this model is suited to professional industrial assembly environments requiring dependable fastening performance.
Its Tensor ST Revo configuration, 1,500 W motor and robust pistol design make the ETP ST101-200-F-HAD suitable for repetitive production tasks where fastening accuracy, torque consistency and reliable operation are important.
Key Features
- Pistol-grip electric assembly tool configuration
- Tensor ST Revo platform for controlled industrial fastening
- Torque range from 60 to 200 Nm (45–145 ft lb)
- Operating speed of 396 r/min
- 1,500 W motor with 200 V three-phase AC supply
- Tool weight of 5.2 kg (11.5 lb)
- Compact overall length of 300 mm
- CS distance of 32.5 mm
- Sound pressure below 70 dB(A) according to ISO15744
- Vibration value below 2.5 m/s2 according to ISO28927-2
- EAC and KC certified
Why Choose the Atlas Copco ETP ST101-200-F-HAD?
The ETP ST101-200-F-HAD combines a 60–200 Nm torque range with a 396 r/min operating speed, providing a balanced solution for industrial fastening applications where controlled tightening and efficient production performance are required. Its Tensor ST Revo configuration supports precise and repeatable fastening in professional assembly environments.
The 1,500 W motor and 200 V three-phase AC supply provide the power required for demanding production operations, while the 300 mm overall length and 5.2 kg construction provide a robust platform for repeated industrial use. Its specified low sound pressure and vibration levels further support dependable operation in professional fastening processes.
Related Electric Assembly Tools
Middle East ABC supplies a wide range of Atlas Copco Electric Assembly Tools for different industrial fastening requirements. Explore available models based on torque range, speed, tool configuration and application needs.
Atlas Copco ETP ST101-200-F-HAD Supplier in UAE
Middle East ABC supplies the Atlas Copco ETP ST101-200-F-HAD in the UAE for industrial manufacturing and assembly applications. Contact our team for product availability, technical information and quotation support.
For more information about Atlas Copco industrial assembly solutions, visit the official Atlas Copco Electric Assembly Tools page.
