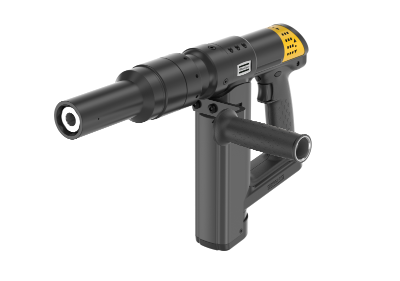

The Atlas Copco ETP ST101-700-F-HAD is a high-torque industrial electric assembly tool designed for precise and repeatable fastening operations in demanding production environments. It is developed for applications requiring reliable torque control, consistent assembly performance and dependable fastening results across professional industrial operations.
Technical Specifications
| Design & Functions | |
|---|---|
| Model Type | Pistol |
| Tensor | ST Revo |
| Square Drive | 0/0 inch |
| Spline/Mounting | n/a |
| Torque | |
|---|---|
| Torque Range Min | 210 Nm |
| Torque Range Max | 700 Nm |
| Torque Range Min | 155 ft lb |
| Torque Range Max | 516 ft lb |
| Speed & Motor | |
|---|---|
| Speed | 133 r/min |
| Motor Power | 1,500 W |
| Motor Voltage | 200 V |
| Motor Voltage Type | 3 a.c. |
| Dimensions & Weight | |
|---|---|
| Length | 420 mm |
| CS Distance | 33.5 mm |
| Weight | 5.9 kg |
| Weight | 13 lb |
| Noise & Vibrations | |
|---|---|
| Sound Pressure | <70 dB(A) |
| Sound Standard | ISO15744 |
| Vibration Value | <2.5 m/s2 |
| Vibration Standard | ISO28927-2 |
| Certifications, Standards & Directives | |
|---|---|
| EAC Certified | Yes |
| KC Certified | No |
| KC ID | na |
| EC Standard | EN 61010-1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-2:2005, EN 61000-6-3:2007 A1:2011/AC:2012 |
| EU Directives | 2006/42/EC, 2011/65/EU, 2014/30/EU |
| UK Legislation | S.I. 2008/1597, S.I. 2012/3032, S.I. 2016/1091 |
| UK Standard | EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-2:2005, EN 61000-6-3:2007 A1:2011/AC:2012, EN 61010-1 |
Applications
The Atlas Copco ETP ST101-700-F-HAD is a high-torque pistol-grip electric assembly tool designed for precise and repeatable fastening operations where controlled torque, reliable process performance and consistent tightening are required. With a torque range of 210–700 Nm and an operating speed of 133 r/min, this model is suited to professional industrial assembly environments requiring dependable fastening results.
Its Tensor ST Revo configuration, 1,500 W motor and robust pistol design make the ETP ST101-700-F-HAD suitable for demanding production tasks where fastening accuracy, torque consistency and reliable operation are important.
Key Features
- High-torque pistol-grip electric assembly tool configuration
- Tensor ST Revo platform for controlled industrial fastening
- Torque range from 210 to 700 Nm (155–516 ft lb)
- Operating speed of 133 r/min
- 1,500 W motor with 200 V three-phase AC supply
- Tool weight of 5.9 kg (13 lb)
- Overall length of 420 mm
- CS distance of 33.5 mm
- Sound pressure below 70 dB(A) according to ISO15744
- Vibration value below 2.5 m/s2 according to ISO28927-2
- EAC certified
Why Choose the Atlas Copco ETP ST101-700-F-HAD?
The ETP ST101-700-F-HAD combines a 210–700 Nm torque range with a 133 r/min operating speed, providing a capable solution for industrial fastening applications where controlled tightening and dependable production performance are required. Its Tensor ST Revo configuration supports precise and repeatable fastening in professional assembly environments.
The 1,500 W motor and 200 V three-phase AC supply provide the power required for demanding fastening operations, while the 420 mm overall length and 5.9 kg construction provide a robust platform for repeated industrial use. Its specified low sound pressure and vibration levels further support reliable operation in professional fastening processes.
Related Electric Assembly Tools
Middle East ABC supplies a wide range of Atlas Copco Electric Assembly Tools for different industrial fastening requirements. Explore available models based on torque range, speed, tool configuration and application needs.
Atlas Copco ETP ST101-700-F-HAD Supplier in UAE
Middle East ABC supplies the Atlas Copco ETP ST101-700-F-HAD in the UAE for industrial manufacturing and assembly applications. Contact our team for product availability, technical information and quotation support.
For more information about Atlas Copco industrial assembly solutions, visit the official Atlas Copco Electric Assembly Tools page.
