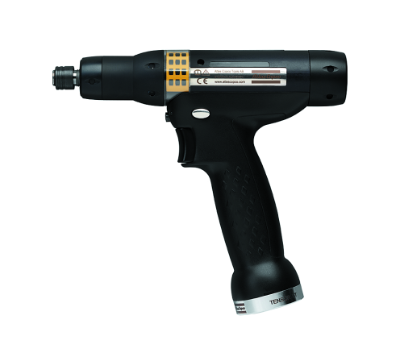

The Atlas Copco ETP ST32-20-10 is an industrial electric assembly tool designed for precise and repeatable fastening operations in professional production environments. It is developed for applications requiring reliable torque control, consistent assembly performance and dependable fastening results across demanding industrial operations.
Technical Specifications
| Design & Functions | |
|---|---|
| Model Type | Pistol |
| Tensor | ST |
| Square Drive | 3/8 inch |
| Torque | |
|---|---|
| Torque Range Min | 5 Nm |
| Torque Range Max | 20 Nm |
| Torque Range Min | 3.6 ft lb |
| Torque Range Max | 15 ft lb |
| Speed & Motor | |
|---|---|
| Speed | 677 r/min |
| Motor Power | 1,400 W |
| Motor Voltage | 200 V |
| Motor Voltage Type | 3 a.c. |
| Dimensions & Weight | |
|---|---|
| Length | 235 mm |
| Height | 179 mm |
| Weight | 0.91 kg |
| Weight | 2 lb |
| Noise & Vibrations | |
|---|---|
| Sound Pressure | <70 dB(A) |
| Sound Standard | ISO15744 |
| Vibration Value | <2.5 m/s2 |
| Vibration Standard | ISO28927-2 |
| Certifications, Standards & Directives | |
|---|---|
| CCC Certified | Yes |
| EAC Certified | Yes |
| KC Certified | No |
| KC ID | na |
| EC Standard | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 |
| EU Directives | 2006/42/EC, 2011/65/EU, 2014/30/EU |
| WEEE | 5 – Small equipment <50cm |
Applications
The Atlas Copco ETP ST32-20-10 is a pistol-grip electric assembly tool designed for precise and repeatable fastening operations where controlled torque, reliable process performance and efficient tightening are required. With a torque range of 5–20 Nm, a 3/8 inch square drive and an operating speed of 677 r/min, this model is suited to professional industrial assembly environments requiring consistent fastening results.
Its Tensor ST configuration, 1,400 W motor and compact pistol design make the ETP ST32-20-10 suitable for repetitive production tasks where fastening accuracy, operator handling and dependable torque control are important.
Key Features
- Pistol-grip electric assembly tool configuration
- Tensor ST platform for controlled industrial fastening
- Torque range from 5 to 20 Nm (3.6–15 ft lb)
- Operating speed of 677 r/min
- 3/8 inch square drive
- 1,400 W motor with 200 V three-phase AC supply
- Lightweight design at 0.91 kg (2 lb)
- Overall length of 235 mm
- Height of 179 mm
- Sound pressure below 70 dB(A) according to ISO15744
- Vibration value below 2.5 m/s2 according to ISO28927-2
- CCC and EAC certified
Why Choose the Atlas Copco ETP ST32-20-10?
The ETP ST32-20-10 combines a 5–20 Nm torque range with a 677 r/min operating speed, providing a practical solution for industrial fastening applications where controlled tightening, repeatability and dependable production performance are required. Its Tensor ST configuration supports consistent fastening processes in professional assembly environments.
The 3/8 inch square drive, compact 235 mm body and low 0.91 kg weight make this model practical for repetitive assembly operations. Combined with its 1,400 W motor, low sound pressure and low vibration level, the tool is designed to support reliable fastening performance in demanding industrial processes.
Related Electric Assembly Tools
Middle East ABC supplies a wide range of Atlas Copco Electric Assembly Tools for different industrial fastening requirements. Explore available models based on torque range, speed, drive size, tool configuration and application needs.
Atlas Copco ETP ST32-20-10 Supplier in UAE
Middle East ABC supplies the Atlas Copco ETP ST32-20-10 in the UAE for industrial manufacturing and assembly applications. Contact our team for product availability, technical information and quotation support.
For more information about Atlas Copco industrial assembly solutions, visit the official Atlas Copco Electric Assembly Tools page.
