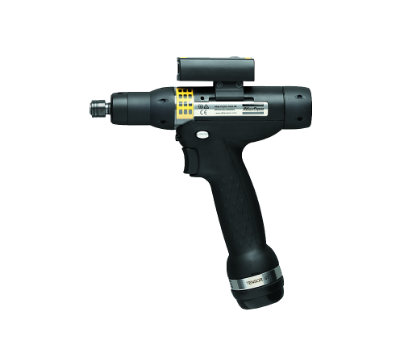

The Atlas Copco ETP ST32-20-I06-BCR is an industrial electric assembly tool designed for precise and repeatable fastening operations in professional production environments. It is developed for applications requiring reliable torque control, consistent assembly performance and dependable fastening results across demanding industrial operations.
Technical Specifications
| Design & Functions | |
|---|---|
| Model Type | Pistol |
| Tensor | ST |
| Square Drive | 1/4 inch |
| Torque | |
|---|---|
| Torque Range Min | 5 Nm |
| Torque Range Max | 20 Nm |
| Torque Range Min | 3.6 ft lb |
| Torque Range Max | 15 ft lb |
| Speed & Motor | |
|---|---|
| Speed | 677 r/min |
| Motor Power | 1,400 W |
| Motor Voltage | 200 V |
| Motor Voltage Type | 3 a.c. |
| Dimensions & Weight | |
|---|---|
| Length | 237 mm |
| Height | 205 mm |
| Weight | 1.03 kg |
| Weight | 2.3 lb |
| Noise & Vibrations | |
|---|---|
| Sound Pressure | <70 dB(A) |
| Sound Standard | ISO15744 |
| Vibration Value | <2.5 m/s2 |
| Vibration Standard | ISO28927-2 |
| Certifications, Standards & Directives | |
|---|---|
| CCC Certified | Yes |
| EAC Certified | Yes |
| KC Certified | No |
| KC ID | na |
| EC Standard | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 |
| EU Directives | 2006/42/EC, 2011/65/EU, 2014/30/EU |
| WEEE | 5 – Small equipment <50cm |
Applications
The Atlas Copco ETP ST32-20-I06-BCR is a pistol-grip electric assembly tool designed for precise and repeatable fastening operations in professional production environments. With a torque range of 5–20 Nm, a 1/4 inch square drive and an operating speed of 677 r/min, it is suited to industrial assembly processes requiring controlled tightening and consistent fastening performance.
Its Tensor ST configuration, 1,400 W motor and pistol design make the ETP ST32-20-I06-BCR suitable for repetitive fastening tasks where dependable torque control, efficient operation and practical tool handling are important.
Key Features
- Pistol-grip electric assembly tool configuration
- Tensor ST platform for controlled industrial fastening
- Torque range from 5 to 20 Nm (3.6–15 ft lb)
- Operating speed of 677 r/min
- 1/4 inch square drive
- 1,400 W motor with 200 V three-phase AC supply
- Tool weight of 1.03 kg (2.3 lb)
- Overall length of 237 mm
- Height of 205 mm
- Sound pressure below 70 dB(A) according to ISO15744
- Vibration value below 2.5 m/s2 according to ISO28927-2
- CCC and EAC certified
Why Choose the Atlas Copco ETP ST32-20-I06-BCR?
The ETP ST32-20-I06-BCR combines a 5–20 Nm torque range with a 677 r/min operating speed, providing a practical solution for industrial fastening applications where controlled tightening, repeatability and reliable production performance are required. Its Tensor ST configuration supports consistent fastening processes in professional assembly environments.
The 1/4 inch square drive, 237 mm overall length and 1.03 kg weight provide a compact configuration for repetitive fastening work. Combined with its 1,400 W motor, sound pressure below 70 dB(A) and vibration value below 2.5 m/s2, the tool is designed to support dependable operation across demanding industrial assembly processes.
Related Electric Assembly Tools
Middle East ABC supplies a wide range of Atlas Copco Electric Assembly Tools for different industrial fastening requirements. Explore available models based on torque range, speed, drive size, tool configuration and application requirements.
Atlas Copco ETP ST32-20-I06-BCR Supplier in UAE
Middle East ABC supplies the Atlas Copco ETP ST32-20-I06-BCR in the UAE for industrial manufacturing and assembly applications. Contact our team for product availability, technical information and quotation support.
