The Atlas Copco ETP STR61-90-13-COT is an industrial electric assembly tool designed for precise and repeatable fastening operations in professional production environments. It is developed for applications requiring reliable torque control, consistent assembly performance and dependable fastening results across demanding industrial operations.
Technical Specifications
| Design & Functions | |
|---|---|
| Model Type | Pistol |
| Tensor | STR |
| Spline/Mounting | 2/2 |
| Torque | |
|---|---|
| Torque Range Min | 20 Nm |
| Torque Range Max | 95 Nm |
| Torque Range Min | 14.7 ft lb |
| Torque Range Max | 70.4 ft lb |
| Speed & Motor | |
|---|---|
| Speed | 450 r/min |
| Motor Power | 1,500 W |
| Motor Voltage | 200 V |
| Motor Voltage Type | 3 a.c. |
| Dimensions & Weight | |
|---|---|
| Length | 350 mm |
| CS Distance | 26.5 mm |
| Weight | 2.4 kg |
| Weight | 5.29 lb |
| Noise & Vibrations | |
|---|---|
| Sound Pressure | <70 dB(A) |
| Sound Standard | ISO15744 |
| Vibration Value | <2.5 m/s2 |
| Vibration Standard | ISO28927-2 |
| Certifications, Standards & Directives | |
|---|---|
| CCC Certified | No |
| CQC Certified | Yes |
| EAC Certified | Yes |
| KC Certified | Yes |
| KC ID | R-REI-50A-ETPSTR61 |
| EC Standard | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-4:2007, EN 61010-1 |
| EU Directives | 2006/42/EC, 2011/65/EU, 2014/30/EU |
| UK Legislation | S.I. 2008/1597, S.I. 2012/3032, S.I. 2016/1091 |
| UK Standard | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-4:2007, EN 61010-1 |
| WEEE | 5 – Small equipment <50cm |
Applications
The Atlas Copco ETP STR61-90-13-COT is a pistol-grip electric assembly tool designed for precise and repeatable fastening operations in professional production environments. With a torque range of 20–95 Nm and an operating speed of 450 r/min, it is suited to industrial assembly processes requiring controlled tightening, consistent fastening performance and dependable process execution.
Its Tensor STR configuration, 1,500 W motor and pistol design make the ETP STR61-90-13-COT suitable for repetitive fastening operations where reliable torque control, efficient operation and consistent assembly results are required.
Key Features
- Pistol-grip electric assembly tool configuration
- Tensor STR platform for industrial fastening
- Torque range from 20 to 95 Nm (14.7–70.4 ft lb)
- Operating speed of 450 r/min
- Spline/Mounting configuration of 2/2
- 1,500 W motor with 200 V three-phase AC supply
- Tool weight of 2.4 kg (5.29 lb)
- Overall length of 350 mm
- CS distance of 26.5 mm
- Sound pressure below 70 dB(A) according to ISO15744
- Vibration value below 2.5 m/s2 according to ISO28927-2
- CQC, EAC and KC certified
Why Choose the Atlas Copco ETP STR61-90-13-COT?
The ETP STR61-90-13-COT combines a 20–95 Nm torque range with a 450 r/min operating speed, providing a capable configuration for industrial fastening applications where controlled tightening, repeatability and reliable production performance are important. Its Tensor STR configuration supports dependable fastening processes in professional assembly environments.
The 1,500 W motor, 350 mm overall length and 2.4 kg weight provide a practical configuration for repetitive fastening operations. Combined with a 2/2 spline/mounting arrangement, CS distance of 26.5 mm, sound pressure below 70 dB(A) and vibration below 2.5 m/s2, the tool is designed to support reliable operation across demanding industrial assembly processes.

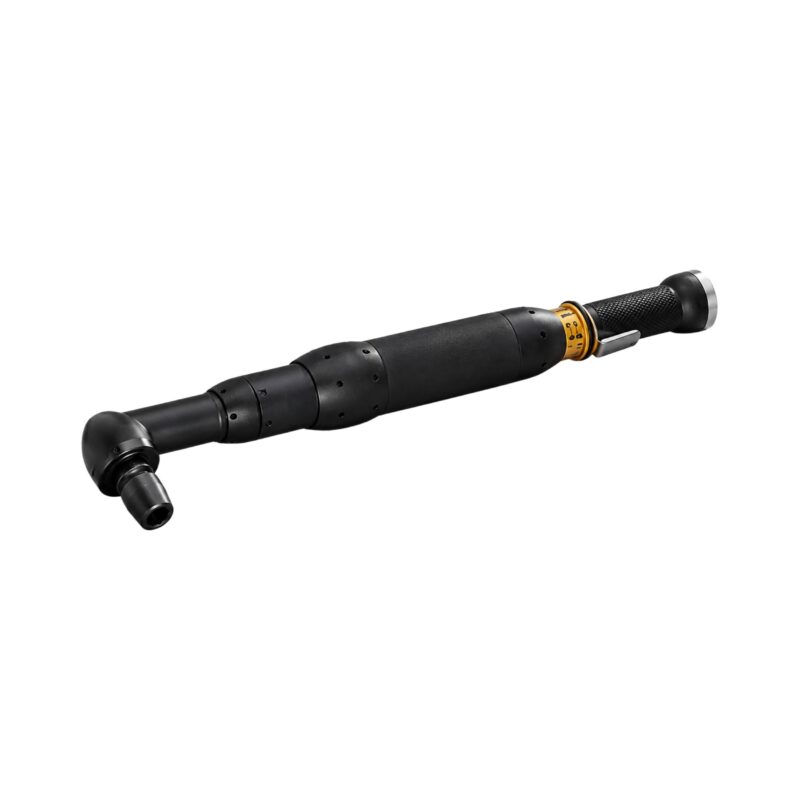

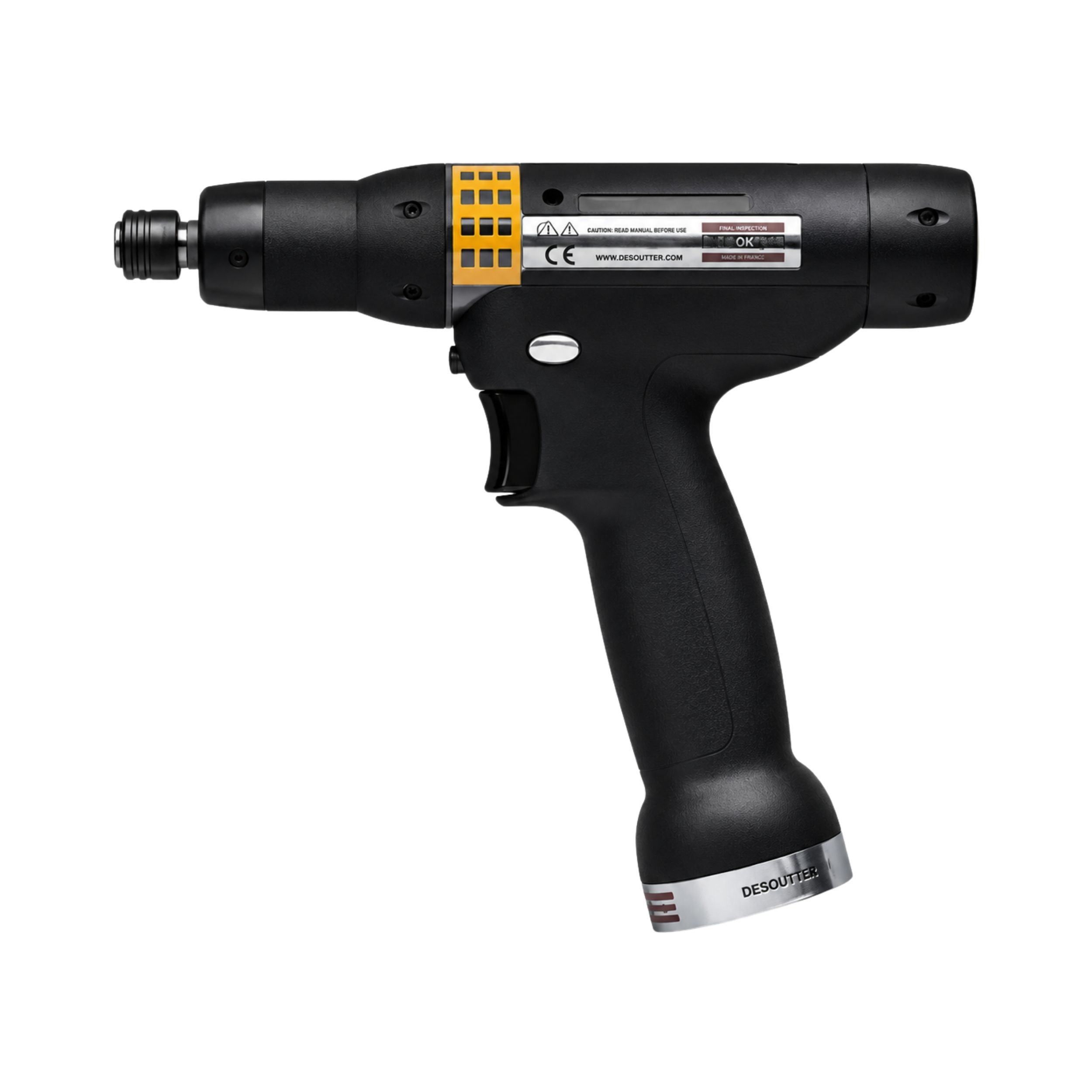

Related Electric Assembly Tools
Middle East ABC supplies a wide range of Atlas Copco Electric Assembly Tools for different industrial fastening requirements. Explore available models based on torque range, speed, mounting configuration, tool type and assembly requirements.
Atlas Copco ETP STR61-90-13-COT Supplier in UAE
Middle East ABC supplies the Atlas Copco ETP STR61-90-13-COT in the UAE for industrial manufacturing and assembly applications. Contact our team for product availability, technical information and quotation support.
For more information about Atlas Copco industrial assembly solutions, visit the official Atlas Copco Electric Assembly Tools page.
