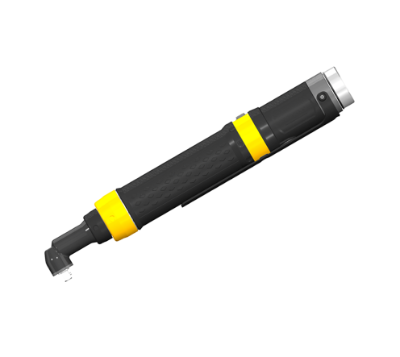

The Atlas Copco ETV ES61-100-13 is an industrial electric assembly tool designed for precise and repeatable fastening operations in professional production environments. It is developed for applications requiring reliable torque control, consistent assembly performance and dependable fastening results across demanding industrial operations.
Technical Specifications
| Design & Functions | |
|---|---|
| Model Type | Angle |
| Tensor | ES |
| Square Drive | 1/2 inch |
| Torque | |
|---|---|
| Torque Range Min | 40 Nm |
| Torque Range Max | 100 Nm |
| Torque Range Min | 29.5 ft lb |
| Torque Range Max | 73.8 ft lb |
| Speed & Motor | |
|---|---|
| Speed | 370 r/min |
| Motor Power | 1,500 W |
| Motor Voltage | 200 V |
| Motor Voltage Type | 3 a.c. |
| Dimensions & Weight | |
|---|---|
| Length | 505 mm |
| CS Distance | 22.5 mm |
| Weight | 3.15 kg |
| Weight | 6.9 lb |
| Noise & Vibrations | |
|---|---|
| Sound Pressure | <70 dB(A) |
| Sound Standard | ISO15744 |
| Vibration Value | <2.5 m/s2 |
| Vibration Standard | ISO28927-2 |
| Certifications, Standards & Directives | |
|---|---|
| CCC Certified | Yes |
| EAC Certified | Yes |
| KC Certified | Yes |
| KC ID | R-REI-50A-ETVES61 |
| EC Standard | EN 61000-6-2, EN 61000-6-4, IEC 61010-1 |
| EU Directives | 2006/42/EC, 2011/65/EU, 2014/30/EU |
| WEEE | 4 – Large equipment >50cm |
Applications
The Atlas Copco ETV ES61-100-13 is an angle electric assembly tool designed for precise and repeatable fastening operations in professional production environments. With a torque range of 40–100 Nm, a 1/2 inch square drive and an operating speed of 370 r/min, it is suited to industrial assembly processes requiring controlled tightening, consistent fastening performance and dependable process execution.
Its Tensor ES configuration, 1,500 W motor and angle design make the ETV ES61-100-13 suitable for repetitive fastening operations where reliable torque control, efficient operation and consistent assembly results are required.
Key Features
- Angle electric assembly tool configuration
- Tensor ES platform for industrial fastening
- Torque range from 40 to 100 Nm (29.5–73.8 ft lb)
- Operating speed of 370 r/min
- 1/2 inch square drive
- 1,500 W motor with 200 V three-phase AC supply
- Tool weight of 3.15 kg (6.9 lb)
- Overall length of 505 mm
- CS distance of 22.5 mm
- Sound pressure below 70 dB(A) according to ISO15744
- Vibration value below 2.5 m/s2 according to ISO28927-2
- CCC, EAC and KC certified
Why Choose the Atlas Copco ETV ES61-100-13?
The ETV ES61-100-13 combines a 40–100 Nm torque range with a 370 r/min operating speed, providing a capable configuration for industrial fastening applications where controlled tightening, repeatability and reliable production performance are important. Its Tensor ES configuration supports dependable fastening processes in professional assembly environments.
The 1/2 inch square drive, 1,500 W motor and angle configuration provide a practical setup for repetitive fastening operations. Combined with a 505 mm overall length, 3.15 kg weight, 22.5 mm CS distance, sound pressure below 70 dB(A) and vibration below 2.5 m/s2, the tool is designed to support reliable operation across demanding industrial assembly processes.
