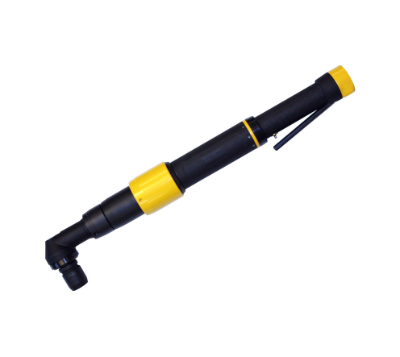

The Atlas Copco ETV ES61-70-B13 is an industrial electric assembly tool designed for precise and repeatable fastening operations in professional production environments. It is developed for applications requiring reliable torque control, consistent assembly performance and dependable fastening results across demanding industrial operations.
Technical Specifications
| Design & Functions | |
|---|---|
| Model type | Angle |
| Tensor | ES |
| Square drive | 1/2 inch |
| Torque | |
|---|---|
| Torque range max | 51.6 ft lb |
| Torque range max | 70 Nm |
| Torque range min | 20.7 ft lb |
| Torque range min | 28 Nm |
| Speed & Motor | |
|---|---|
| Speed | 439 r/min |
| Motor power | 1,500 W |
| Electrical Data | |
|---|---|
| Motor voltage | 200 V |
| Motor voltage type | 3 a.c. |
| Dimensions & Weight | |
|---|---|
| Length | 499 mm |
| CS distance | 20 mm |
| Weight | 3.1 kg |
| Weight | 6.8 lb |
| Noise & Vibrations | |
|---|---|
| Sound pressure | <70 dB(A) |
| Sound standard | ISO15744 |
| Vibration value | <2.5 m/s2 |
| Vibration standard | ISO28927-2 |
| Certifications, Standards & Directives | |
|---|---|
| CCC certified | Yes |
| EAC certified | Yes |
| KC certified | Yes |
| KC ID | R-REI-50A-ETVES61 |
| EC standard | EN 61000-6-2, EN 61000-6-4, IEC 61010-1 |
| EU directives | 2006/42/EC, 2011/65/EU, 2014/30/EU |
| Transport Information | |
|---|---|
| WEEE | 5 – Small equipment <50cm |
Applications
The Atlas Copco ETV ES61-70-B13 is designed for industrial fastening operations requiring controlled torque within a 28–70 Nm range. Its Angle model configuration and 1/2 inch square drive make it suitable for assembly tasks where this torque capacity, output configuration and operating speed are required.
As a Tensor ES electric assembly tool, the ETV ES61-70-B13 operates at 439 r/min and uses a 1,500 W motor with a 200 V, 3 a.c. supply. These specifications support precise and repeatable fastening in professional production and assembly environments.
Key Features
- Tensor ES electric assembly tool
- Angle model configuration
- 28–70 Nm torque range
- 20.7–51.6 ft lb torque range
- 439 r/min operating speed
- 1/2 inch square drive
- 1,500 W motor power
- 200 V, 3 a.c. motor supply
- 499 mm overall length
- 20 mm CS distance
- 3.1 kg / 6.8 lb weight
- Sound pressure below 70 dB(A) according to ISO15744
- Vibration value below 2.5 m/s2 according to ISO28927-2
- CCC, EAC and KC certified
- Complies with EN 61000-6-2, EN 61000-6-4 and IEC 61010-1 standards
Why Choose the Atlas Copco ETV ES61-70-B13?
The Atlas Copco ETV ES61-70-B13 combines a 28–70 Nm torque range with a 439 r/min speed and 1/2 inch square drive. Its Angle configuration provides a defined tool format for industrial fastening applications requiring these specific torque, speed and output characteristics.
The tool uses a 1,500 W motor operating at 200 V with a 3 a.c. voltage type. With a length of 499 mm, a CS distance of 20 mm and a weight of 3.1 kg, its dimensional and operating specifications can be evaluated against individual assembly requirements. The model is also CCC, EAC and KC certified and is specified with sound pressure below 70 dB(A) and vibration below 2.5 m/s2.
Related Electric Assembly Tools
Middle East ABC supplies a wide range of Atlas Copco Electric Assembly Tools for different industrial fastening requirements. Explore available models based on torque range, speed, angle configuration, tool type and assembly requirements.
Atlas Copco ETV ES61-70-B13 Supplier in UAE
Middle East ABC supplies the Atlas Copco ETV ES61-70-B13 in the UAE for industrial manufacturing and assembly applications. Contact our team for product availability, technical information and quotation support.
For more information about Atlas Copco industrial assembly solutions, visit the official Atlas Copco Electric Assembly Tools page.
