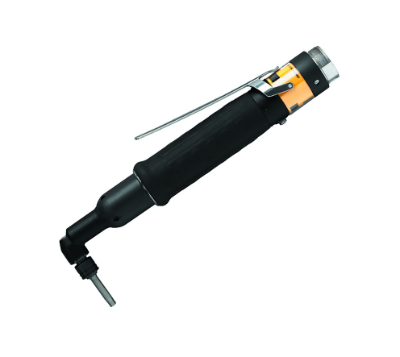

The Atlas Copco ETV SL21-07-I06 is an industrial electric assembly tool designed for precise and repeatable fastening operations in professional production environments. It is developed for applications requiring reliable torque control, consistent assembly performance and dependable fastening results across demanding industrial operations.
Technical Specifications
| Design & Functions | |
|---|---|
| Model type | Angle |
| Tensor | SL |
| Shut-off system | Transducer |
| Torque | |
|---|---|
| Torque range min | 1.5 Nm |
| Torque range max | 7.5 Nm |
| Torque range min | 13 in lb |
| Torque range max | 66 in lb |
| Speed & Motor | |
|---|---|
| Speed | 970 r/min |
| Motor power | 140 W |
| Electrical Data | |
|---|---|
| Motor voltage | 35 V |
| Motor voltage type | 3 a.c. |
| Dimensions & Weight | |
|---|---|
| Length | 265 mm |
| CS distance | 9 mm |
| Weight | 0.75 kg |
| Weight | 1.7 lb |
| Noise & Vibrations | |
|---|---|
| Sound pressure | <70 dB(A) |
| Sound standard | ISO15744 |
| Vibration value | <2.5 m/s2 |
| Vibration standard | ISO28927-2 |
| Certifications, Standards & Directives | |
|---|---|
| CCC certified | No |
| CQC certified | Yes |
| EAC certified | Yes |
| KC certified | Yes |
| KC ID | R-REI-50AETDSL21 |
| Standard EC | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 |
| EU Directives | 2006/42/EC, 2011/65/EU, 2014/30/EU |
| Transport Information | |
|---|---|
| WEEE | 5 – Small equipment <50cm |
Applications
The Atlas Copco ETV SL21-07-I06 is designed for industrial fastening operations requiring controlled torque within a 1.5–7.5 Nm range. Its Angle model configuration and transducer shut-off system make it suitable for assembly tasks where these torque and control characteristics are required.
As a Tensor SL electric assembly tool, the ETV SL21-07-I06 operates at 970 r/min and uses a 140 W motor with a 35 V, 3 a.c. supply. These specifications support precise and repeatable fastening in professional production and assembly environments.
Key Features
- Tensor SL electric assembly tool
- Angle model configuration
- Transducer shut-off system
- 1.5–7.5 Nm torque range
- 13–66 in lb torque range
- 970 r/min operating speed
- 140 W motor power
- 35 V, 3 a.c. motor supply
- 265 mm overall length
- 9 mm CS distance
- 0.75 kg / 1.7 lb weight
- Sound pressure below 70 dB(A) according to ISO15744
- Vibration value below 2.5 m/s2 according to ISO28927-2
- CQC, EAC and KC certified
- CCC certified: No
- Complies with EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007 and EN 61010-1 standards
Why Choose the Atlas Copco ETV SL21-07-I06?
The Atlas Copco ETV SL21-07-I06 combines a 1.5–7.5 Nm torque range with a 970 r/min speed and transducer shut-off system. Its Angle configuration provides a defined tool format for industrial fastening applications requiring these specific torque, speed and control characteristics.
The tool uses a 140 W motor operating at 35 V with a 3 a.c. voltage type. With a length of 265 mm, a CS distance of 9 mm and a weight of 0.75 kg, its dimensional and operating specifications can be evaluated against individual assembly requirements. The model is CQC, EAC and KC certified and is specified with sound pressure below 70 dB(A) and vibration below 2.5 m/s2.
