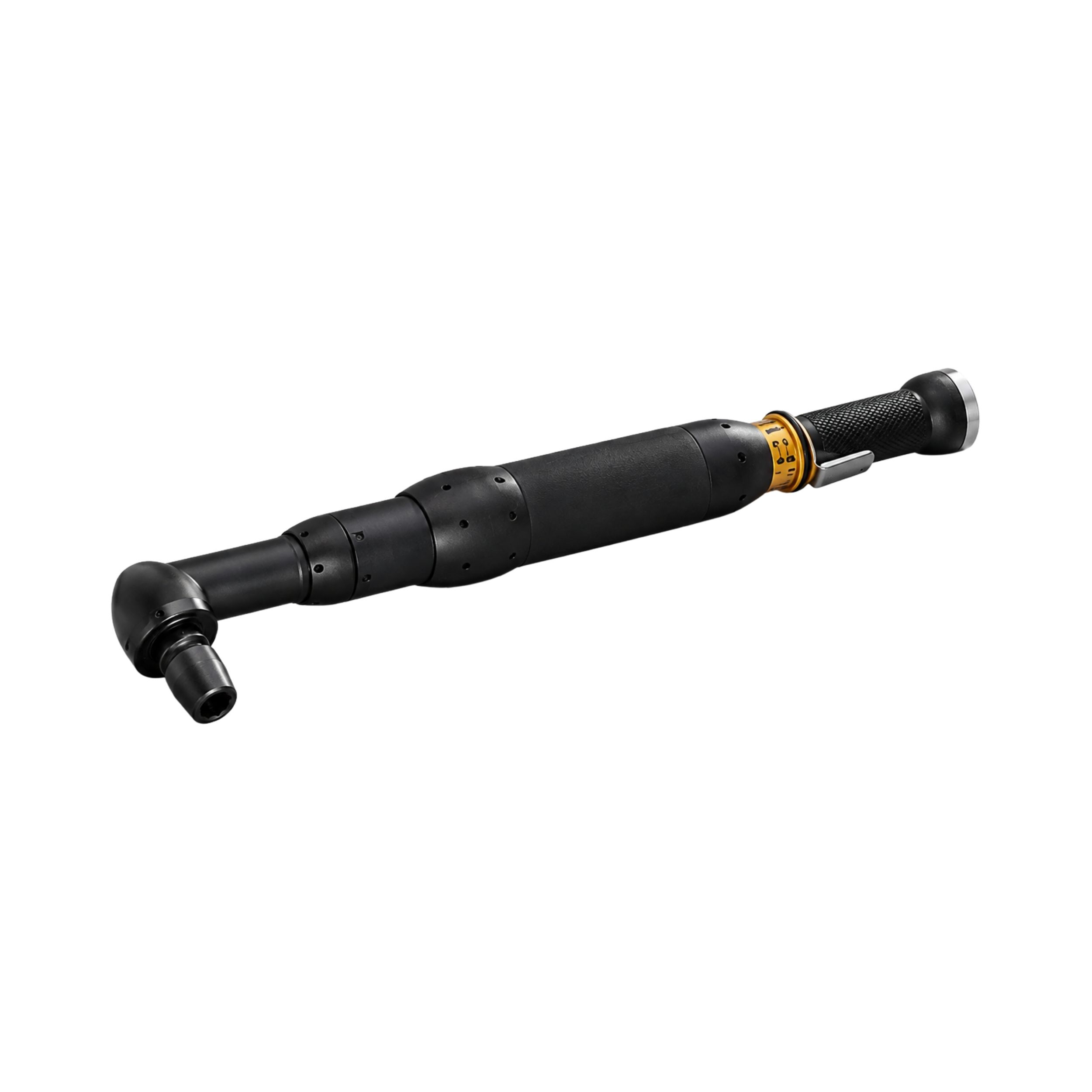

The Atlas Copco ETV ST101-100-13-F is an industrial electric assembly tool designed for precise and repeatable fastening operations in professional production environments. It is developed for applications requiring reliable torque control, consistent assembly performance and dependable fastening results across demanding industrial operations.
Technical Specifications
| Design & Functions | |
|---|---|
| Model type | Angle |
| Tensor | ST |
| Square drive | 1/2 inch |
| Torque | |
|---|---|
| Torque range max | 100 Nm |
| Torque range min | 20 Nm |
| Torque range max | 74 ft lb |
| Torque range min | 15 ft lb |
| Speed & Motor | |
|---|---|
| Speed | 920 r/min |
| Motor power | 1,500 W |
| Electrical Data | |
|---|---|
| Motor voltage | 200 V |
| Motor voltage type | 3 a.c. |
| Dimensions & Weight | |
|---|---|
| Length | 572 mm |
| Height | 44 mm |
| CS distance | 23 mm |
| Weight | 4.2 kg |
| Weight | 9.3 lb |
| Noise & Vibrations | |
|---|---|
| Sound pressure | <70 dB(A) |
| Sound standard | ISO15744 |
| Vibration value | <2.5 m/s2 |
| Vibration standard | ISO28927-2 |
| Certifications, Standards & Directives | |
|---|---|
| CCC certified | Yes |
| KC certified | Yes |
| KC ID | R-REI-50A-ETVST101 |
| EAC certified | Yes |
| EC standard | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 |
| EU directives | 2006/42/EC, 2011/65/EU, 2014/30/EU |
| Transport Information | |
|---|---|
| WEEE | 4 – Large equipment >50cm |
Applications
The Atlas Copco ETV ST101-100-13-F is designed for industrial fastening operations requiring controlled torque within a 20–100 Nm range. Its Angle model configuration and 1/2 inch square drive make it suitable for assembly tasks where these torque, output and operating characteristics are required.
As a Tensor ST electric assembly tool, the ETV ST101-100-13-F operates at 920 r/min and uses a 1,500 W motor with a 200 V, 3 a.c. supply. These specifications support precise and repeatable fastening in professional production and assembly environments.
Key Features
- Tensor ST electric assembly tool
- Angle model configuration
- 20–100 Nm torque range
- 15–74 ft lb torque range
- 920 r/min operating speed
- 1/2 inch square drive
- 1,500 W motor power
- 200 V, 3 a.c. motor supply
- 572 mm overall length
- 44 mm height
- 23 mm CS distance
- 4.2 kg / 9.3 lb weight
- Sound pressure below 70 dB(A) according to ISO15744
- Vibration value below 2.5 m/s2 according to ISO28927-2
- CCC, EAC and KC certified
- Complies with EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007 and EN 61010-1 standards
Why Choose the Atlas Copco ETV ST101-100-13-F?
The Atlas Copco ETV ST101-100-13-F combines a 20–100 Nm torque range with a 920 r/min speed and 1/2 inch square drive. Its Angle configuration provides a defined tool format for industrial fastening applications requiring these specific torque, speed and output characteristics.
The tool uses a 1,500 W motor operating at 200 V with a 3 a.c. voltage type. With a length of 572 mm, a height of 44 mm, a CS distance of 23 mm and a weight of 4.2 kg, its dimensional and operating specifications can be evaluated against individual assembly requirements. The model is CCC, EAC and KC certified and is specified with sound pressure below 70 dB(A) and vibration below 2.5 m/s2.
