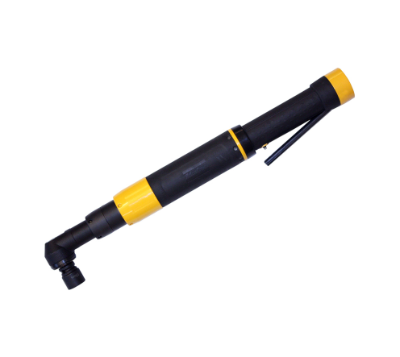

The Atlas Copco ETV ST101-200-INTEL is an industrial electric assembly tool designed for precise and repeatable fastening operations in professional production environments. It is developed for applications requiring reliable torque control, consistent assembly performance and dependable fastening results across demanding industrial operations.
Technical Specifications
| Design & Functions | |
|---|---|
| Model type | Angle |
| Tensor | ST |
| Square drive | 1/2 inch |
| Torque | |
|---|---|
| Torque range min | 50 Nm |
| Torque range max | 200 Nm |
| Torque range min | 37 ft lb |
| Torque range max | 147 ft lb |
| Speed & Motor | |
|---|---|
| Speed | 485 r/min |
| Motor power | 1,500 W |
| Electrical Data | |
|---|---|
| Motor voltage | 200 V |
| Motor voltage type | 3 a.c. |
| Dimensions & Weight | |
|---|---|
| Length | 602 mm |
| Height | 90 mm |
| CS distance | 28 mm |
| Weight | 4.8 kg |
| Weight | 10.6 lb |
| Noise & Vibrations | |
|---|---|
| Sound pressure | <70 dB(A) |
| Sound standard | ISO15744 |
| Vibration value | <2.5 m/s2 |
| Vibration standard | ISO28927-2 |
| Certifications, Standards & Directives | |
|---|---|
| CCC certified | No |
| CQC certified | Yes |
| EAC certified | Yes |
| KC certified | Yes |
| KC ID | R-REI-50A-ETVST101 |
| EC standard | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 |
| EU directives | 2006/42/EC, 2011/65/EU, 2014/30/EU |
| UK legislation | S.I. 2008/1597, S.I. 2012/3032, S.I. 2016/1091 |
| UK standard | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 |
| Transport Information | |
|---|---|
| WEEE | 4 – Large equipment >50cm |
