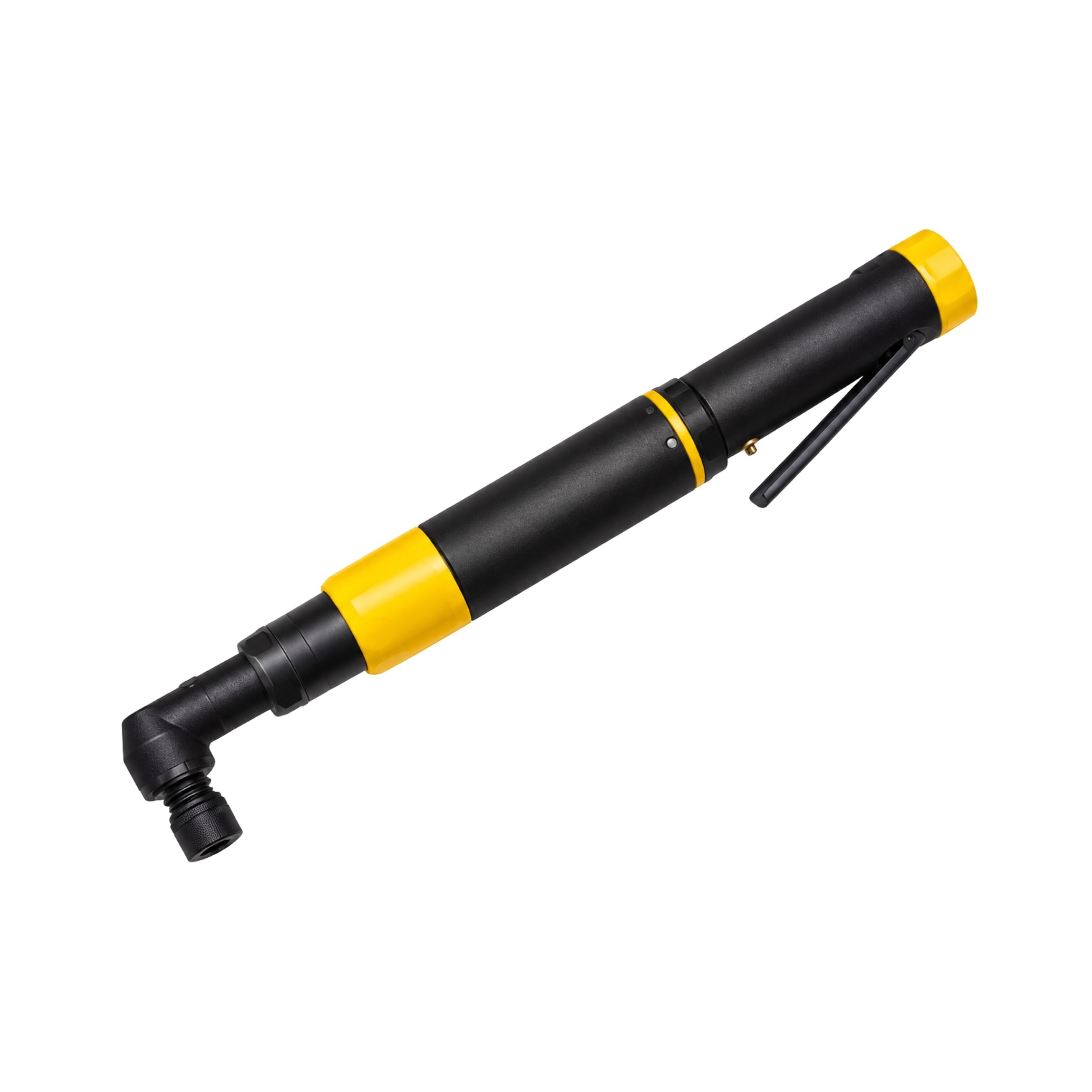

The Atlas Copco ETV ST81-100-13 is an industrial electric assembly tool designed for precise and repeatable fastening operations in professional production environments. It is developed for applications requiring reliable torque control, consistent assembly performance and dependable fastening results across demanding industrial operations.
Technical Specifications
| Design & Functions | |
|---|---|
| Model type | Angle |
| Tensor | ST |
| Square drive | 1/2 inch |
| Torque | |
|---|---|
| Torque range max | 100 Nm |
| Torque range min | 20 Nm |
| Torque range max | 80 ft lb |
| Torque range min | 15 ft lb |
| Speed & Motor | |
|---|---|
| Speed | 540 r/min |
| Motor power | 1,500 W |
| Electrical Data | |
|---|---|
| Motor voltage | 200 V |
| Motor voltage type | 3 a.c. |
| Dimensions & Weight | |
|---|---|
| Length | 522 mm |
| Height | 60 mm |
| CS distance | 22.5 mm |
| Weight | 2.7 kg |
| Weight | 5.9 lb |
| Noise & Vibrations | |
|---|---|
| Sound pressure | <70 dB(A) |
| Sound standard | ISO15744 |
| Vibration value | <2.5 m/s2 |
| Vibration standard | ISO28927-2 |
| Certifications, Standards & Directives | |
|---|---|
| CCC certified | Yes |
| KC certified | No |
| KC ID | na |
| EAC certified | Yes |
| EC standard | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 |
| EU directives | 2006/42/EC, 2011/65/EU, 2014/30/EU |
| Transport Information | |
|---|---|
| WEEE | 4 – Large equipment >50cm |
Applications
The Atlas Copco ETV ST81-100-13 is designed for industrial fastening operations requiring controlled torque within a 20–100 Nm range. Its Angle model configuration and 1/2 inch square drive make it suitable for professional assembly tasks where these torque, drive and operating characteristics are required.
As a Tensor ST electric assembly tool, the ETV ST81-100-13 operates at 540 r/min and uses a 1,500 W motor with a 200 V, 3 a.c. supply. These specifications support precise and repeatable fastening in professional production and assembly environments.
Key Features
- Tensor ST electric assembly tool
- Angle model configuration
- 20–100 Nm torque range
- 15–80 ft lb torque range
- 540 r/min operating speed
- 1/2 inch square drive
- 1,500 W motor power
- 200 V, 3 a.c. motor supply
- 522 mm overall length
- 60 mm height
- 22.5 mm CS distance
- 2.7 kg / 5.9 lb weight
- Sound pressure below 70 dB(A) according to ISO15744
- Vibration value below 2.5 m/s2 according to ISO28927-2
- CCC and EAC certified
- Complies with EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007 and EN 61010-1 standards
Why Choose the Atlas Copco ETV ST81-100-13?
The Atlas Copco ETV ST81-100-13 combines a 20–100 Nm torque range with a 540 r/min operating speed and 1/2 inch square drive. Its Angle configuration provides a defined tool format for industrial fastening applications requiring these specific torque, speed and drive characteristics.
The tool uses a 1,500 W motor operating at 200 V with a 3 a.c. voltage type. It measures 522 mm in length and 60 mm in height, has a 22.5 mm CS distance and weighs 2.7 kg. The model is CCC and EAC certified, while the supplied data specifies KC certification as No. Sound pressure is below 70 dB(A), and vibration is below 2.5 m/s2.
