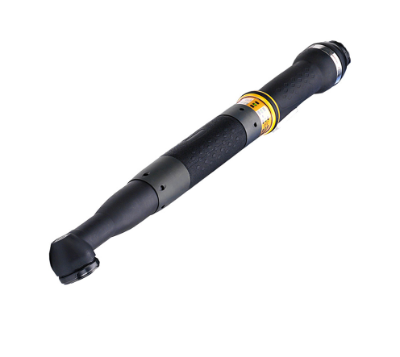

The Atlas Copco ETV ST81-70-FS is an industrial electric assembly tool designed for precise and repeatable fastening operations in professional production environments. It is developed for applications requiring reliable torque control, consistent assembly performance and dependable fastening results across demanding industrial operations.
Technical Specifications
Design & Functions
| Model type | Angle |
| Tensor | ST |
| Front part interface | 70 FS |
Torque
| Torque range max | 80 Nm |
| Torque range min | 20 Nm |
| Torque range max | 58 ft lb |
| Torque range min | 15 ft lb |
Speed & Motor
| Speed | 790 r/min |
| Motor power | 1,500 W |
Electrical Data
| Motor voltage | 200 V |
| Motor voltage type | 3 a.c. |
Dimensions & Weight
| Weight | 2.3 kg |
| Weight | 5 lb |
Noise & Vibrations
| Sound pressure | <70 dB(A) |
| Sound standard | ISO15744 |
| Vibration value | <2.5 m/s2 |
| Vibration standard | ISO28927-2 |
Certifications, Standards & Directives
| CCC certified | Yes |
| KC ID | R-REI-50A-ETVST81 |
| KC certified | Yes |
| EAC certified | Yes |
| EC standard | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1 |
| EU directives | 2004/108/EC, 2006/42/EC, 2006/95/EC |
Transport Information
| WEEE | 4 – Large equipment >50cm |
Atlas Copco ETV ST81-70-FS Description
The Atlas Copco ETV ST81-70-FS is an Angle electric assembly tool with a torque range of 20–80 Nm (15–58 ft lb). As a Tensor ST electric assembly tool, the ETV ST81-70-FS operates at 790 r/min with a 1,500 W motor and 200 V motor voltage. Its Angle model configuration and 70 FS front part interface provide the specified tool configuration for industrial assembly requirements.
The tool weighs 2.3 kg (5 lb). Sound pressure is rated at <70 dB(A) according to ISO15744, while vibration is rated at <2.5 m/s2 according to ISO28927-2.
Applications
The Atlas Copco ETV ST81-70-FS can be selected for industrial assembly requirements where its 20–80 Nm torque range, 790 r/min speed, Angle configuration and 70 FS front part interface match the required fastening process.
Key Features
- Angle model configuration
- Tensor ST
- Torque range: 20–80 Nm
- Torque range: 15–58 ft lb
- Speed: 790 r/min
- Motor power: 1,500 W
- Motor voltage: 200 V
- Motor voltage type: 3 a.c.
- Front part interface: 70 FS
- Weight: 2.3 kg / 5 lb
- Sound pressure: <70 dB(A)
- Vibration value: <2.5 m/s2
- CCC certified: Yes
- KC certified: Yes
- KC ID: R-REI-50A-ETVST81
- EAC certified: Yes
Why Choose the Atlas Copco ETV ST81-70-FS?
The Atlas Copco ETV ST81-70-FS combines a 20–80 Nm torque range with 790 r/min speed, a 1,500 W motor and 70 FS front part interface. Its supplied technical data also includes a 2.3 kg weight and Tensor ST configuration.
The model is CCC, KC and EAC certified. Its supplied EC standards include EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007 and EN 61010-1. The listed EU directives are 2004/108/EC, 2006/42/EC and 2006/95/EC.
