Technical Specifications
| Design & Functions | |
|---|---|

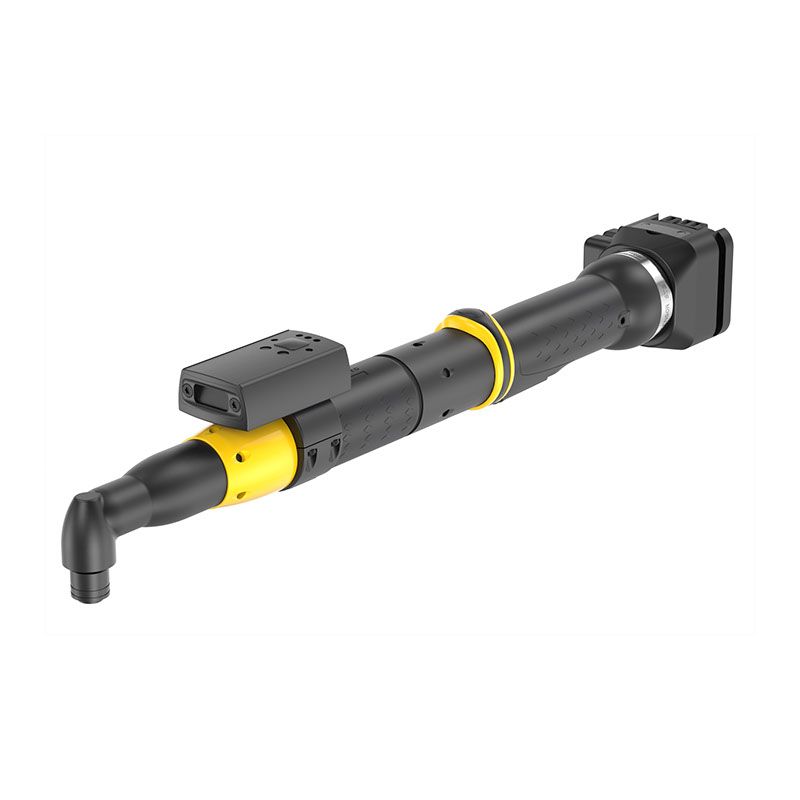

| Model type | Angle |
| Square drive | 3/8 inch |
| Shut-off system | Transducer |
| Tensor | STB |
| Torque | |
|---|---|
| Torque range min | 15 Nm |
| Torque range max | 50 Nm |
| Torque range min | 10 ft lb |
| Torque range max | 37 ft lb |
| Speed | |
|---|---|
| Free speed 9.6 V | 365 r/min |
| Battery & Motor | |
|---|---|
| Battery | Li-Io 30 V |
| Type of battery | n/a |
| Material contains a battery | No |
| Motor power | 1,500 W |
| Motor voltage | 30 V |
| Connectivity | |
|---|---|
| Communication type | W-LAN |
| FCC ID | PVH0941 |
| IC ID | 5325A-0941 |
| CMIIT ID | 2014AJ1502 |
| Noise & Vibrations | |
|---|---|
| Sound pressure | <70 dB(A) |
| Sound standard | ISO15744 |
| Vibration value | <2.5 m/s2 |
| Vibration standard | ISO28927-2 |
| Dimension & Weight | |
|---|---|
| Length | 507.8 mm |
| Height | 47.3 mm |
| Weight | 1.95 kg |
| Weight | 4.3 lb |
| Weight incl. bat. | 2.9 kg |
| Weight incl. bat. | 6.4 lb |
| Certifications, Standards & Directives | |
|---|---|
| EAC certified | Yes |
| EC standard | EN 300 328 V2.1.1, EN 300 440 V2.1.1, EN 301 489-1 V2.1.1, EN 301 489-17 V3.1.1, EN 55014-1:2017, EN 55014-2:2015, EN 61000-6-2:2005+AC:2005, EN 61000-6-4:2007+A1:2011, EN 62841-1:2015, EN 62841-2-2:2014 + AC:2015 |
| ETL control number | 3008099 |
| ETL listed | Yes |
| ETL text | 1 – 60745-1, -2-2 |
| EU directives | 2014/53/EU, 2014/30/EU, 2006/42/EC, 2011/65/EU |
| WEEE | 4 – Large equipment >50cm |
| KC certified | Yes |
| KC ID | R-CRI-50A-STB |
