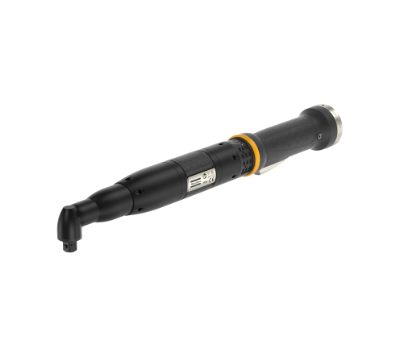

The Atlas Copco ETV STR31-10-10 is an industrial electric assembly tool designed for precise and repeatable fastening operations in professional production environments. It is developed for applications requiring reliable torque control, consistent assembly performance and dependable fastening results across demanding industrial operations.
Technical Specifications
Design & Functions
| Model type | Angle |
| Tensor | STR |
| Square drive | 3/8 inch |
Torque
| Torque range max | 12 Nm |
| Torque range min | 3 Nm |
| Torque range max | 8.8 ft lb |
| Torque range min | 2.2 ft lb |
Speed & Motor
| Speed | 1,310 r/min |
| Motor power | 1,500 W |
Electrical Data
| Motor voltage | 200 V |
| Motor voltage type | 3 a.c. |
Dimensions & Weight
| Weight | 1.1 kg |
| Weight | 2.4 lb |
| Length | 381 mm |
| CS distance | 11 mm |
| Height | 42 mm |
Noise & Vibrations
| Sound pressure | <70 dB(A) |
| Sound standard | ISO15744 |
| Vibration value | <2.5 m/s2 |
| Vibration standard | ISO28927-2 |
Certifications, Standards & Directives
| CCC certified | Yes |
| KC ID | R-REI-50A-ETVSTR31 |
| KC certified | Yes |
| EAC certified | Yes |
| EC standard | EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61010-1 |
| EU directives | 2006/42/EC, 2011/65/EU, 2014/30/EU |
Transport Information
| WEEE | 5 – Small equipment <50cm |
Atlas Copco ETV STR31-10-10 Description
The Atlas Copco ETV STR31-10-10 is an Angle electric assembly tool with a torque range of 3–12 Nm (2.2–8.8 ft lb). As a Tensor STR electric assembly tool, the ETV STR31-10-10 operates at 1,310 r/min with a 1,500 W motor and 200 V motor voltage. Its Angle model configuration and 3/8 inch square drive provide the specified tool configuration for industrial assembly requirements.
The tool weighs 1.1 kg (2.4 lb), with a length of 381 mm, CS distance of 11 mm and height of 42 mm. Sound pressure is rated at <70 dB(A) according to ISO15744, while vibration is rated at <2.5 m/s2 according to ISO28927-2.
Applications
The Atlas Copco ETV STR31-10-10 can be selected for industrial assembly requirements where its 3–12 Nm torque range, 1,310 r/min speed, Angle configuration and 3/8 inch square drive match the required fastening process.
Key Features
- Angle model configuration
- Tensor STR
- Torque range: 3–12 Nm
- Torque range: 2.2–8.8 ft lb
- Speed: 1,310 r/min
- Motor power: 1,500 W
- Motor voltage: 200 V
- Motor voltage type: 3 a.c.
- Square drive: 3/8 inch
- Weight: 1.1 kg / 2.4 lb
- Length: 381 mm
- CS distance: 11 mm
- Height: 42 mm
- Sound pressure: <70 dB(A)
- Vibration value: <2.5 m/s2
- CCC certified: Yes
- KC certified: Yes
- KC ID: R-REI-50A-ETVSTR31
- EAC certified: Yes
Why Choose the Atlas Copco ETV STR31-10-10?
The Atlas Copco ETV STR31-10-10 combines a 3–12 Nm torque range with 1,310 r/min speed, a 1,500 W motor and 3/8 inch square drive. Its supplied technical data also includes a 1.1 kg weight, 381 mm length and Tensor STR configuration.
The model is CCC, KC and EAC certified. Its supplied EC standards include EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005 and EN 61010-1. The listed EU directives are 2006/42/EC, 2011/65/EU and 2014/30/EU.
Related Electric Assembly Tools
Middle East ABC supplies a wide range of Atlas Copco Electric Assembly Tools for different industrial fastening requirements. Explore available models based on torque range, speed, square drive, tool type and assembly requirements.
Atlas Copco ETV STR31-10-10 Supplier in UAE
Middle East ABC supplies the Atlas Copco ETV STR31-10-10 in UAE for customers looking for Atlas Copco electric assembly tools and quotation support. Contact Middle East ABC to request pricing and availability for this model.
For more information about Atlas Copco industrial assembly solutions, visit the official Atlas Copco Electric Assembly Tools page.
