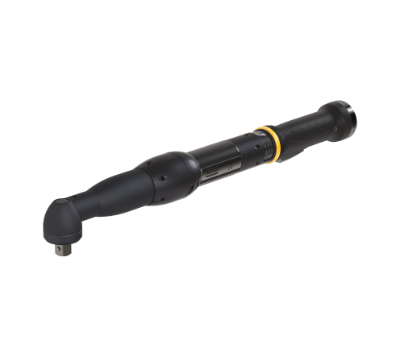

ETV STR61-180-13

ETV STR61-180-13

8436616018

• Model type : Angle
• Torque range max : 180 Nm
• Torque range min : 35 Nm
• Torque range max : 133 ft lb
• Torque range min : 26 ft lb
• Weight : 3 kg
• Weight : 6.6 lb
• Speed : 215 r/min
• Square drive : 1/2 inch
• Length : 543 mm
• CS distance : 25.5 mm
• Height : 65 mm
• Sound pressure : <70 dB(A)
• Sound standard : ISO15744
• Vibration value : 2.5 m/s²
• Vibration standard : ISO28927-2
• CCC certified : Yes
• KC ID : R-REI-50A-ETVSTR61
• KC certified : Yes
• EAC certified : Yes
• Motor voltage type : 3 a.c.
• EC standard : EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61010-1
• Motor power : 1,500 W
• Motor voltage : 200 V
• Tensor : STR
• WEEE : 4 – Large equipment >50cm
• EU directives : 2006/42/EC, 2011/65/EU, 2014/30/EU
