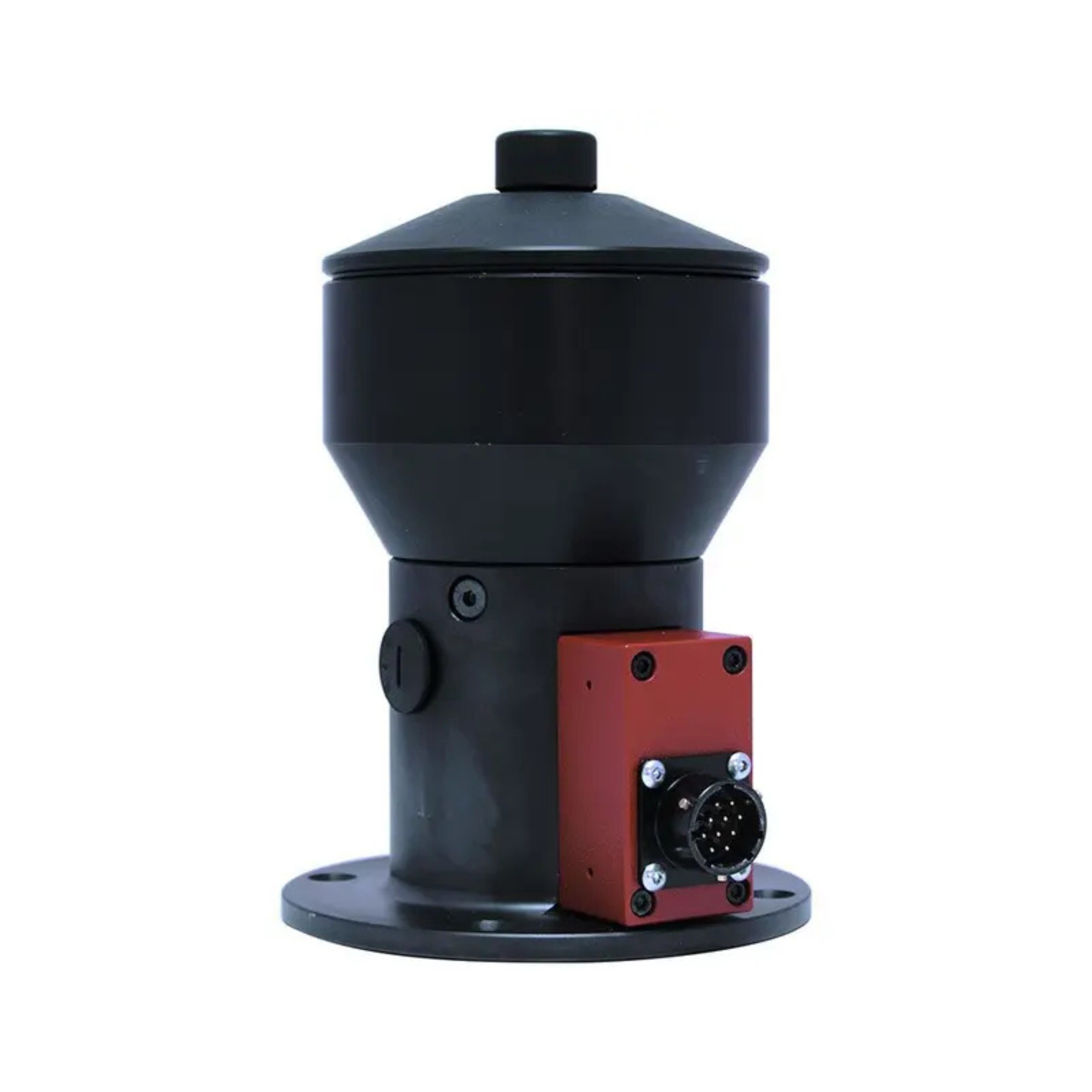

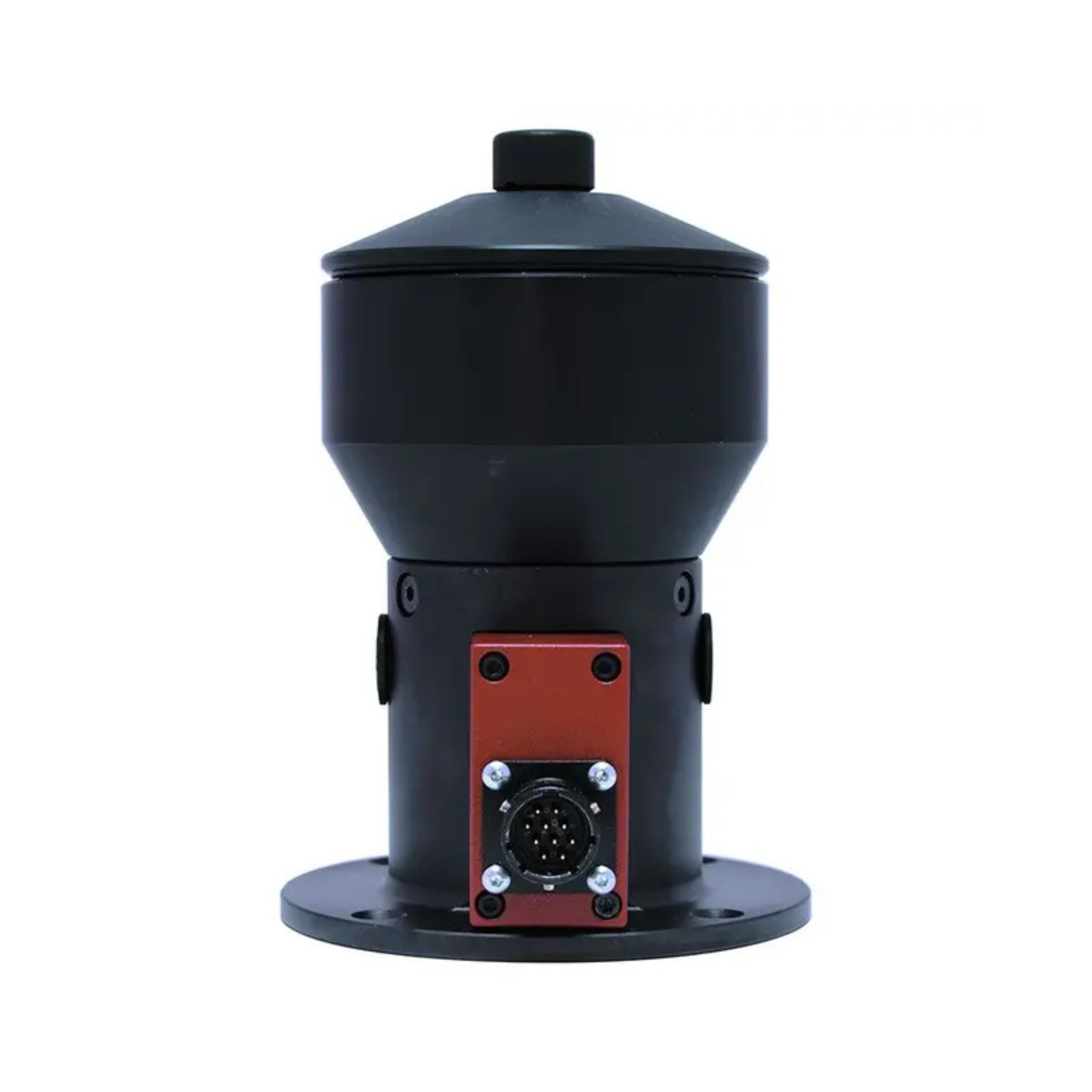

Digital Clamp Force Transducer from 10Nm to 30Nm
If your process requires high repeatability, the FCT range of digital clamp
force transducers, in combination with delta 6 or 7D, is specifically
designed for pneumatic and electrical pulse tools providing highly accurate
clamping force and torque measurement. Featuring a high sensitivity
transducer and optional angle measurement encoder, in addition to a
?smart? chip to store all your important settings. The FCT range is your
perfect partner to boost your quality.
This product is a part of FCT- Digital Clamp Force Transducer
| Torque | |
|---|---|
| Max Torque capacity | 30 Nm |
| Min Torque capacity | 10 Nm |
| Overload torque | 39 Nm |
| Design and Functions | |
|---|---|
| Nutsert thread size | M12x1.25 |
| Overload force | 23400 N |
| Screw head size | M13 |
| Signal Type | Digital |
| Transducer Type | Load |
| Capacity | |
|---|---|
| Max Load | 18000 N |
| Min Load | 1800 N |
| Size and Weight | |
|---|---|
| A | 96 mm |
| B | 115 mm |
| C | 157.8 mm |
| D | 125.8 mm |
| E | 98 mm |
| Weight | 2.4 kg |
| General | |
|---|---|
| Accuracy | ? 0.5% of reading value |
| Family | Torque transducers |
| Measurand | Force |
FCT- Digital Clamp Force Transducer
