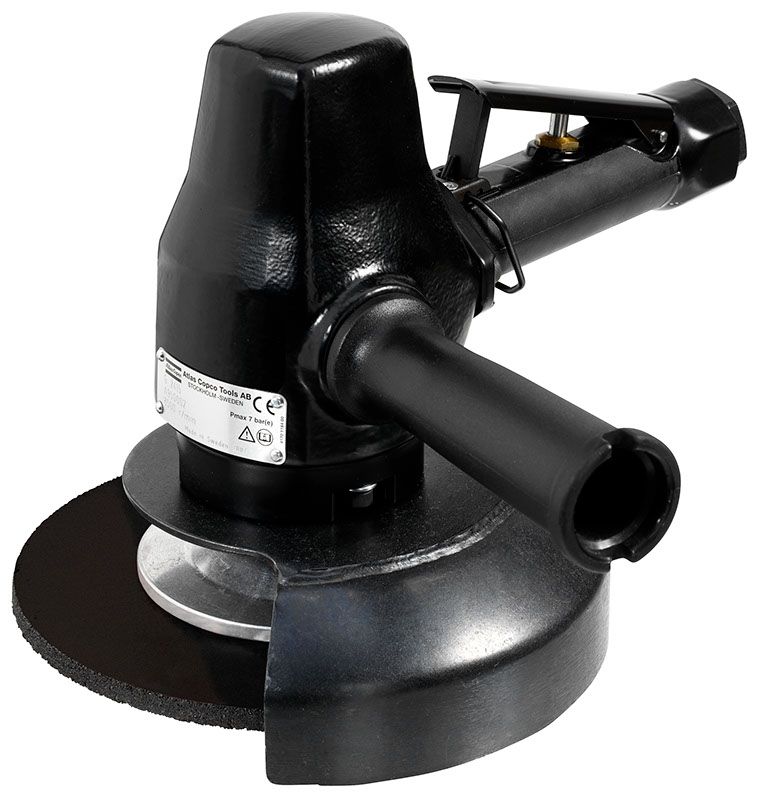

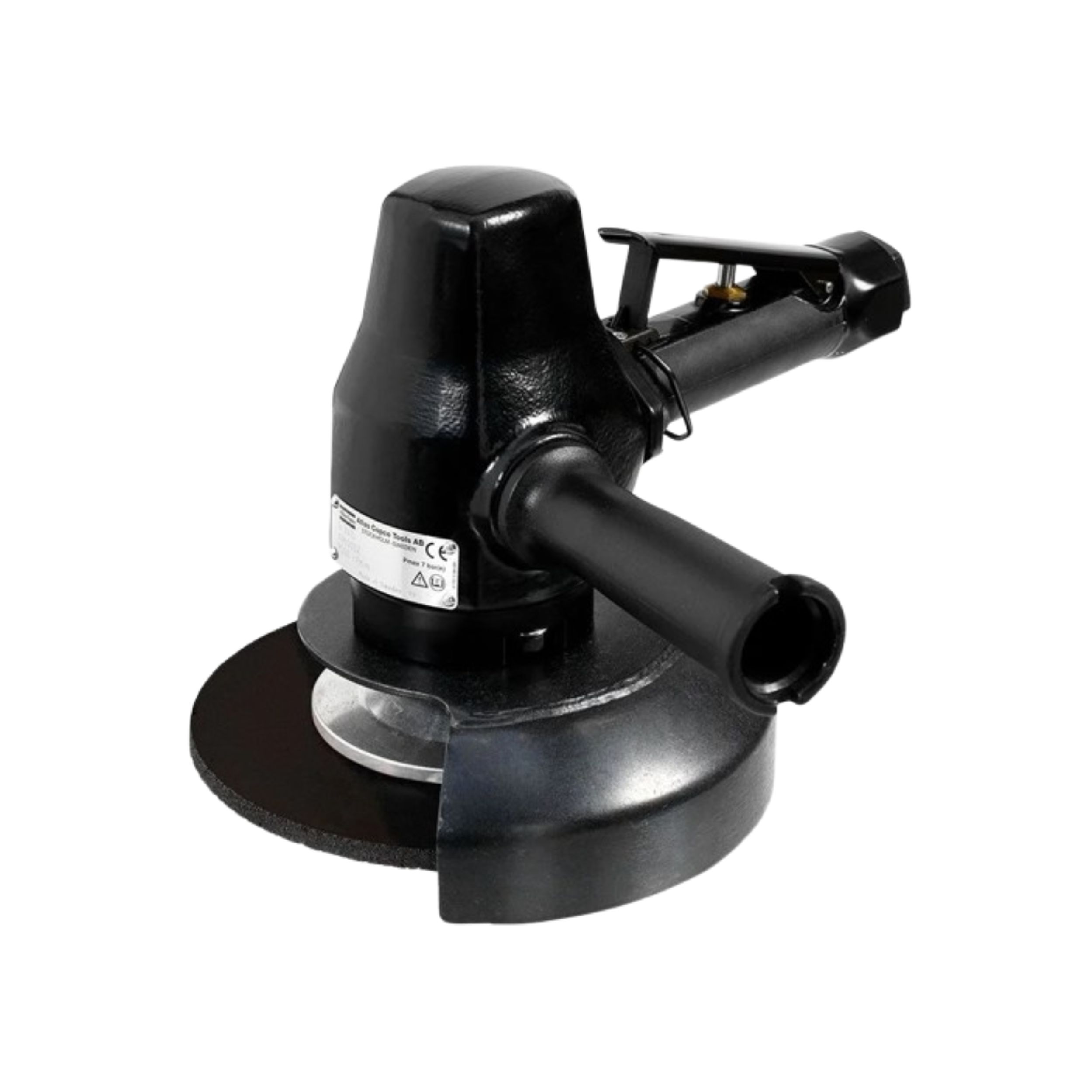

The Atlas Copco G2415 is an industrial grinder developed for professional grinding applications in demanding production and workshop environments. It is designed for applications requiring reliable performance, consistent operation and dependable material removal across a range of industrial grinding tasks.
Technical Specifications
| Design & Functions | |
|---|---|
| Model Type | Angle |
| Motor Type | Vane |
| Max Wheel Dia | 180 mm |
| Spindle Thread | 5/8-11 UNC |
| Spindle Length | 30 mm |
| Spindle Length | 1.2 inch |
| Support Handle Included | Yes |
| Auto Balancer | No |
| Lubrication Free | No |
| PRO | Yes |
| Performance | |
|---|---|
| Max Free Speed | 8,500 r/min |
| Max Output | 1.1 kW |
| Max Output | 1.5 HP |
| Air & Pressure | |
|---|---|
| Max Working Pressure | 6.3 bar |
| Max Working Pressure | 90 psig |
| Air Consumption At Free Speed | 21 l/s |
| Air Consumption At Free Speed | 45 cfm |
| Air Consumption At Max Output | 23 l/s |
| Air Consumption At Max Output | 49 cfm |
| Air Inlet Thread BSP | 1/2 inch |
| Rec Hose Size | 16 mm |
| Rec Hose Size | 5/8 inch |
| Dimensions & Weight | |
|---|---|
| Weight | 2.7 kg |
| Weight | 6 lb |
| Length | 242 mm |
| Length | 9.5 inch |
| Height | 180 mm |
| Height | 7.1 inch |
| Height Over Spindle | 180 mm |
| Height Over Spindle | 7.1 inch |
| Noise & Vibrations | |
|---|---|
| Sound Power | 95 dB(A) |
| Sound Pressure | 84 dB(A) |
| Sound Standard | ISO15744 |
| Sound Uncertainty | 3 dB(A) |
| Vibration Value | 5.9 m/s2 |
| Vibration Uncertainty | 1.9 m/s2 |
| Vibration Standard | ISO28927-1 |
| Certifications, Standards & Directives | |
|---|---|
| EAC Certified | Yes |
| EC Standard | ISO 11148-7 |
| EU Directives | 2006/42/EC |
| UK Legislation | S.I. 2008/1597 |
| UK Standard | ISO 11148-7 |
Atlas Copco G2415 Description
The Atlas Copco G2415 is an Angle industrial grinder with a maximum free speed of 8,500 r/min and maximum output of 1.1 kW (1.5 HP). It features a Vane motor, supports a maximum wheel diameter of 180 mm and operates at a maximum working pressure of 6.3 bar (90 psig).
Air consumption at free speed is 21 l/s (45 cfm), while air consumption at maximum output is 23 l/s (49 cfm). The G2415 has a 1/2 inch BSP air inlet thread and recommended hose size of 16 mm (5/8 inch). It weighs 2.7 kg (6 lb), has a length of 242 mm (9.5 inch) and a height of 180 mm (7.1 inch).
Applications
The Atlas Copco G2415 can be selected for professional industrial grinding requirements where its Angle configuration, 180 mm maximum wheel diameter, 8,500 r/min maximum free speed and 1.1 kW maximum output match the required grinding process.
Key Features
- Angle model configuration
- Vane motor
- Max free speed: 8,500 r/min
- Max wheel diameter: 180 mm
- Max output: 1.1 kW / 1.5 HP
- Max working pressure: 6.3 bar / 90 psig
- Air consumption at free speed: 21 l/s / 45 cfm
- Air consumption at max output: 23 l/s / 49 cfm
- Air inlet thread BSP: 1/2 inch
- Recommended hose size: 16 mm / 5/8 inch
- Spindle thread: 5/8-11 UNC
- Spindle length: 30 mm / 1.2 inch
- Support handle included: Yes
- Auto balancer: No
- Lubrication Free: No
- Weight: 2.7 kg / 6 lb
- Length: 242 mm / 9.5 inch
- Height: 180 mm / 7.1 inch
- Height over spindle: 180 mm / 7.1 inch
- PRO: Yes
- Sound power: 95 dB(A)
- Sound pressure: 84 dB(A)
- Vibration value: 5.9 m/s2
- Vibration uncertainty: 1.9 m/s2
Why Choose the Atlas Copco G2415?
The Atlas Copco G2415 combines an 8,500 r/min maximum free speed with 1.1 kW maximum output, an Angle configuration and a maximum wheel diameter of 180 mm. Its supplied technical data also includes a 2.7 kg weight, 242 mm length, 6.3 bar maximum working pressure and specified air consumption values for professional industrial grinding applications.
The model is EAC certified. Its supplied EC standard is ISO 11148-7 and the listed EU directive is 2006/42/EC. UK legislation is listed as S.I. 2008/1597 with UK standard ISO 11148-7. Sound power is rated at 95 dB(A) and sound pressure at 84 dB(A) according to ISO15744 with a sound uncertainty of 3 dB(A), while vibration is rated at 5.9 m/s2 with a vibration uncertainty of 1.9 m/s2 according to ISO28927-1.
Related Atlas Copco Grinders
Middle East ABC supplies a wide range of Atlas Copco Grinders for different professional and industrial grinding requirements. Explore available models based on grinder type, speed, output, wheel size and application requirements.
Atlas Copco G2415 Supplier in UAE
Middle East ABC supplies the Atlas Copco G2415 in UAE for customers looking for Atlas Copco industrial grinders and quotation support. Contact Middle East ABC to request pricing and availability for this model.
