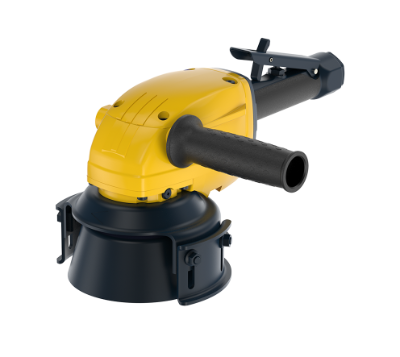

The Atlas Copco GTG40 S060-611 is a powerful turbine angle grinder designed for demanding industrial grinding applications. Its high-output turbine motor delivers strong material-removal performance while the robust angle design and auxiliary handle provide improved control during heavy-duty operation. Built for professional use, the GTG40 S060-611 is suited to intensive grinding tasks where productivity, durability, and consistent performance are essential.
Technical Specifications
| Design & Functions | |
|---|---|
| Model Type | Angle |
| Motor Type | Turbine |
| Max Wheel Dia | 6 inch |
| Spindle Thread | 5/8-11 UNC |
| Spindle Length | 0.9 inch |
| Spindle Length | 22.3 mm |
| Support Handle Included | Yes |
| Auto Balancer | Yes |
| Lubrication Free | Yes |
| Performance | |
|---|---|
| Max Free Speed | 6,000 r/min |
| Max Output | 4.5 kW |
| Max Output | 6.1 HP |
| Air & Pressure | |
|---|---|
| Max Working Pressure | 6.3 bar |
| Max Working Pressure | 90 psig |
| Air Consumption At Free Speed | 20 l/s |
| Air Consumption At Free Speed | 42 cfm |
| Air Consumption At Max Output | 60 l/s |
| Air Consumption At Max Output | 126 cfm |
| Air Inlet Thread NPT | 1/2 inch |
| Rec Hose Size | 16 mm |
| Rec Hose Size | 5/8 inch |
| Dimensions & Weight | |
|---|---|
| Weight | 4.6 kg |
| Weight | 10.1 lb |
| Height | 159 mm |
| Height | 6.3 inch |
| Height Over Spindle | 5.2 inch |
| Height Over Spindle | 123 mm |
| Noise & Vibrations | |
|---|---|
| Sound Power | 95 dB(A) |
| Sound Pressure | 84 dB(A) |
| Sound Standard | ISO15744 |
| Sound Uncertainty | 3 dB(A) |
| Vibration Value | <2.5 m/s2 |
| Vibration Standard | ISO28927-1 |
| Certifications, Standards & Directives | |
|---|---|
| EAC Certified | Yes |
| EC Standard | ISO 11148-7 |
| EU Directives | 2006/42/EC |
| UK Legislation | S.I. 2008/1597 |
| UK Standard | ISO 11148-7 |
Atlas Copco GTG40 S060-611 Description
The Atlas Copco GTG40 S060-611 is an Angle industrial grinder with a maximum free speed of 6,000 r/min and maximum output of 4.5 kW (6.1 HP). It features a Turbine motor, supports a maximum wheel diameter of 6 inch and operates at a maximum working pressure of 6.3 bar (90 psig).
Air consumption at free speed is 20 l/s (42 cfm), while air consumption at maximum output is 60 l/s (126 cfm). The GTG40 S060-611 has a 1/2 inch NPT air inlet thread and recommended hose size of 16 mm (5/8 inch). It weighs 4.6 kg (10.1 lb), has a height of 159 mm (6.3 inch) and a height over spindle of 123 mm (5.2 inch).
Applications
The Atlas Copco GTG40 S060-611 can be selected for professional industrial grinding requirements where its Angle configuration, 6,000 r/min maximum free speed, 4.5 kW maximum output and 6 inch maximum wheel diameter match the required grinding process.
Key Features
- Angle model configuration
- Turbine motor
- Max free speed: 6,000 r/min
- Max output: 4.5 kW / 6.1 HP
- Max wheel diameter: 6 inch
- Max working pressure: 6.3 bar / 90 psig
- Air consumption at free speed: 20 l/s / 42 cfm
- Air consumption at max output: 60 l/s / 126 cfm
- Air inlet thread NPT: 1/2 inch
- Recommended hose size: 16 mm / 5/8 inch
- Spindle thread: 5/8-11 UNC
- Spindle length: 22.3 mm / 0.9 inch
- Support handle included: Yes
- Auto balancer: Yes
- Lubrication Free: Yes
- Weight: 4.6 kg / 10.1 lb
- Height: 159 mm / 6.3 inch
- Height over spindle: 123 mm / 5.2 inch
- Sound power: 95 dB(A)
- Sound pressure: 84 dB(A)
- Vibration value: <2.5 m/s2
Why Choose the Atlas Copco GTG40 S060-611?
The Atlas Copco GTG40 S060-611 combines a 6,000 r/min maximum free speed with 4.5 kW maximum output, an Angle configuration and a maximum wheel diameter of 6 inch. Its supplied technical data also includes a 4.6 kg weight, 6.3 bar maximum working pressure and specified air consumption values for professional industrial grinding applications.
The model is EAC certified. Its supplied EC standard is ISO 11148-7 and the listed EU directive is 2006/42/EC. UK legislation is listed as S.I. 2008/1597 with UK standard ISO 11148-7. Sound power is rated at 95 dB(A) and sound pressure at 84 dB(A) according to ISO15744 with a sound uncertainty of 3 dB(A), while vibration is rated at <2.5 m/s2 according to ISO28927-1.
Related Atlas Copco Grinders
Middle East ABC supplies a wide range of Atlas Copco Grinders for different professional and industrial grinding requirements. Explore available models based on grinder type, speed, output, wheel size and application requirements.
Atlas Copco GTG40 S060-611 Supplier in UAE
Middle East ABC supplies the Atlas Copco GTG40 S060-611 in UAE for customers looking for Atlas Copco industrial grinders and quotation support. Contact Middle East ABC to request pricing and availability for this model.
