GV5 00

GV5

    6151740170

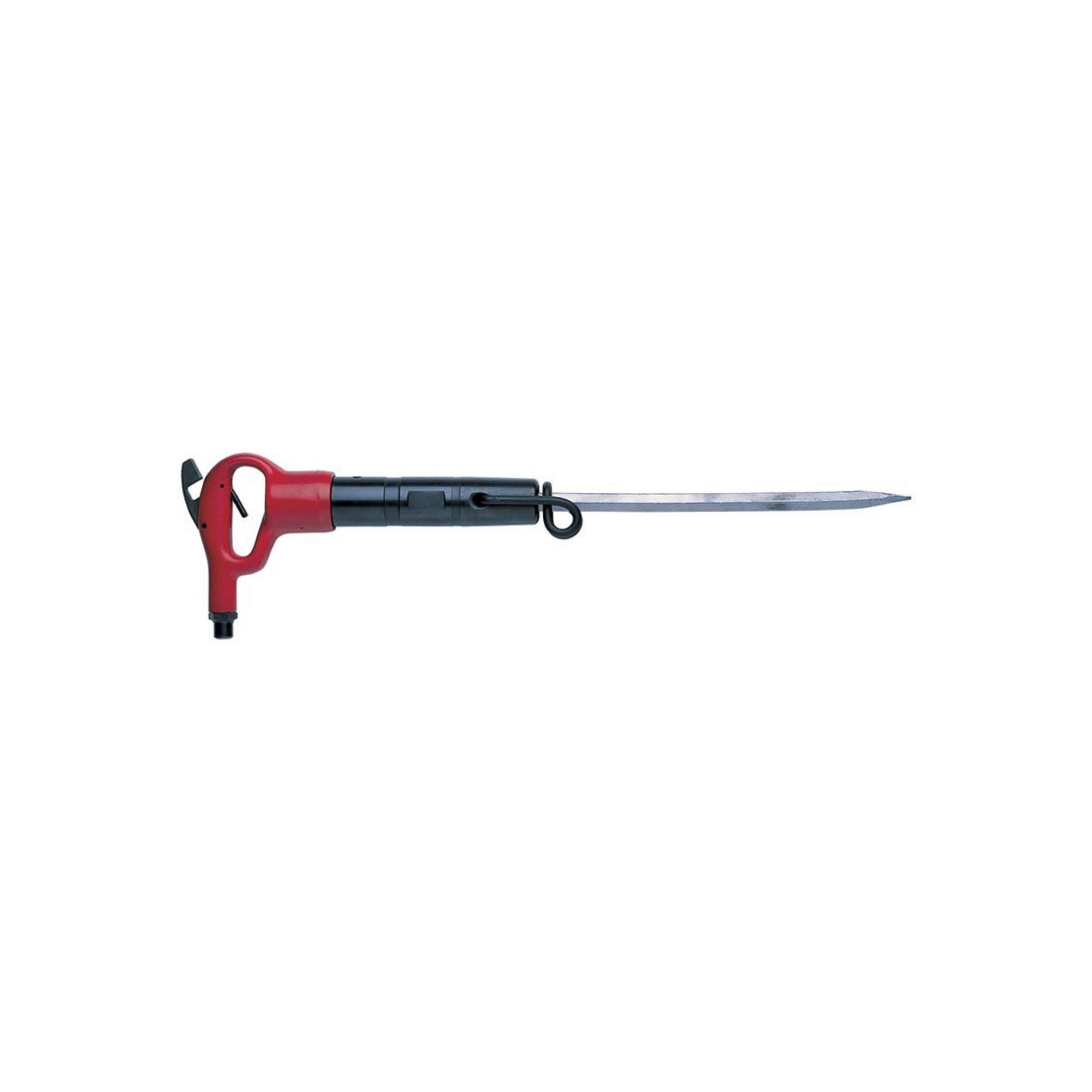

    3/4″(19.2mm) hex pneumatic chipping hammer

    Dedicated to heavy industrial applications, GV5 hammer combines hard hits, efficient blow rate and sturdy design. Thanks to its metal body, large stroke volume and efficient blow rate, the GV5 combines hard power and durability. It is ideal for roughering, chipping or cutting applications. Country of origin is JP. Customs tariff is 84671900

    SEND INQUIRY
    Category:

      Technical Specifications

      Noise & vibrations
      Sound Power 106 dB(A)
      Sound Pressure 95 dB(A)
      Uncertainty vibration-K 7.9 m/s²
      Vibration 19.8 m/s²

      Design & Functions
      Blow per minute 2400
      Chisel shank Hex
      Chisel shank diameter (in) 3/4
      Chisel shank diameter (mm) 19.01
      Energy 12 J
      Starting system Trigger

      Size & Weight
      Bore diameter 28 mm
      Length (L) 385 mm
      Stroke 52.5 mm
      Weight 5.1 kg

      Air information
      Air consumption at load 8.3 l/s
      Air inlet thread size (in) 1/2
      Max dynamic air working pressure 6.3 bar
      Min hose diam (16 ft hose length) 0.5 in
      Min hose diam (5 m hose length) 13 mm
      Weight 5,73 kg
      Dimensions 44,4 × 21 × 9,5 cm
