Product specifications

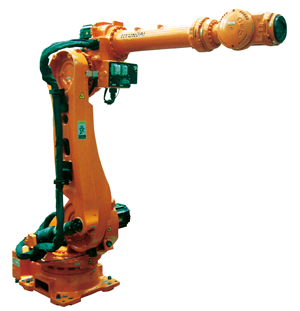

| Model | HS220 | ||
| Structure | Articulated | ||
| Degree of Freedom | 6 | ||
| Drive Method | AC Servo | ||
| Max.MotionRange | Main Axes | Swivel | ±180 ° |
| Horizontal | +65 ° ~ -80 ° | ||
| Vertical | +230 ° ~ -130 ° | ||
| Wrist Axes | R2 | ±360 ° | |
| B(Bending) | ±128 ° | ||
| R1(Twisting) | ±360 ° | ||
| Max.Speed | Main Axes | Swivel | 120 °/s |
| Horizontal | 105 °/s | ||
| Vertical | 115 °/s | ||
| Wrist Axes | R2 | 145 °/s | |
| B(Bending) | 145 °/s | ||
| R1(Twisting) | 220°/s | ||
| Payload | 220 kg | ||
| AllowableTorque | Wrist Axes | R2 | 145 kgf.m |
| B(Bending) | 145 kgf.m | ||
| R1(Twisting) | 79 kgf.m | ||
| Repeatability | ±0.06 mm | ||
| Ambient temperature | 0~45°C | ||
| Body Weight | 955 kg | ||
| Installation method | Floor | ||
