The Hydraulic Square Drive Wrench RT is a highly durable, robust tool for demanding applications in a wide range of industries.
Technical Specifications
| Identification | |
|---|---|
| Order number | 8434 2010 02 |
| Design & function | |
| ATEX | No |
| Max ambient temperature | 40 °C |
| Min ambient temperature | -20 °C |
| H1 | 90.5 mm |
| H2 | 122 mm |
| L1 | 120 mm |
| L2 | 183 mm |
| Radius | 23 mm |
| Square drive | 3/4 in |
| Power supply hydraulic pressure range max | 690 bar |
| Power supply hydraulic pressure range min | 104 bar |
| Performance | |
| Coupling Type | Twin-Screw In |
| Torque range max | 1817 Nm |
| Torque range min | 271 Nm |
| Dimensions & weight | |
| W1 | 50 mm |
| W2 | 71 mm |
| Weight | 1.9 kg |
| Noise & vibration | |
| Sound pressure | <70 dB(A) |
| Sound uncertainty | 3 dB(A) |

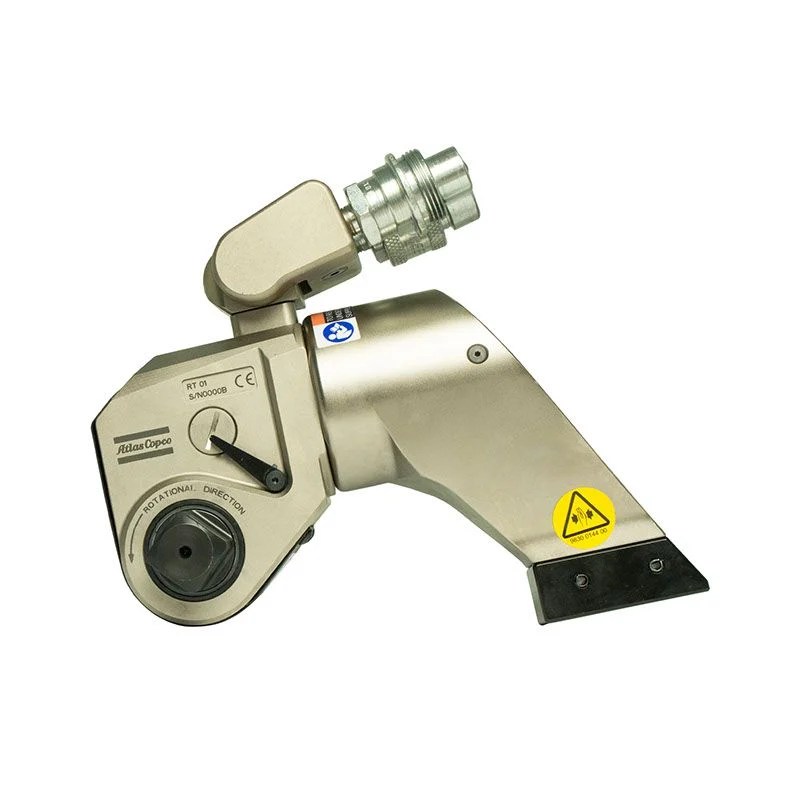

Atlas Copco Hydraulic Square Drive Wrench SQUARE DRIVE – RT-01
Hydraulic Square Drive Wrench SQUARE DRIVE – RT-01 (part no. 8434 2010 02) is listed in the Atlas Copco Bolt Tensioning Equipment range. Check the size and configuration against your application before ordering.
Atlas Copco Hydraulic Square Drive Wrench SQUARE DRIVE – RT-01 Information
Contact Middle East ABC for technical product information, availability and quotation support for part no. 8434 2010 02 and other Atlas Copco products.
