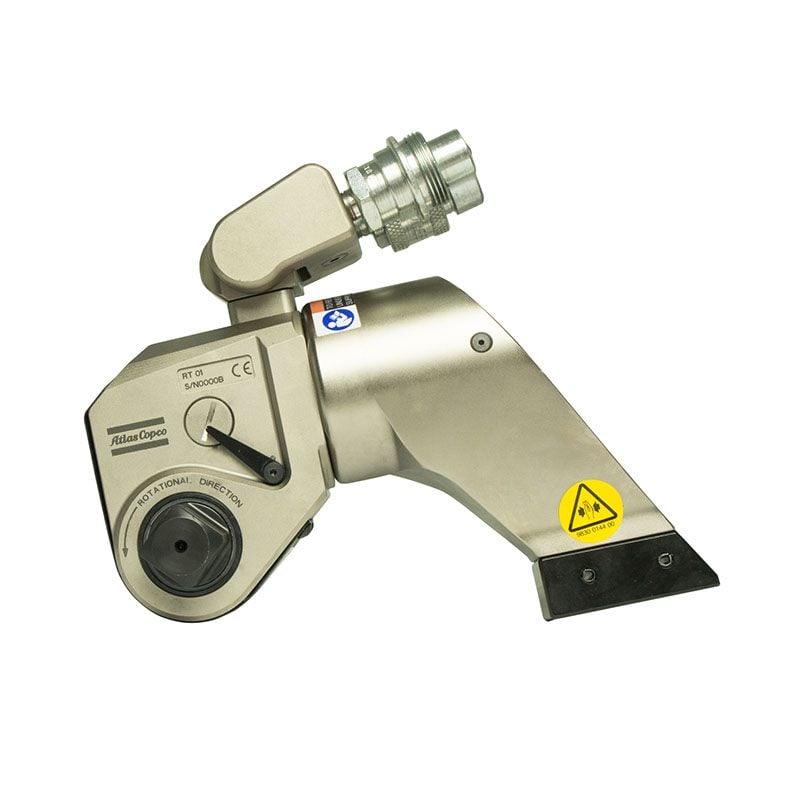

The Hydraulic Square Drive Wrench RT is a highly durable, robust tool for demanding applications in a wide range of industries.
Technical Specifications
| Identification | |
|---|---|
| Order number | 8434 2010 13 |
| Design & function | |
| ATEX | No |
| Max ambient temperature | 40 °C |
| Min ambient temperature | -20 °C |
| H1 | 164.6 mm |
| H2 | 213.36 mm |
| L1 | 202 mm |
| L2 | 321 mm |
| Radius | 41 mm |
| Square drive | 1 1/2 in |
| Power supply hydraulic pressure range max | 690 bar |
| Power supply hydraulic pressure range min | 104 bar |
| Performance | |
| Coupling Type | Twin-Screw In |
| Torque range max | 10845 Nm |
| Torque range min | 1627 Nm |
| Dimensions & weight | |
| W1 | 88 mm |
| W2 | 126 mm |
| Weight | 11.5 kg |
| Noise & vibration | |
| Sound pressure | <70 dB(A) |
| Sound uncertainty | 3 dB(A) |
Atlas Copco Hydraulic Square Drive Wrench Square Drive – RT-08
Hydraulic Square Drive Wrench Square Drive – RT-08 (part no. 8434 2010 13) is listed in the Atlas Copco Bolt Tensioning Equipment range. Check the size and configuration against your application before ordering.
Atlas Copco Hydraulic Square Drive Wrench Square Drive – RT-08 Information
Contact Middle East ABC for technical product information, availability and quotation support for part no. 8434 2010 13 and other Atlas Copco products.
