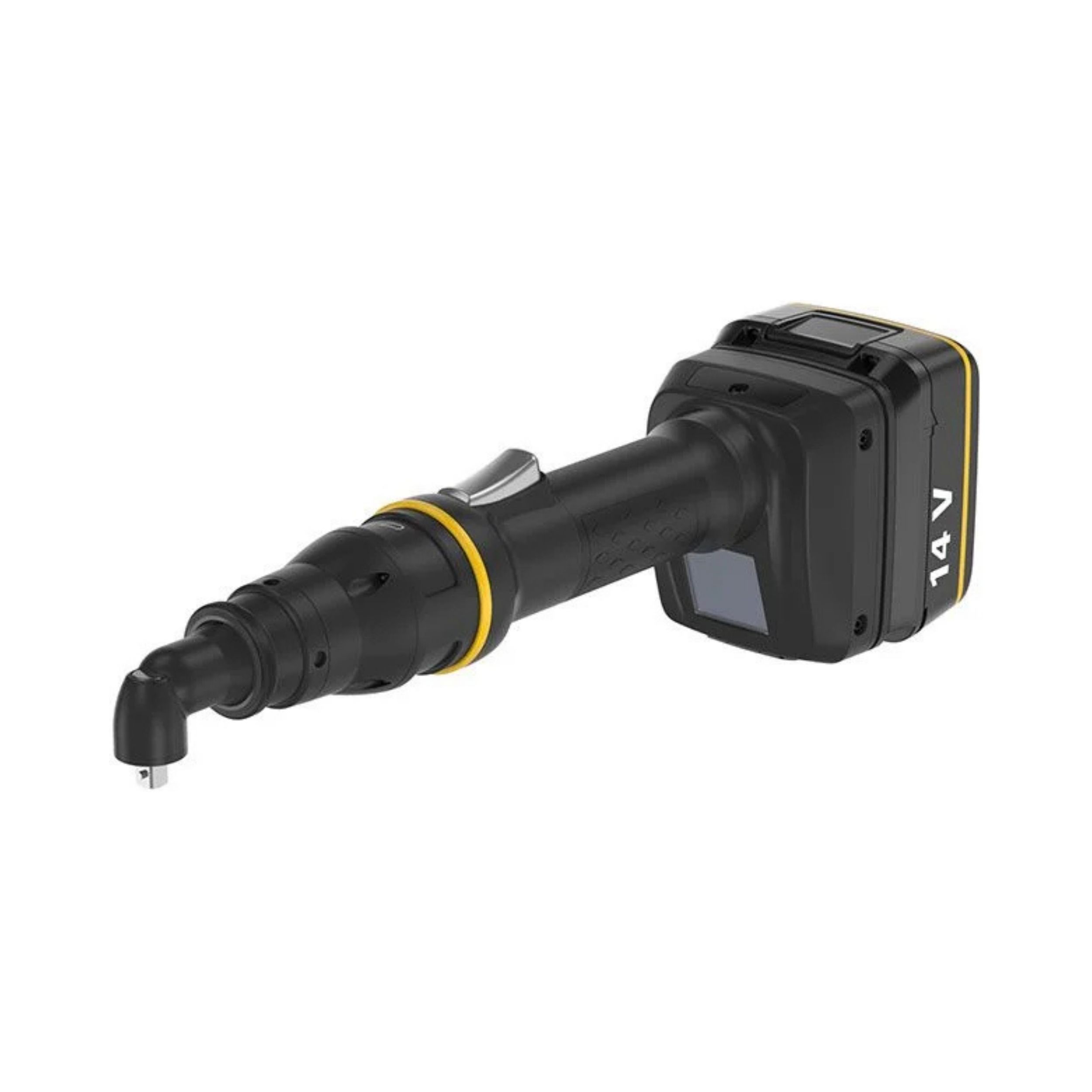

The Atlas Copco ICB-A21-07-06 is a cordless industrial assembly tool designed for precise and efficient fastening in professional production environments. Its battery-powered configuration supports flexible operation on assembly lines while helping maintain controlled and repeatable tightening performance.
Technical Specifications
| Design & Functions | |
|---|---|
| Tensor | ICB |
| Model type | Angle |
| Shut-off system | Transducer |
| Square drive | 1/4 inch |
| Accuracy 3 sigma | ≤ 5 |
| Tolerance Class | TK15 |
| Capability class | FK-MFU25 |
| Torque | |
|---|---|
| Torque range min | 1.4 Nm |
| Torque range max | 7 Nm |
| Torque range min | 1 ft lb |
| Torque range max | 5.2 ft lb |
| Speed & Motor | |
|---|---|
| Speed | 1,205 r/min |
| Motor power | 500 W |
| Motor voltage | 35 V |
| Motor voltage type | d.c. |
| Battery | |
|---|---|
| Battery | Li-Io 14/18 V |
| Type of battery | 1 Li-ion |
| Weight of battery | 7 g |
| Material contains a battery | Yes |
| Noise & Vibrations | |
|---|---|
| Sound pressure | < 70 dB(A) |
| Sound standard | ISO15744 |
| Vibration value | < 2.5 m/s2 |
| Vibration standard | ISO28927-2 |
| Dimensions & Weight | |
|---|---|
| Length | 289.6 mm |
| Height | 88.6 mm |
| Width | 74.6 mm |
| CS distance | 9.5 mm |
| Weight | 1.13 kg |
| Weight | 2.48 lb |
| Weight incl. bat. | 1.49 kg |
| Weight incl. bat. | 3.29 lb |
| Certifications, Standards & Directives | |
|---|---|
| CCC certified | No |
| EAC certified | Yes |
| ETL listed | Yes |
| ETL control number | 3008099 |
| ETL text | 6 – 62841-2-2 |
| FCC ID | XF6-M7DB7 |
| IC ID | 8407A-M7DB7 |
| CMIIT ID | 2020AJ14906 |
| KC certified | Yes |
| KC ID | R-R-50A-IXB Series |
| EU SAR value | 0.55 |
| WEEE | 5 – Small equipment <50cm |
| EU directives | 2006/42/EC, 2011/65/EU0, 2014/53/EU |
| EC standard | EN 300 328 V2.2.2, EN 301 489-1 V2.1.1, EN 301 489-17 V3.1.1, EN 301 893 V2.1.1, EN 55014-1:2017, EN 55014-2:2015, EN 61000-6-2:2005, EN 61000-6-3:2007+A1, EN 61000-6-4:2007+A1, EN 62841-1:2015, EN 62841-2-2:2015 |
| UK legislation | S.I. 2008/1597, S.I. 2012/3032, S.I. 2017/1206 |
| UK standard | EN 300 328 V2.2.2, EN 301 489-1 V2.1.1, EN 301 489-17 V3.1.1, EN 301 893 V2.1.1, EN 55014-1:2017, EN 55014-2:2015, EN 61000-6-2:2005, EN 61000-6-3:2007+A1, EN 61000-6-4:2007+A1, EN 62841-1:2015, EN 62841-2-2:2015 |
Applications
The Atlas Copco ICB-A21-07-06 is designed for precise low-torque fastening in industrial production and assembly environments. Its 1.4–7 Nm torque range, compact angle configuration and 1/4-inch square drive make it suitable for applications where controlled tightening and access to smaller fastening points are required.
Key Features
- 1.4–7 Nm torque range for precision low-torque fastening
- Angle configuration for improved access in confined assembly areas
- Transducer shut-off system for controlled and repeatable tightening
- 1,205 r/min speed for efficient assembly operations
- 1/4-inch square drive
- Li-Ion 14/18 V battery platform for cordless operation
- Compact length of 289.6 mm
- Tool weight of only 1.13 kg
- Low vibration level of <2.5 m/s²
- Sound pressure below 70 dB(A)
Why Choose the ICB-A21-07-06?
The ICB-A21-07-06 cordless angle nutrunner combines a compact design with a precise 1.4–7 Nm torque range and transducer-controlled tightening. Its relatively low weight and high operating speed make it suitable for repetitive industrial fastening tasks where accuracy, productivity and operator mobility are important.
If you are evaluating different tightening systems for your production line, read our guide to cordless vs corded industrial assembly tools.
Related Cordless Assembly Tools
The Atlas Copco ICB-A21-07-06 is part of the ICB cordless tightening range. Explore our complete selection of Atlas Copco cordless assembly tools to compare other models, torque ranges and configurations for industrial assembly applications.
Atlas Copco ICB-A21-07-06 Supplier in UAE
Middle East ABC supplies the Atlas Copco ICB-A21-07-06 in the UAE for industrial manufacturing and assembly applications. Contact our team for product availability, technical information and quotation support for this model and other Atlas Copco cordless tightening tools.
For more information about Atlas Copco’s current cordless tightening solutions, visit the official Atlas Copco Cordless Assembly Tools page.
