Angle Cordless Nutrunner Tensor ICB-A: Tensor ICB brings ergonomics and accessibility to the next level. It belongs to the Atlas Copco Cordless Assembly Tools range.
Technical Specifications
| Dimension & weight | |
|---|---|
| CS distance | 11 mm |
| Height | 88.6 mm |
| Length | 300.3 mm |
| Output size | 1/4" |
| Weight | 1.165 kg |
| Weight | 2.57 lb |
| Width | 74.6 mm |
| Certifications & standards | |
| Capability class | FK-MFU25 |
| CCC certified | No |
| CMIIT ID | 2020AJ14906 |
| EAC certified | Yes |
| EU Legislation | (EU) 2022/30, 2006/42/EC (MD), 2011/65/EU (RoHS), 2014/53/EU (RED), 2015/863/EU (RoHS amendment) |
| EU Standard | EN 18031-1:2024, EN 300 328 V2.2.2, EN 300 440 V2.1.1, EN 301 489-1 V2.2.3, EN 301 489-17 V3.1.1, EN 301 893 V2.1.1, EN 50566:2017, EN 61000-6-2:2019, EN 61000-6-3:2007+A1:2011, EN 61000-6-4:2007+A1:2011, EN 62209-2:2010+AC:2019, EN 62841-1:2015+AC:2015+A11:2022, EN 62841-2-2:2014+AC:2015 |
| ETL control number | 3008099 |
| ETL listed | Yes |
| ETL text | 6 – 62841-2-2 |
| EU SAR value | 0.55 W/kg |
| FCC ID | XF6-M7DB7 |
| IC ID | 8407A-M7DB7 |
| KC certified | No |
| Tolerance Class | TK10 |
| UK Regulations | S.I. 2008/1597, S.I. 2012/3032, S.I. 2017/1206 |
| UK Standard | EN 300 328 V2.2.2, EN 300 440 V2.1.1, EN 301 489-1 V2.2.3, EN 301 489-17 V3.1.1, EN 301 893 V2.1.1, EN 50566:2017, EN 61000-6-2:2019, EN 61000-6-3:2007+A1:2011, EN 61000-6-4:2007+A1:2011, EN 62209-2:2010+AC:2019, EN 62841-1:2015+AC:2015+A11:2022, EN 62841-2-2:2014+AC:2015 |
| WEEE | 5 – Small equipment <50cm |
| Torque | |
| Torque range max | 8.85 ft-lb |
| Torque range max | 12 Nm |
| Torque range min | 3 ft-lb |
| Torque range min | 4 Nm |
| Torque scatter 3s | ≤ 3.5 % |
| Design & Functions | |
| Model type | Angle |
| Output type | Square, Male |
| Shut-off system | Transducer |
| Tool family | ICB |
| Power | |
| Motor power | 500 W |
| Motor voltage type | d.c. |
| Motor voltage | 35 V |
| Battery Information | |
| Battery | Li-Io 14/18 V |
| Type of battery | 1 Li-ion |
| Weight incl. battery | 1.535 kg |
| Weight incl. battery | 3.38 lb |
| Noise And Vibrations | |
| Sound pressure | < 70 dB(A) |
| Sound standard | ISO15744 |
| Vibration standard | ISO28927-2 |
| Vibration value | < 2.5 m/s² |
| Speed | |
| Speed range max | 755 r/min |
Benefits
- Increased ergonomics and accessibility
- One tool for many applications
- Quick installation and easy line rebalancing
- Easy to use- no extra training needed
- Continuous production and increased uptime
Features
- Integrated controller
- Low weight and compact design
- Rotatable trigger and angle head
- Models with Integrated EHMI display
- Rundown booster
- Optimized heat dissipation
- Dual antennas

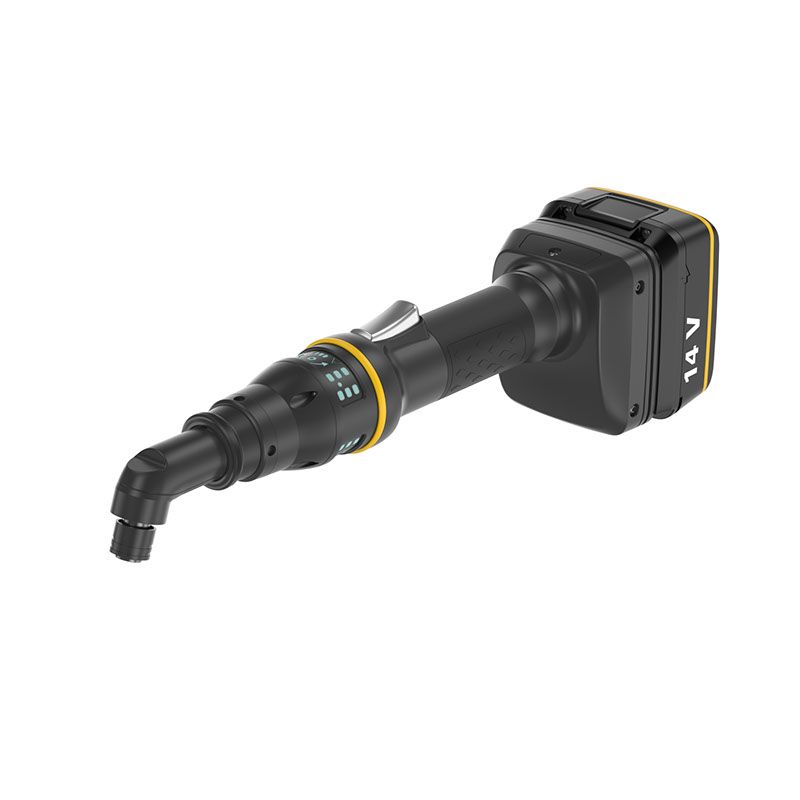

Atlas Copco ICB-A21-12-06-L-H
ICB-A21-12-06-L-H (part no. 8436 0022 13) is part of the Atlas Copco Angle Cordless Nutrunner Tensor ICB-A range.
Atlas Copco ICB-A21-12-06-L-H Information
Contact Middle East ABC for technical product information and quotation support for part no. 8436 0022 13 and other Atlas Copco cordless assembly tools.
