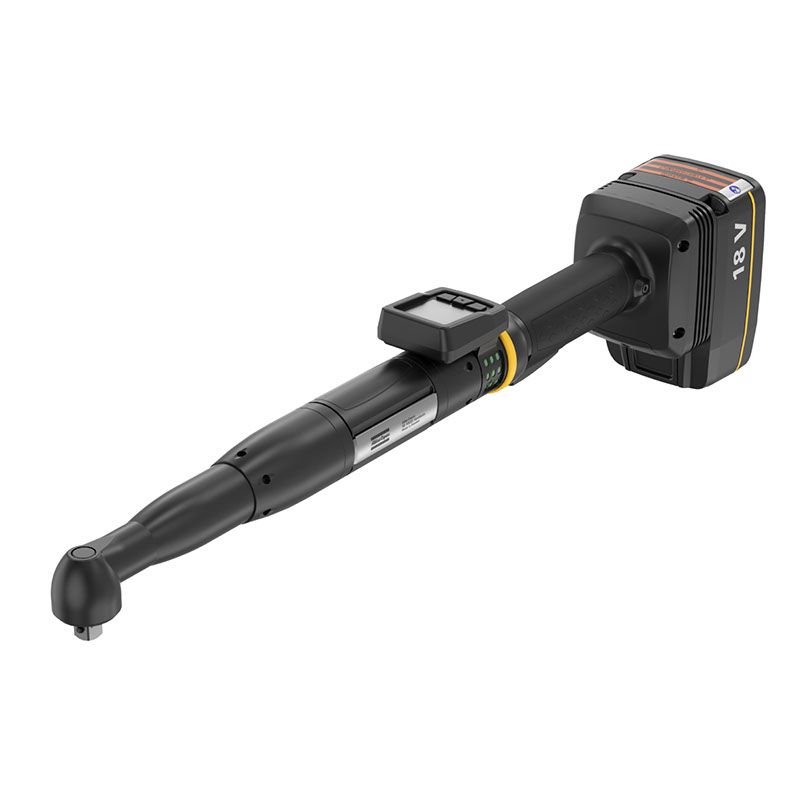

The Atlas Copco ITB-A61-70-13 is a cordless industrial angle nutrunner designed for precise and controlled fastening in professional assembly environments. As part of Atlas Copco’s ITB cordless tightening range, it provides a mobile solution for production applications where repeatable tightening performance is required.
8436006070
Technical Specifications
| Design & Functions | |
|---|---|
| Tensor | ITB |
| Model type | Angle |
| Shut-off system | Transducer |
| Square drive | 1/2 inch |
| Accuracy 3 sigma | ≤ 5 |
| Tolerance Class | TK15 |
| Capability class | FK-MFU25 |
| Torque | |
|---|---|
| Torque range min | 15 Nm |
| Torque range max | 80 Nm |
| Torque range min | 10 ft lb |
| Torque range max | 58 ft lb |
| Speed & Motor | |
|---|---|
| Speed | 424 r/min |
| Motor power | 1,500 W |
| Motor voltage | 35 V |
| Motor voltage type | d.c. |
| Battery | |
|---|---|
| Battery | Li-Io 18/36 V |
| Type of battery | 1 Li-ion |
| Material contains a battery | Yes |
| Weight of battery | 7 g |
| Noise & Vibrations | |
|---|---|
| Sound pressure | < 70 dB(A) |
| Sound standard | ISO15744 |
| Vibration standard | ISO28927-2 |
| Vibration value | < 2.5 m/s2 |
| Dimensions & Weight | |
|---|---|
| Weight | 2.5 kg |
| Weight | 5.5 lb |
| Weight incl. bat. | 3 kg |
| Weight incl. bat. | 6.6 lb |
| Length | 503.3 mm |
| Height | 88.5 mm |
| Width | 74.5 mm |
| CS distance | 20 mm |
| Certifications, Standards & Directives | |
|---|---|
| CMIIT ID | 2020AJ15158 |
| EAC certified | Yes |
| EC standard | EN 300 328 v.2.2.2, EN 301 489-1 v.2.1.1, EN 301 489-17 v.3.1.1, EN 301 893 v.2.1.1, EN 55014-1:2017, EN 55014-2:2015, EN 61000-6-2:2005, EN 61000-6-3:2007+A1, EN 61000-6-4:2007+A1, EN 62841-1:2015, EN 62841-2-2:2014/AC:2015 |
| ETL control number | 3008099 |
| ETL listed | Yes |
| ETL text | 6 – 62841-2-2 |
| EU SAR value | 0.55 |
| EU directives | 2006/42/EC, 2011/65/EU0, 2014/53/EU |
| FCC ID | XF6-M7DB7 |
| IC ID | 8407A-M7DB7 |
| KC ID | R-R-50A-IXB Series |
| KC certified | Yes |
| UK legislation | S.I. 2008/1597, S.I. 2012/3032, S.I. 2017/1206 |
| UK standard | EN 300 328 v.2.2.2, EN 301 489-1 v.2.1.1, EN 301 489-17 v.3.1.1, EN 301 893 v.2.1.1, EN 55014-1:2017, EN 55014-2:2015, EN 61000-6-2:2005, EN 61000-6-3:2007+A1, EN 61000-6-4:2007+A1, EN 62841-1:2015, EN 62841-2-2:2014/AC:2015 |
| WEEE | 4 – Large equipment >50cm |
Applications
The Atlas Copco ITB-A61-70-13 is designed for industrial fastening applications requiring controlled tightening within a 15–80 Nm torque range. Its 1/2 inch square drive and 424 r/min operating speed make it suitable for higher-torque assembly tasks where consistent and repeatable tightening is required.
Key Features
- 15–80 Nm tightening torque range
- 1/2 inch square drive
- 424 r/min operating speed
- 1,500 W motor power
- Transducer-controlled shut-off system
- TK15 tolerance class
- FK-MFU25 capability class
- 3 kg weight including battery
- Li-Io 18/36 V battery system
- Sound pressure below 70 dB(A)
- Vibration value below 2.5 m/s2
Why Choose the ITB-A61-70-13?
The ITB-A61-70-13 combines a 15–80 Nm torque range with a 1/2 inch square drive and 424 r/min speed. Its transducer-controlled shut-off system, 1,500 W motor and TK15 tolerance class make it a strong option for controlled cordless fastening where a higher torque capacity is required.
If you are comparing different tightening systems for your production line, read our guide to cordless vs corded industrial assembly tools.
Related Cordless Assembly Tools
The Atlas Copco ITB-A61-70-13 belongs to the ITB cordless tightening range. Explore our complete selection of Atlas Copco cordless assembly tools to compare other models, torque ranges and configurations for industrial assembly applications.
Atlas Copco ITB-A61-70-13 Supplier in UAE
Middle East ABC supplies the Atlas Copco ITB-A61-70-13 in the UAE for industrial manufacturing and assembly applications. Contact our team for product availability, technical information and quotation support for this model and other Atlas Copco cordless tightening tools.
For more information about Atlas Copco’s cordless tightening solutions, visit the official Atlas Copco Cordless Assembly Tools page.
