Straight Cordless Nutrunner Tensor ITB-S: Tensor ITB brings productivity and assembly quality to the next level. It belongs to the Atlas Copco Cordless Assembly Tools range.
Technical Specifications
| Speed | |
|---|---|
| Speed range max | 448 r/min |
| Noise And Vibrations | |
| Sound pressure | < 70 dB(A) |
| Sound standard | ISO15744 |
| Vibration standard | ISO28927-2 |
| Vibration value | < 2.5 m/s² |
| Battery Information | |
| Battery | Li-Io 18/36 V |
| Type of battery | 1 Li-ion |
| Weight incl. battery | 3.2 kg |
| Weight incl. battery | 7.1 lb |
| Torque | |
| Torque range max | 58 ft-lb |
| Torque range max | 80 Nm |
| Torque range min | 10 ft-lb |
| Torque range min | 15 Nm |
| Torque scatter 3s | ≤ 5 % |
| Design & Functions | |
| Model type | Straight |
| Output type | Square, Male |
| Shut-off system | Transducer |
| Tool family | ITB |
| Dimension & weight | |
| CS distance | 22.75 mm |
| Height | 88.5 mm |
| Length | 529 mm |
| Output size | 1/2" |
| Weight | 2.7 kg |
| Weight | 5.95 lb |
| Width | 74.5 mm |
| Power | |
| Motor power | 1500 W |
| Motor voltage type | d.c. |
| Motor voltage | 35 V |
| Certifications & standards | |
| Capability class | FK-MFU25 |
| CMIIT ID | 25J9918XC865 |
| EAC certified | Yes |
| EU Legislation | (EU) 2022/30, 2006/42/EC (MD), 2011/65/EU (RoHS), 2014/53/EU (RED), 2015/863/EU (RoHS amendment) |
| EU Standard | EN 18031-1:2024, EN 300 328 V2.2.2, EN 300 440 V2.1.1, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 893 V2.1.1, EN 50566:2017, EN 61000-6-2:2019, EN 61000-6-3:2021, EN 61000-6-4:2019, EN 62209-2:2010+AC:2019, EN 62841-1:2015+AC:2015+A11:2022, EN 62841-2-2:2014+AC:2015 |
| ETL control number | 3008099 |
| ETL listed | Yes |
| ETL text | 6 – 62841-2-2 |
| EU SAR value | 0.55 W/kg |
| FCC ID | XF6-M7DB7 |
| IC ID | 8407A-M7DB7 |
| KC certified | No |
| Tolerance Class | TK15 |
| UK Regulations | S.I. 2008/1597, S.I. 2012/3032, S.I. 2017/1206 |
| UK Standard | EN 300 328 V2.2.2, EN 300 440 V2.1.1, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 893 V2.1.1, EN 50566:2017, EN 61000-6-2:2019, EN 61000-6-3:2021, EN 61000-6-4:2019, EN 62209-2:2010+AC:2019, EN 62841-1:2015+AC:2015+A11:2022, EN 62841-2-2:2014+AC:2015 |
| WEEE | 4 – Large equipment >50cm |
Benefits
- Increased productivity- cable tool speeds
- Improved quality of the joint
- Quick installation and easy line rebalancing
- Easy to use- no extra training needed
- Continuous production and increased uptime
Features
- Integrated controller
- TrueAngle- angle compensation with gyroscope
- Wide range of tool models and accessories
- Rundown booster
- Optimized heat dissipation
- Dual antennas

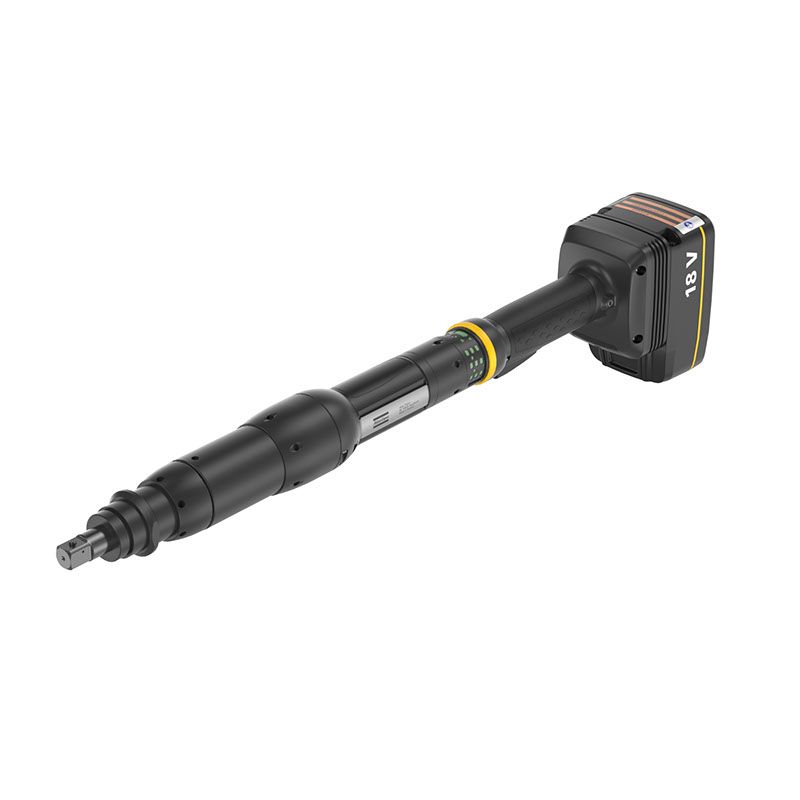

Atlas Copco ITB-S61-70-13
ITB-S61-70-13 (part no. 8436 0161 70) is part of the Atlas Copco Straight Cordless Nutrunner Tensor ITB-S range.
Atlas Copco ITB-S61-70-13 Information
Contact Middle East ABC for technical product information and quotation support for part no. 8436 0161 70 and other Atlas Copco cordless assembly tools.
