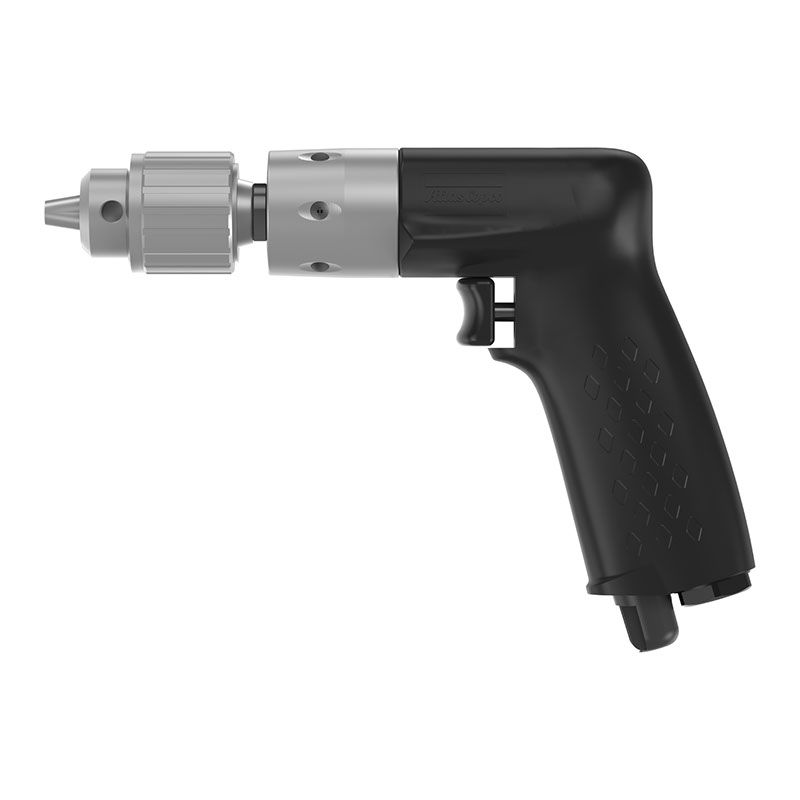

Pneumatic Drill – Pistol (LBB / LBP): LBB16 EP-024-AL. It belongs to the Atlas Copco Drilling Solutions range.
Technical Specifications
| Certifications, standards & directives | |
|---|---|
| EAC certified | Yes |
| EU Legislation | 2006/42/EC (MD) |
| EU Standard | ISO 11148-3 |
| UK Regulations | S.I. 2008/1597 |
| UK Standard | ISO 11148-3 |
| Noise & vibrations | |
| Sound power | 93 dB(A) |
| Sound pressure | 80 dB(A) |
| Sound standard | ISO15744 |
| Sound uncertainty | 3 dB(A) |
| Vibration standard | ISO28927-5 |
| Vibration value | <2.5 m/s² |
| Power | |
| Power | 0.4 hp |
| Power | 290 W |
| Dimension & weight | |
| Air inlet thread | 1/4 in |
| Chuck capacity range max | 6.5 mm |
| Chuck capacity range min | 0.5 mm |
| Diameter | 1.3 in |
| Diameter | 33 mm |
| Distance center to side | 16.5 mm |
| E | 13.8 mm |
| Front length | 1.34 in |
| Front length | 34 mm |
| Height | 5.16 in |
| Height | 131 mm |
| Length | 7.28 in |
| Length | 185 mm |
| Rec hose size | 1/4 in |
| Rec hose size | 6.3 mm |
| Thread size | UNF 3/8″ – 24 |
| Weight | 0.6 kg |
| Weight | 1.2 lb |
| Speed | |
| Free speed | 2400 r/min |
| Design & Functions | |
| Front type | Chuck |
| Model type | Pistol |
| SCIP | 696d5c04-cbce-4687-bfe8-e074eced35f5 |
| Air information | |
| Air consumption at free speed | 17 cfm |
| Air consumption at free speed | 8 l/s |
| Max working pressure | 7 bar |
| Max working pressure | 100 psig |
