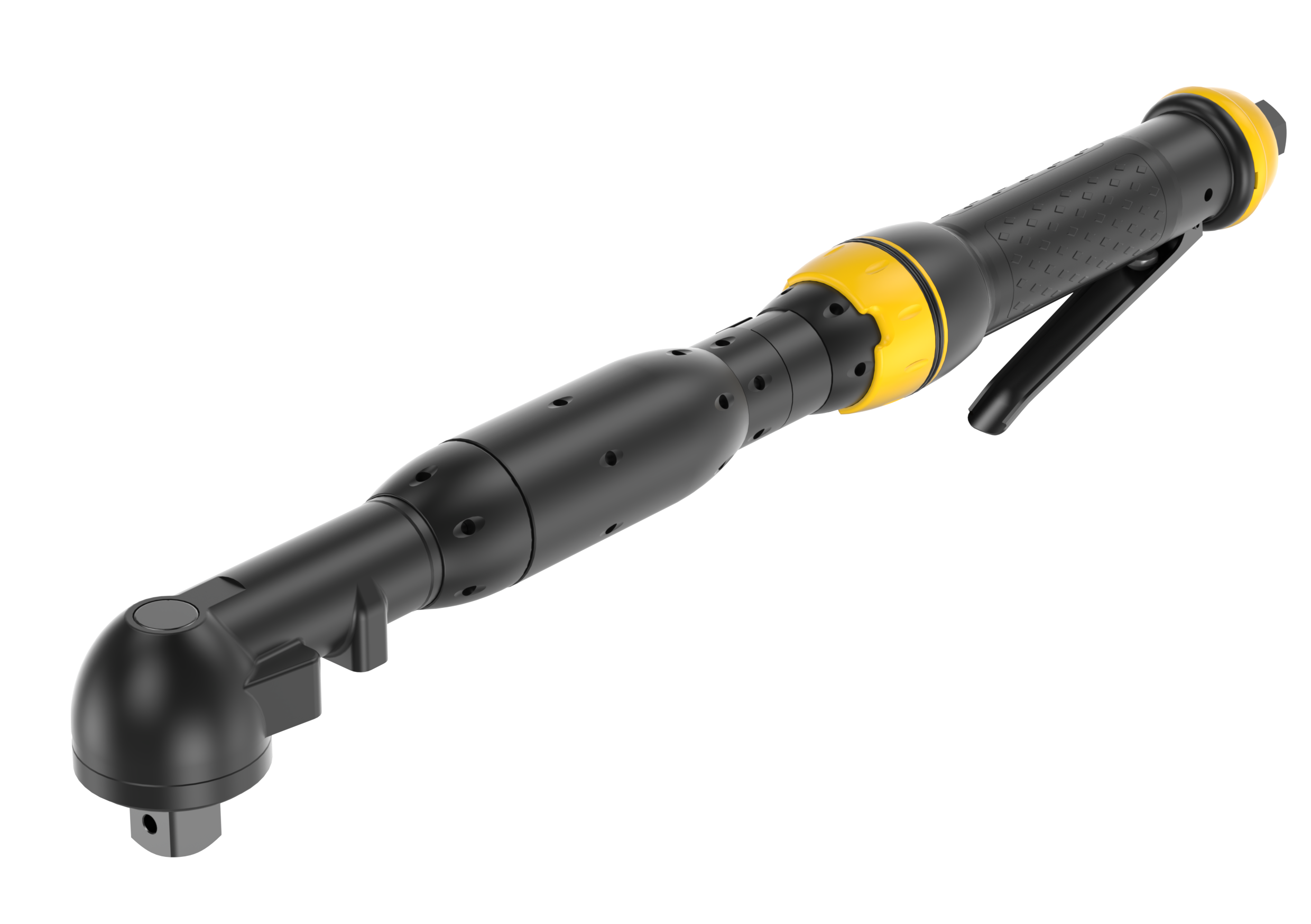

LTV39-2 R200-20

LTV39-2 R200-20

8431 0633 73

• Bolt size : M14 mm
• Square drive : 3/4 inch
• Torque range soft joint min : 110 Nm
• Torque range soft joint max : 200 Nm
• Free speed : 120  r/min
• Weight : 3 kg
• Weight : 6.6 lb
• Length : 505 mm
• Angle head height : 47 mm
• Angle head centre to side : 14 mm
• Air consumption at free speed : 16 l/s
• Air consumption at free speed : 34 cfm
• Air inlet thread : 1/4 inch
• Sound pressure : 81 dB(A)
• Max working pressure : 7 bar
• Max working pressure : 100 psig
• Model type : Angle
• Shut-off : Yes
• WEEE : 0
• Reversible : Yes
• Sound power : 92 dB(A)
• Torque range soft joint max : 148 ft lb
• Torque range soft joint min : 82 ft lb
• Recommended hose size: 10 mm
