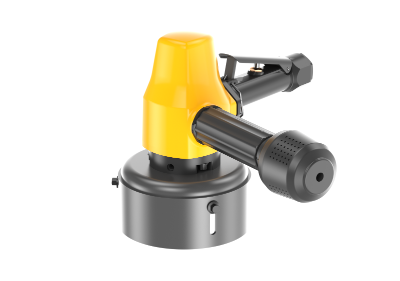

The Atlas Copco LSS53 S072-C13 is an industrial grinder developed for professional grinding applications in demanding production and workshop environments. It is designed for applications requiring reliable performance, consistent operation and dependable material removal across a range of industrial grinding tasks.
Technical Specifications
| Design & Functions | |
|---|---|
| Model Type | Vertical |
| Motor Type | Vane |
| Max Wheel Dia | 125 mm |
| Spindle Thread | 5/8-11 UNC |
| Spindle Length | 30 mm |
| Spindle Length | 1.2 inch |
| Support Handle Included | Yes |
| Auto Balancer | No |
| Lubrication Free | No |
| Performance | |
|---|---|
| Max Free Speed | 7,200 r/min |
| Max Output | 1.3 kW |
| Max Output | 1.8 HP |
| Air & Pressure | |
|---|---|
| Max Working Pressure | 7 bar |
| Max Working Pressure | 100 psig |
| Air Consumption At Free Speed | 8 l/s |
| Air Consumption At Free Speed | 17 cfm |
| Air Consumption At Max Output | 26 l/s |
| Air Consumption At Max Output | 55 cfm |
| Air Inlet Thread BSP | 1/2 inch |
| Rec Hose Size | 13 mm |
| Rec Hose Size | 1/2 inch |
| Dimensions & Weight | |
|---|---|
| Weight | 3.1 kg |
| Weight | 6.8 lb |
| Length | 285 mm |
| Length | 11.2 inch |
| Height | 198 mm |
| Height | 7.8 inch |
| Height Over Spindle | 180 mm |
| Height Over Spindle | 7.1 inch |
| Noise & Vibrations | |
|---|---|
| Sound Pressure | 76 dB(A) |
| Sound Standard | ISO15744 |
| Sound Uncertainty | 3 dB(A) |
| Vibration Value | 2.8 m/s2 |
| Vibration Uncertainty | 1.3 m/s2 |
| Vibration Standard | ISO28927-1 |
| Certifications, Standards & Directives | |
|---|---|
| EAC Certified | Yes |
| EC Standard | ISO 11148-7 |
| EU Directives | 2006/42/EC |
| UK Legislation | S.I. 2008/1597 |
| UK Standard | ISO 11148-7 |
Atlas Copco LSS53 S072-C13 Description
The Atlas Copco LSS53 S072-C13 is a Vertical industrial grinder with a maximum free speed of 7,200 r/min and maximum output of 1.3 kW (1.8 HP). It features a Vane motor, supports a maximum wheel diameter of 125 mm and operates at a maximum working pressure of 7 bar (100 psig).
Air consumption at free speed is 8 l/s (17 cfm), while air consumption at maximum output is 26 l/s (55 cfm). The LSS53 S072-C13 has a 1/2 inch BSP air inlet thread and recommended hose size of 13 mm (1/2 inch). It features a 5/8-11 UNC spindle thread with a spindle length of 30 mm (1.2 inch).
The grinder weighs 3.1 kg (6.8 lb), has a length of 285 mm (11.2 inch) and a height of 198 mm (7.8 inch). Height over spindle is 180 mm (7.1 inch). A support handle is included, while the supplied specifications list Auto Balancer as No and Lubrication Free as No.
Applications
The Atlas Copco LSS53 S072-C13 can be selected for professional industrial grinding requirements where its Vertical configuration, 7,200 r/min maximum free speed, 1.3 kW maximum output and 125 mm maximum wheel diameter match the required grinding process.
Key Features
- Vertical model configuration
- Vane motor
- Max free speed: 7,200 r/min
- Max output: 1.3 kW / 1.8 HP
- Max wheel diameter: 125 mm
- Max working pressure: 7 bar / 100 psig
- Air consumption at free speed: 8 l/s / 17 cfm
- Air consumption at max output: 26 l/s / 55 cfm
- Air inlet thread BSP: 1/2 inch
- Recommended hose size: 13 mm / 1/2 inch
- Spindle thread: 5/8-11 UNC
- Spindle length: 30 mm / 1.2 inch
- Support handle included: Yes
- Auto Balancer: No
- Lubrication Free: No
- Weight: 3.1 kg / 6.8 lb
- Length: 285 mm / 11.2 inch
- Height: 198 mm / 7.8 inch
- Height over spindle: 180 mm / 7.1 inch
- Sound pressure: 76 dB(A)
- Sound uncertainty: 3 dB(A)
- Vibration value: 2.8 m/s2
- Vibration uncertainty: 1.3 m/s2
Why Choose the Atlas Copco LSS53 S072-C13?
The Atlas Copco LSS53 S072-C13 combines a 7,200 r/min maximum free speed with 1.3 kW maximum output, a Vertical configuration and a 125 mm maximum wheel diameter. Its supplied technical data also includes a 3.1 kg weight, 285 mm length, 7 bar maximum working pressure, 5/8-11 UNC spindle thread and specified air consumption values for professional industrial grinding applications.
The model is EAC certified. Its supplied EC standard is ISO 11148-7 and the listed EU directive is 2006/42/EC. UK legislation is listed as S.I. 2008/1597 with UK standard ISO 11148-7. Sound pressure is rated at 76 dB(A) according to ISO15744 with a sound uncertainty of 3 dB(A). Vibration is rated at 2.8 m/s2 with a vibration uncertainty of 1.3 m/s2 according to ISO28927-1.
