The Atlas Copco LSS64 S085-18 is an industrial grinder developed for professional grinding applications in demanding production and workshop environments. It is designed for applications requiring reliable performance, consistent operation and dependable material removal across a range of industrial grinding tasks.
Technical Specifications
| Design & Functions | |
|---|---|
| Model type | Vertical |
| Motor type | Vane |
| Max wheel dia | 180 mm |
| Support handle included | Yes |
| Lubrication Free | No |
| Auto balancer | No |
| Spindle thread | 5/8-11 UNC |
| Max wheel dia | 7 inch |
| Spindle length | 1.1 inch |
| Spindle length | 29 mm |
| Performance | |
|---|---|
| Max free speed | 8,500 r/min |
| Max output | 3.5 HP |
| Max output | 2.6 kW |
| Air & Pressure | |
|---|---|
| Max working pressure | 7 bar |
| Max working pressure | 100 psig |
| Air consumption at free speed | 13 l/s |
| Air consumption at free speed | 28 cfm |
| Air consumption at max output | 50 l/s |
| Air consumption at max output | 106 cfm |
| Air inlet thread BSP | 1/2 inch |
| Rec hose size | 16 mm |
| Rec hose size | 5/8 inch |
| Dimensions & Weight | |
|---|---|
| Weight | 4.7 kg |
| Weight | 10.4 lb |
| Height | 211 mm |
| Height | 8.3 inch |
| Length | 380 mm |
| Length | 15 inch |
| Height over spindle | 7.9 inch |
| Height over spindle | 201 mm |
| Noise & Vibrations | |
|---|---|
| Vibration value | 4.6 m/s2 |
| Sound power | 97 dB(A) |
| Sound pressure | 86 dB(A) |
| Sound standard | ISO15744 |
| Sound uncertainty | 3 dB(A) |
| Vibration standard | ISO28927-1 |
| Vibration uncertainty | 1.5 m/s2 |
| Certifications, Standards & Directives | |
|---|---|
| EAC certified | Yes |
| EC standard | ISO 11148-7 |
| EU directives | 2006/42/EC |
| UK legislation | S.I. 2008/1597 |
| UK standard | ISO 11148-7 |

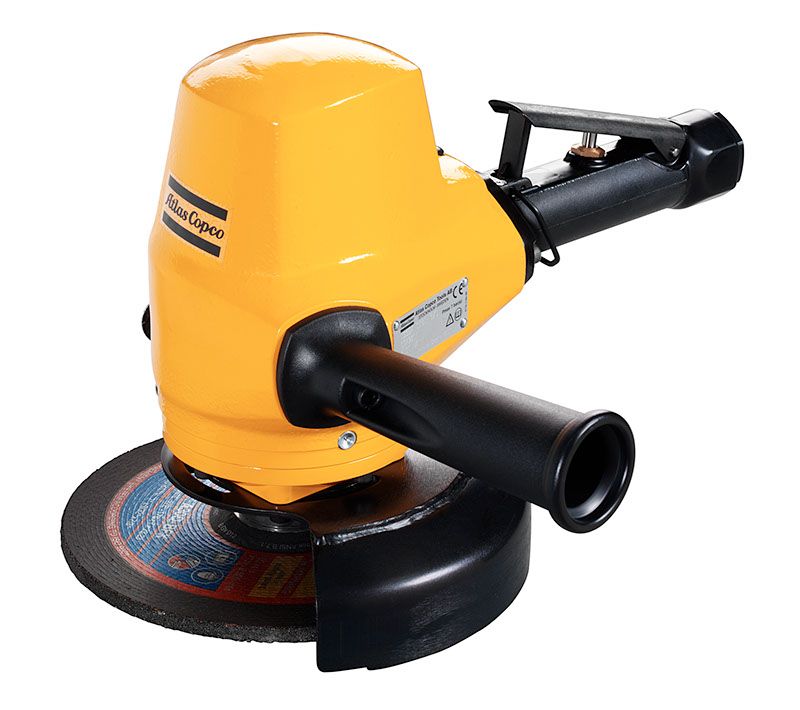

Atlas Copco LSS64 S085-18 Vertical Industrial Grinder
The Atlas Copco LSS64 S085-18 is a vertical industrial grinder. Its supplied specifications include motor type: Vane; max free speed: 8,500 r/min; max wheel dia: 180 mm; max output: 3.5 HP; max working pressure: 7 bar; max working pressure: 100 psig; spindle thread: 5/8-11 UNC; max output: 2.6 kW; max wheel dia: 7 inch.
For planning the air supply for this pneumatic grinder, the specified connections and consumption are: Air consumption at free speed: 13 l/s; Air consumption at free speed: 28 cfm; Air consumption at max output: 50 l/s; Air consumption at max output: 106 cfm; Air inlet thread BSP: 1/2 inch; Rec hose size: 16 mm; Rec hose size: 5/8 inch.
Applications
This vertical industrial grinder is intended for professional grinding requirements in production and workshop environments. Match the task to its specified abrasive diameter, speed and output, with an air supply appropriate to the listed working pressure.
Key Features
- Model type: Vertical
- Motor type: Vane
- Max free speed: 8,500 r/min
- Max wheel dia: 180 mm
- Max output: 3.5 HP
- Max working pressure: 7 bar
- Max working pressure: 100 psig
- Support handle included: Yes
- Spindle thread: 5/8-11 UNC
- Max output: 2.6 kW
- Max wheel dia: 7 inch
Why Choose the Atlas Copco LSS64 S085-18?
The LSS64 S085-18 provides a vertical configuration with a vane motor. Its 8,500 r/min maximum free speed and 2.6 kW maximum output provide concrete specifications for comparing this Atlas Copco grinder with your industrial grinding requirements. The specified 180 mm / 7 inch maximum wheel diameter is another selection consideration.
The supplied certification, noise and vibration information is: Vibration value: 4.6 m/s2; EAC certified: Yes; EC standard: ISO 11148-7; EU directives: 2006/42/EC; Sound power: 97 dB(A); Sound pressure: 86 dB(A); Sound standard: ISO15744; Sound uncertainty: 3 dB(A); UK legislation: S.I. 2008/1597; UK standard: ISO 11148-7; Vibration standard: ISO28927-1; Vibration uncertainty: 1.5 m/s2.
Related Atlas Copco Grinders
Middle East ABC supplies a wide range of Atlas Copco Grinders for different professional and industrial grinding requirements. Explore available models based on grinder type, speed, output, wheel size and application requirements.
Atlas Copco LSS64 S085-18 Supplier in UAE
Middle East ABC supplies the Atlas Copco LSS64 S085-18 in UAE for customers looking for Atlas Copco industrial grinders and quotation support. Contact Middle East ABC to request pricing and availability for this model.
