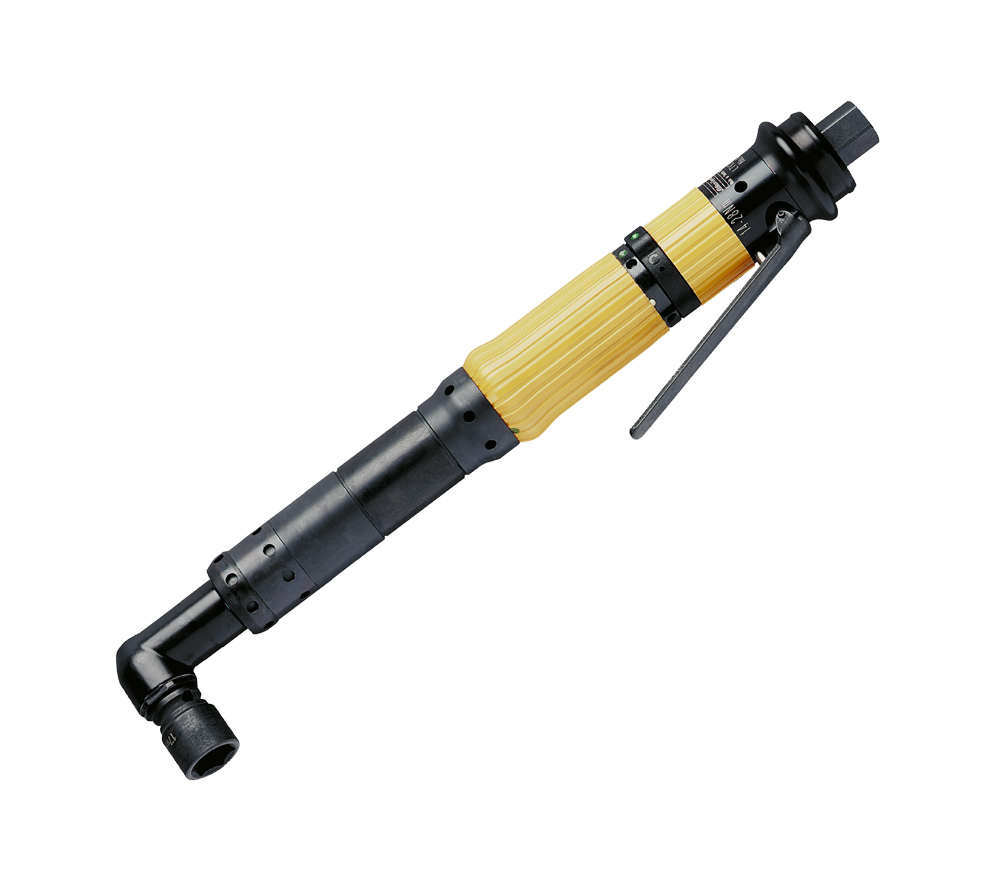

LTV28 N28-10

LTV28 N28-10

8431060084

• Bolt size : M8 mm
• Square drive : 3/8 inch
• Torque range soft joint min : 14 Nm
• Torque range soft joint max : 28 Nm
• Free speed : 500 r/min
• Weight : 1.3 kg
• Weight : 2.9 lb
• Length : 325 mm
• Angle head height : 29.5 mm
• Angle head centre to side : 13.5 mm
• Air consumption at free speed : 11 l/s
• Air consumption at free speed : 23 cfm
• Recommended hose size : 10 mm
• Air inlet thread : 1/4 inch
• Sound pressure : 76 dB(A)
• Sound standard : ISO15744
• Sound uncertainty : 3 dB(A)
• Vibration standard : ISO28927-2
• Vibration value : <2.5 m/s²
• EAC certified : Yes
• EC standard : ISO 11148-6
• Max working pressure : 7 bar
• Max working pressure : 100 psig
• Model type : Angle
• Shut-off : Yes
• WEEE : 0
• EU directives : 2006/42/EC
• Reversible : No
• Torque range soft joint max : 21 ft lb
• Torque range soft joint min : 10 ft lb
