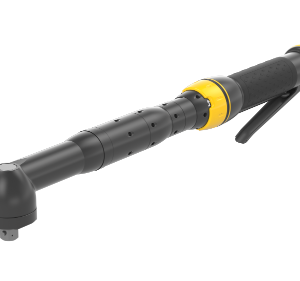

LTV29-2 R16-Q

LTV29-2 R16-Q

8431063124

• Bolt size : M6 mm
• Square drive : 1/4 inch
• Torque range soft joint min : 9 Nm
• Torque range soft joint max : 16 Nm
• Free speed : 850 r/min
• Weight : 1.3 kg
• Weight : 2.9 lb
• Length : 351 mm
• Angle head height : 44 mm
• Angle head centre to side : 11 mm
• Air consumption at free speed : 10 l/s
• Air consumption at free speed : 21 cfm
• Recommended hose size : 10 mm
• Air inlet thread : 1/4 inch
• Sound pressure : 80 dB(A)
• Sound standard : ISO15744
• Sound uncertainty : 3 dB(A)
• Vibration standard : ISO28927-2
• Vibration value : <2.5 m/s²
• EAC certified : Yes
• EC standard : ISO 11148-6
• Max working pressure : 7 bar
• Max working pressure : 100 psig
• Model type : Angle
• Shut-off : Yes
• WEEE : 0
• EU directives : 2006/42/EC
• Ford certification : CA N6/7 TR
• Reversible : Yes
• Torque range soft joint max : 12 ft lb
• Torque range soft joint min : 7 ft lb
