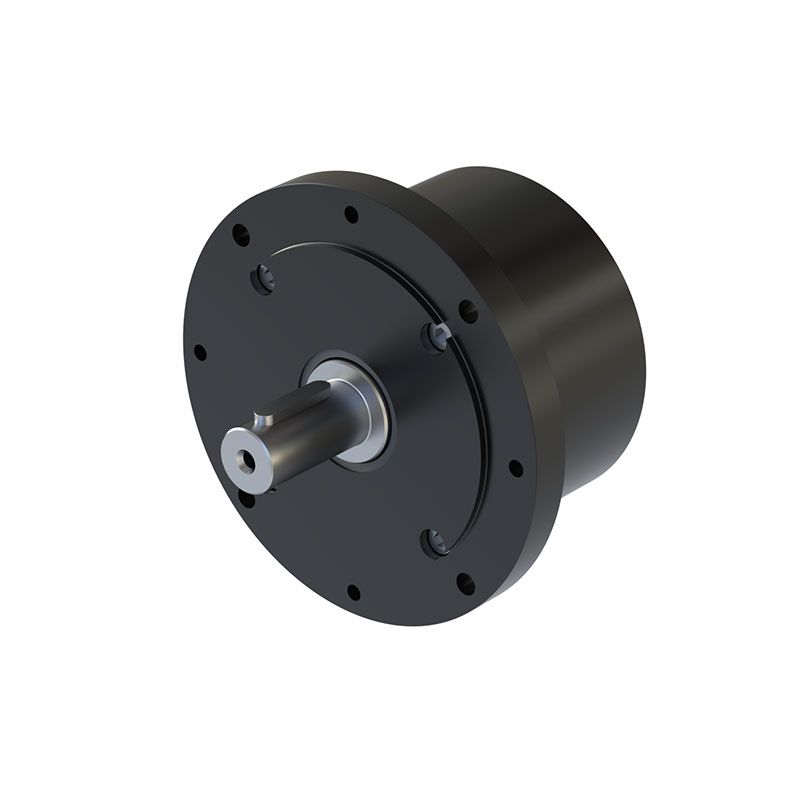

Industrial Air Motors: LZB22-RL-AR003-11. It belongs to the Atlas Copco Industrial Air Motors range.
Technical Specifications
| Speed | |
|---|---|
| Free speed | 290 r/min |
| Air information | |
| Air consumption at max output | 10.6 cfm |
| Air consumption at max output | 5 l/s |
| Max working pressure | 7 bar |
| Max working pressure | 101 psig |
| Product Benefits Group | |
| Benefits | Adaptability to various design, Lower air consumption, Reduce maintenance care, Compatible with chemical and food industries |
| Features | Long and slim profile, Zero-clearance motor design, Lubrication free, Large stainless steel range, Brake option available, ATEX certified |
| Certifications, standards & directives | |
| ATEX code dust | Ex II 2 D Ex h IIIC T85°C Db |
| ATEX code gas | Ex II 2 G Ex h IIC T6 Gb |
| ATEX | Yes |
| ATEX Max Temperature | 85 °C |
| ATEX Technical file | 9836 4610 00 |
| Compliance with other EU Directives | 2014/34/EU (ATEX) |
| Compliance with other UK Regulations | S.I. 2016/1107 |
| EU Legislation | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7) |
| EU Standard | EN 1127-1:2019, EN ISO 12100:2010, EN ISO 80079-36:2016, EN ISO 80079-37:2016 |
| UK Regulations | S.I. 2008/1597 (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7) |
| UK Standard | BS EN 1127-1:2019, BS EN ISO 12100:2010, BS EN ISO 80079-36:2016, BS EN ISO 80079-37:2016 |
| Safety | |
| Ingress protection rating | IP66/IP68/IP69 |
| Temperature | |
| Max ambient temperature | 40 °C |
| Design & Functions | |
| Built in brake | No |
| Rotation direction | Reversible |
| SCIP | 5c0094d2-f59a-4fde-b7cd-1d4b6db13781 |
| Shaft loading code | b |
| Shaft type | Keyed |
| Vane type | Lubrication free |
| Dimension & weight | |
| Inlet hose size | 0.3 in |
| Inlet hose size | 8 mm |
| Outlet hose size | 0.3 in |
| Outlet hose size | 8 mm |
| Weight | 0.83 kg |
| Weight | 1.83 lb |
| Material | |
| External parts material | Stainless steel |
| Power | |
| Max output | 0.21 hp |
| Max output | 0.16 kW |
| Speed at max output | 160 r/min |
| Torque | |
| Min starting torque | 10.3 ft-lb |
| Min starting torque | 14 Nm |
| Stall torque | 15.5 ft-lb |
| Stall torque | 21 Nm |
| Torque at max output | 7.7 ft-lb |
| Torque at max output | 10.5 Nm |
