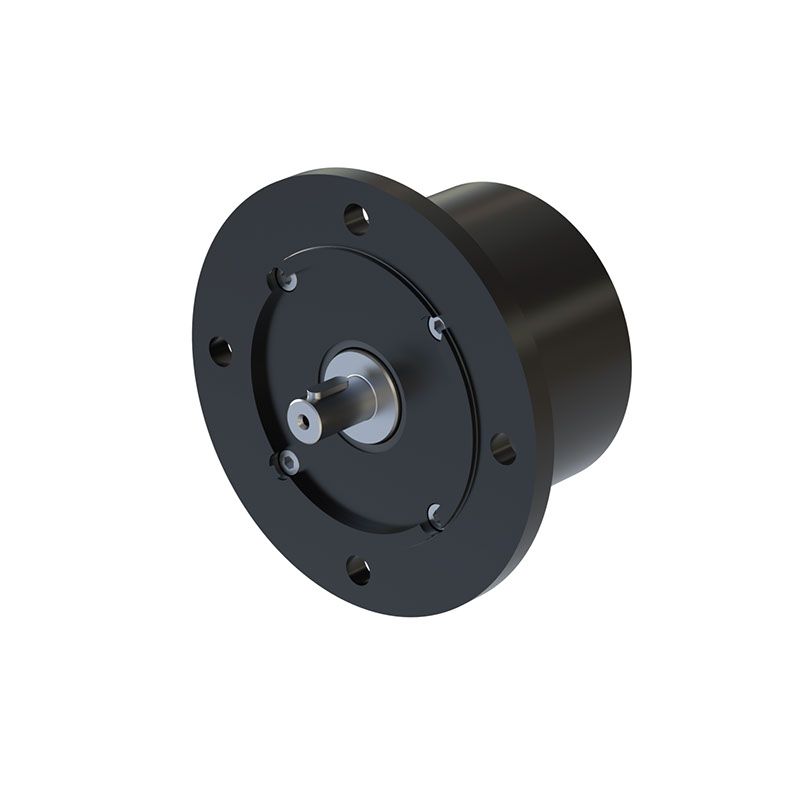

Industrial Air Motors: LZL03-L-P-IEC. It belongs to the Atlas Copco Industrial Air Motors range.
Technical Specifications
| Air information | |
|---|---|
| Air consumption at max output | 61 cfm |
| Air consumption at max output | 29 l/s |
| Safety | |
| Ingress protection rating | IP66 |
| Dimension & weight | |
| Inlet hose size | 0.5 in |
| Inlet hose size | 13 mm |
| Outlet hose size | 1 in |
| Outlet hose size | 20 mm |
| Weight | 3.8 kg |
| Weight | 8.4 lb |
| Material | |
| External parts material | Powder coated cast iron |
| Speed | |
| Free speed | 11000 r/min |
| Power | |
| Max output | 1.4 hp |
| Max output | 1.05 kW |
| Speed at max output | 5300 r/min |
| Design & Functions | |
| Built in brake | No |
| Rotation direction | Reversible |
| SCIP | b70d15fd-8301-4fea-893a-db481d215b0e |
| Shaft type | Keyed |
| Vane type | Lubrication free |
| Torque | |
| Min starting torque | 2.1 ft-lb |
| Min starting torque | 2.8 Nm |
| Stall torque | 2.8 ft-lb |
| Stall torque | 3.8 Nm |
| Torque at max output | 1.4 ft-lb |
| Torque at max output | 1.9 Nm |
| Certifications, standards & directives | |
| ATEX code dust | Ex II 2 D Ex h IIIC T85°C Db X |
| ATEX code gas | Ex II 2 G Ex h IIC T6 Gb X |
| ATEX | Yes |
| ATEX Max Temperature | 85 °C |
| ATEX Technical file | 9836 4610 00 |
| Compliance with other EU Directives | 2014/34/EU (ATEX) |
| Compliance with other UK Regulations | S.I. 2016/1107 |
| EU Legislation | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7) |
| EU Standard | EN 1127-1:2019, EN ISO 12100:2010, EN ISO 80079-36:2016, EN ISO 80079-37:2016 |
| UK Regulations | S.I. 2008/1597 (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7) |
| UK Standard | BS EN 1127-1:2019, BS EN ISO 12100:2010, BS EN ISO 80079-36:2016, BS EN ISO 80079-37:2016 |
