Take productivity to new levels with the revolutionary Straight Cable Nutrunner Tensor STR. The Tensor STR offers a wide range of options to improve the operator experience and increase the efficiency of your assembly line, which includes faster tightening speeds and exceptional ergonomics. The Tensor STR connects directly to the Power Focus 8 controller for a complete error-proofing solution in safety-critical applications.
Next level ergonomics and productivity with safety critical accuracy
Technical Specifications
| Identification | |
|---|---|
| Order number | 8436626120 |
| Noise & vibrations | |
| Sound pressure | <70 dB(A) |
| Vibration value | <2.5 m/s² |
| Design & Functions | |
| Shut-off system | Transducer |
| Tool family | STR |
| Model type | Straight |
| Output type | Square, Male |
| Spline/Mounting | 2/2 |
| Power | |
| Motor power | 1500 W |
| Motor voltage type | 3 a.c. |
| Motor voltage | 200 V |
| Torque | |
| Torque scatter 3s | ≤ 5 % |
| Torque range max | 88 ft-lb |
| Torque range min | 26 ft-lb |
| Dimension & weight | |
| CS distance | 26.5 mm |
| Length | 491 mm |
| Output size | 1/2" |
| Weight | 2.3 kg |
| Speed | |
| Speed range max | 495 r/min |
| Packaging | |
| Package dimensions | 11 x 57.8 x 8.6 cm |
| Package weight | 2.908 kg |

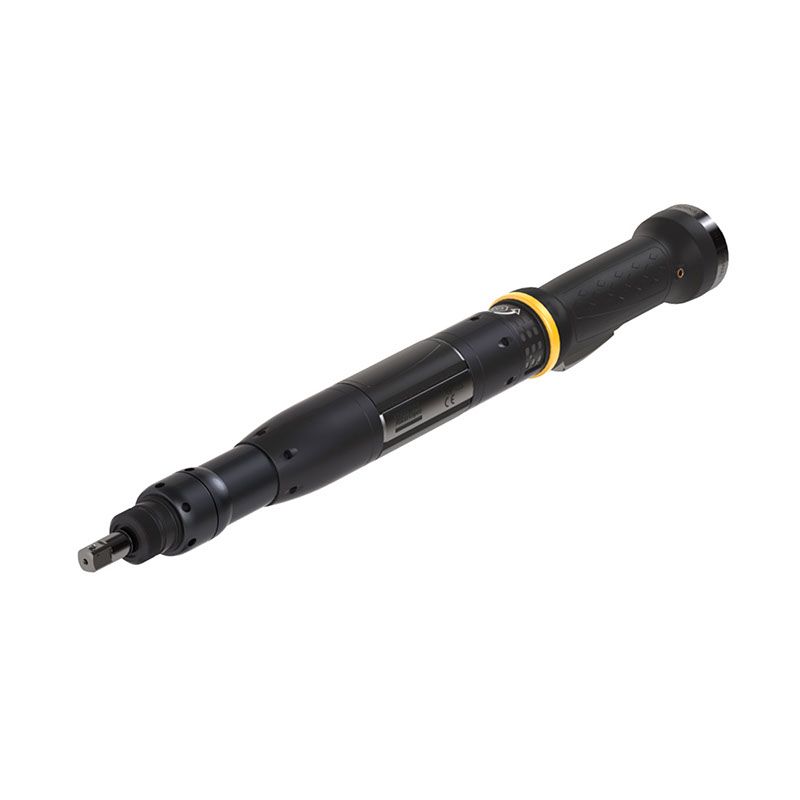

Atlas Copco Straight Cable Nutrunner Tensor STR ETD STR61-120-13
Straight Cable Nutrunner Tensor STR ETD STR61-120-13 (SKU 8436626120) is part of the Atlas Copco Electric Assembly Tools range in the Assembly Tools and Solutions category. Check the model and configuration against your application before ordering.
Atlas Copco Straight Cable Nutrunner Tensor STR ETD STR61-120-13 Information
Contact Middle East ABC for technical product information, availability and quotation support for SKU 8436626120 and other Atlas Copco products.
