Technical Specifications
| Design & Functions | |
|---|---|

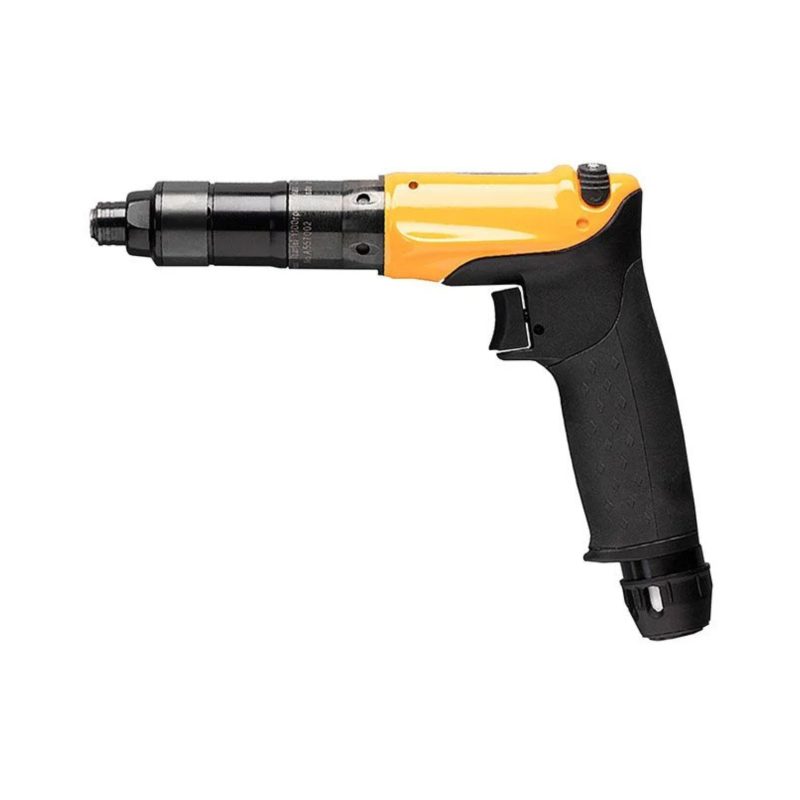

| Model type | Pistol |
| Output type | Hexagon, Female |
| SCIP | d1196d17-abfb-41fd-8563-7e39f8d98348 |
| Shut-off | Shut-off |
| Start trigger | Trigger lever |
| Dimension & Weight | |
|---|---|
| Air inlet thread | 1/4 in |
| CS distance | 18 mm |
| Length | 210 mm |
| Output size | 1/4" |
| Recommended hose size | 10 mm |
| Weight | 1 kg |
| Noise & Vibrations | |
|---|---|
| Sound pressure | 78 dB(A) |
| Sound standard | ISO15744 |
| Sound uncertainty | 3 dB(A) |
| Vibration standard | ISO28927-2 |
| Vibration value | <2.5 m/s2 |
| Speed | |
|---|---|
| Free speed | 500 r/min |
| Air Information | |
|---|---|
| Air consumption at free speed | 7.5 l/s |
| Max working pressure | 7 bar |
| Certifications, Standards & Directives | |
|---|---|
| EAC certified | Yes |
| EU directives | 2006/42/EC |
| EC standard | ISO 11148-6 |
| UK legislation | S.I. 2008/1597 |
| UK standard | ISO 11148-6 |
| Torque | |
|---|---|
| Torque range max | 12.5 Nm |
| Torque range min | 3.5 Nm |
| Torque range soft joint max | 12.5 Nm |
| Torque range soft joint min | 3.5 Nm |
