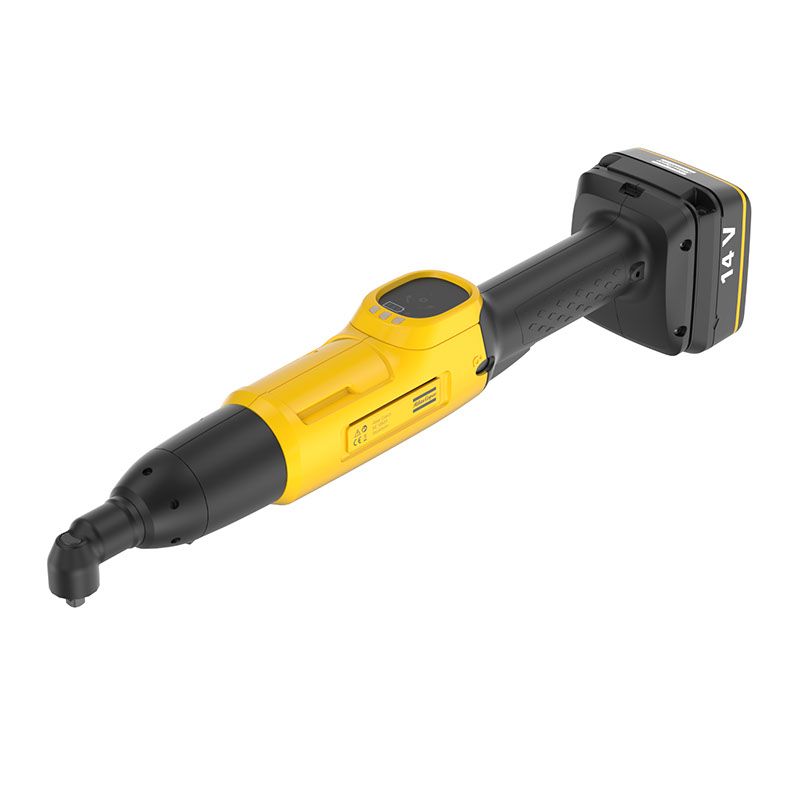

Angle Cordless Nutrunner XCB: Built for the operator, enabling maximum productivity. It belongs to the Atlas Copco Cordless Assembly Tools range.
Technical Specifications
| Torque | |
|---|---|
| Torque range max | 59 ft-lb |
| Torque range max | 80 Nm |
| Torque range min | 19.9 ft-lb |
| Torque range min | 27 Nm |
| Torque scatter 3s | ≤ 10 % |
| Power | |
| Motor power | 290 W |
| Motor voltage | 18 V |
| Noise And Vibrations | |
| Sound power | 86 dB(A) |
| Sound pressure | 75 dB(A) |
| Sound standard | ISO15744 |
| Sound uncertainty | 3 dB(A) |
| Vibration standard | ISO28927-2 |
| Vibration value | <2.5 m/s² |
| Certifications & standards | |
| CMIIT ID | 2016AJ1533 |
| EAC certified | No |
| EU Legislation | (EU) 2022/30, 2006/42/EC (MD), 2011/65/EU (RoHS), 2014/53/EU (RED), 2015/863/EU (RoHS amendment) |
| EU Standard | EN 18031-1:2024, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 489-33 V2.2.1, EN 61000-6-2:2019, EN 61000-6-4:2019, EN 62841-1:2015 + AC:2015 + A11:2022, EN 62841-2-2:2014 + AC:2015 |
| ETL control number | 3008099 |
| ETL listed | Yes |
| ETL text | 6 – 62841-2-2 |
| EU SAR value | 0.54 W/kg |
| FCC ID | PVH0965 |
| IC ID | 5325A-0965 |
| KC certified | Yes |
| UK Regulations | S.I. 2008/1597, S.I. 2012/3032, S.I. 2017/1206 |
| UK Standard | EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 489-33 V2.2.1, EN 61000-6-2:2019, EN 61000-6-4:2019, EN 62841-1:2015 + AC:2015 + A11:2022, EN 62841-2-2:2014 + AC:2015 |
| WEEE | 5 – Small equipment <50cm |
| Battery Information | |
| Battery | Li-Io 14/18/36 V |
| Design & Functions | |
| Communication type | Bluetooth/WLAN |
| Model type | Angle |
| MSIP | R-R-50A-XCB-P |
| Output type | Square, Male |
| Shut-off system | Clutch |
| Tightening direction | CW |
| Tool family | XCB |
| Speed | |
| Max speed 14V | 91 r/min |
| Max speed 18V | 126 r/min |
| Max speed 36V | 160 r/min |
| Speed range max | 160 r/min |
| Dimension & weight | |
| Height | 89 mm |
| Length | 517 mm |
| Output size | 1/2" |
| Weight | 2.1 kg |
| Weight | 4.6 lb |
Benefits
- Ready to use out of the box
- Connect and get process control
- Durable and ergonomic design
- Mechanical clutch with low mean shift
- Easy to program through web-based UI
Features
- Excellent torque repeatability
- ≤ 10% torque scatter 3s
- Select battery size for your need
- Re-hit detection
- Report tightening results to controller
- Batch counting in connected mode
Atlas Copco XCB-A-80-13
XCB-A-80-13 (part no. 8431 6100 80) is part of the Atlas Copco Angle Cordless Nutrunner XCB range.
Atlas Copco XCB-A-80-13 Information
Contact Middle East ABC for technical product information and quotation support for part no. 8431 6100 80 and other Atlas Copco cordless assembly tools.
