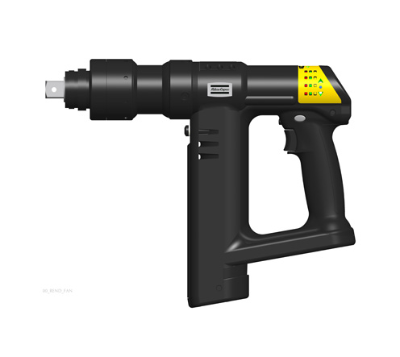

ETP ST101-1000-25-F

Description

ETP ST101-1000-25-F

8433231002

• Model type : Pistol
• Torque range max : 1,000 Nm
• Torque range min : 300 Nm
• Torque range max : 735 ft lb
• Torque range min : 220 ft lb
• Weight : 6.4 kg
• Weight : 14.1 lb
• Speed : 99 r/min
• Square drive : 1 inch
• Length : 364 mm
• CS distance : 33.5 mm
• Sound pressure : <70 dB(A)
• Sound standard : ISO15744
• Vibration value : <2.5 m/s²
• Vibration standard : ISO28927-2
• CCC certified : Yes
• KC ID : R-REI-50A-ETPST101
• KC certified : Yes
• EAC certified : Yes
• Motor voltage type : 3 a.c.
• EC standard : EN 61010-1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-2:2005, EN 61000-6-3:2007 A1:2011/AC:2012
• Motor power : 1,500 W
• Motor voltage : 200 V
• Tensor : ST Revo
• WEEE : 5 – Small equipment <50cm
• EU directives : 2006/42/EC, 2011/65/EU, 2014/30/EU
• Spline/Mounting : 5
