Description

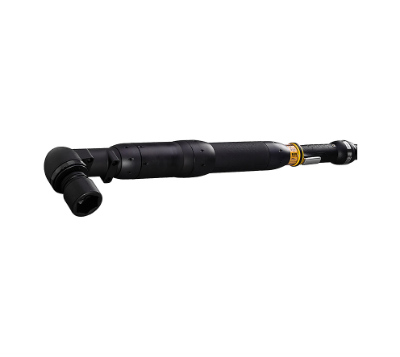

- Model type : Angle
- Torque range min : 90 Nm
- Torque range max : 370 Nm
- Torque range min : 66 ft lb
- Torque range max : 273 ft lb
- Speed : 280 r/min
- Motor power : 1,500 W
- Motor voltage : 200 V
- Weight : 8.3 kg
- Weight : 18.3 lb
- Length : 672 mm
- Height : 103.5 mm
- CS distance : 33 mm
- CCC certified : No
- CQC certified : Yes
- EAC certified : Yes
- EC standard : EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1
- EU directives : 2006/42/EC, 2011/65/EU, 2014/30/EU
- Front part interface : 370 HAD
- KC ID : R-REI-50A-ETVST101
- KC certified : Yes
- Motor voltage type : 3 a.c.
- Sound pressure : <70 dB(A)
- Sound standard : ISO15744
- Tensor : ST
- UK legislation : S.I. 2008/1597, S.I. 2012/3032, S.I. 2016/1091
- UK standard : EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-6-2:2005, EN 61000-6-3:2007, EN 61010-1
- Vibration standard : ISO28927-2
- Vibration value : <2.5 m/s²
- WEEE : 4 – Large equipment >50cm
