| Torque | |
|---|---|
| Max working torque fwd | 2440 Nm |
| Max torque reverse | 3790 Nm |
| Min working torque fwd | 1.22 Nm |
| Torque limited | No |
| Air information | |
| Air inlet thread size (in) | 1/2 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 1 in |
| Min hose diam (5 m hose length) | 25 mm |
| Noise & vibrations | |
| Sound Power | 110 dB(A) |
| Sound Pressure | 99 dB(A) |
| Uncertainty vibration-K | 4.1 m/s² |
| Vibration (m/s²) | 18 |
| Vibration | 18 m/s² |
| Speed | |
| Free Speed | 3500 rpm |
| Air consumption at free speed | 55 l/s |
| Size & Weight | |
| Length (L) | 360 mm |
| Side to Center | 46 mm |
| Weight | 10.4 kg |
| Design & Functions | |
| Blow per minute | 1020 |
| Body | Aluminium |
| Clutch housing | Steel |
| Clutch lubrication type | Grease |
| Handle type | D-handle |
| Impact mecanism | 2-jaws |
| Main Material type | Aluminium |
| Output drive size (in) | #5 Spline |
| Output drive type | #5 Spline |
| Output retainer type | Hole |
| Side handle | Yes |
| Starting system | Trigger |

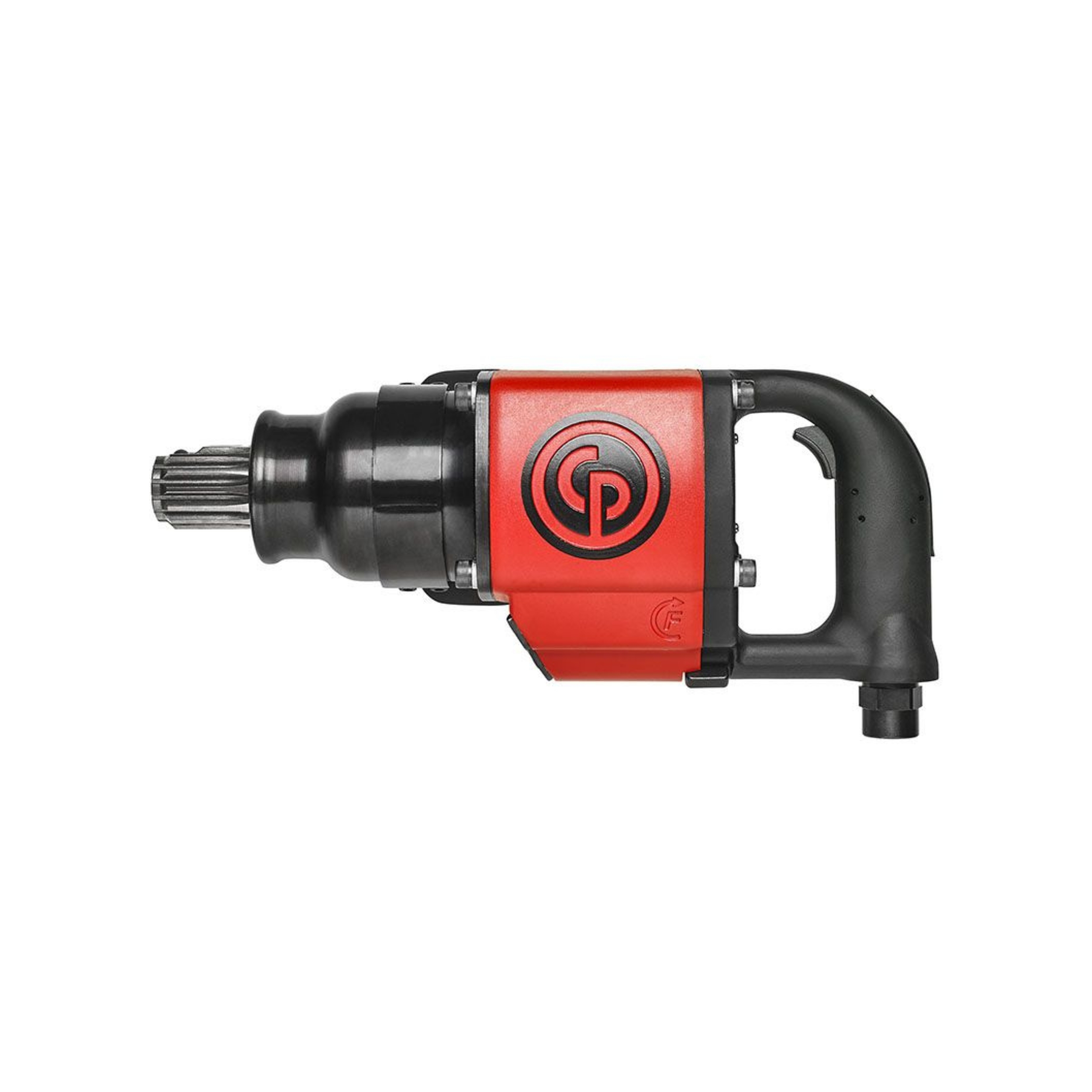

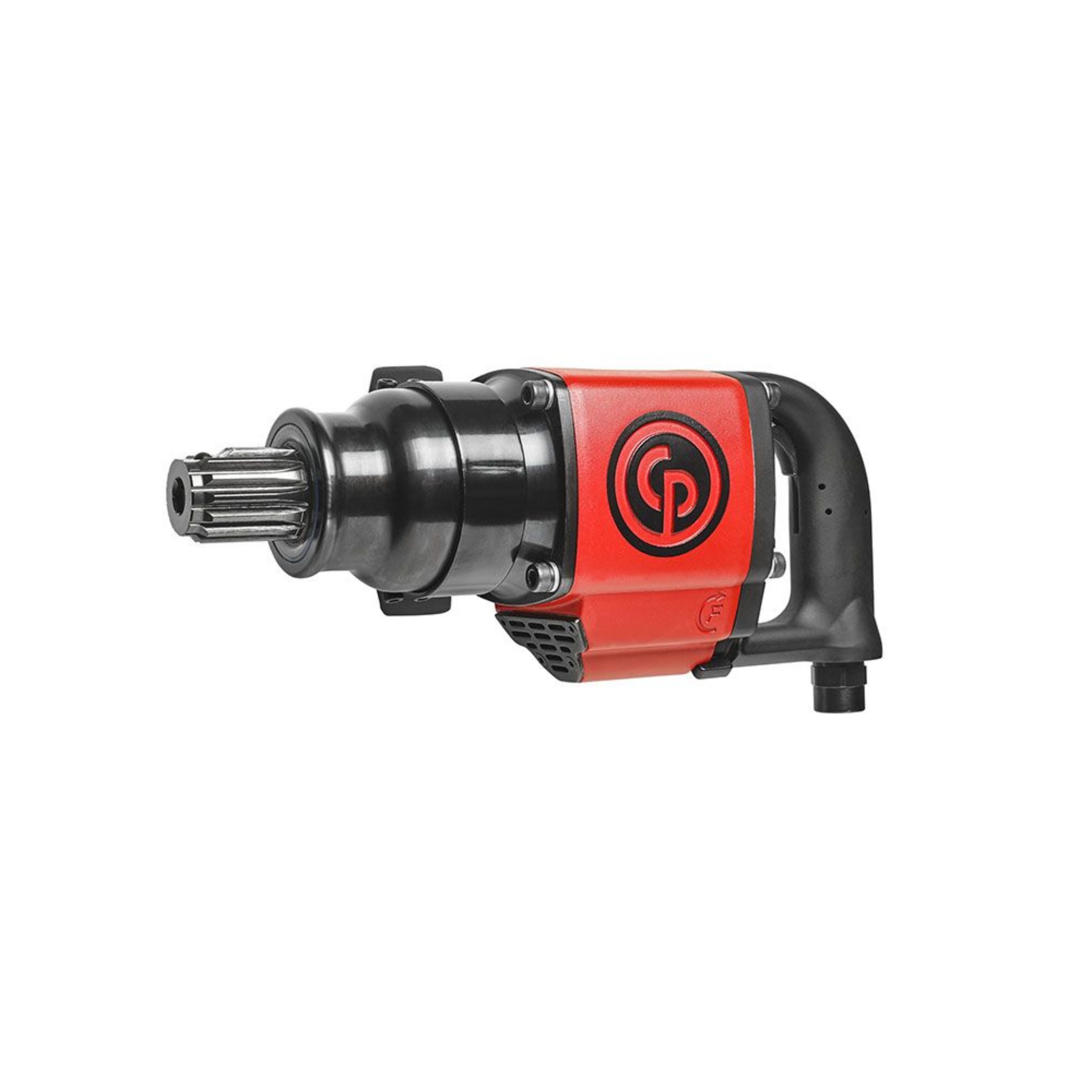

CP0611-D28L
Part No: 6151590170
#5 Spline d-handle pneumatic impact wrench
The CP0611 is a robust and efficient 1″/ #5 impact wrench, designed with a 2-jaw clutch mechanism, aluminium body and steel clutch housing. Delivers reverse torque up to 3,790 Nm / 2,800 ft.lb. The CP0611 is built to operate comfortably in the most demanding industrial environments for hard or soft assembly/disassembly applications. The CP0611 Series is available in 4 models: Pistol or straight D-handles with hole or spline socket attachment options.
Country of origin is JP. Customs tariff is 84671190
