CP3109-13A4

Part No: 6151607030

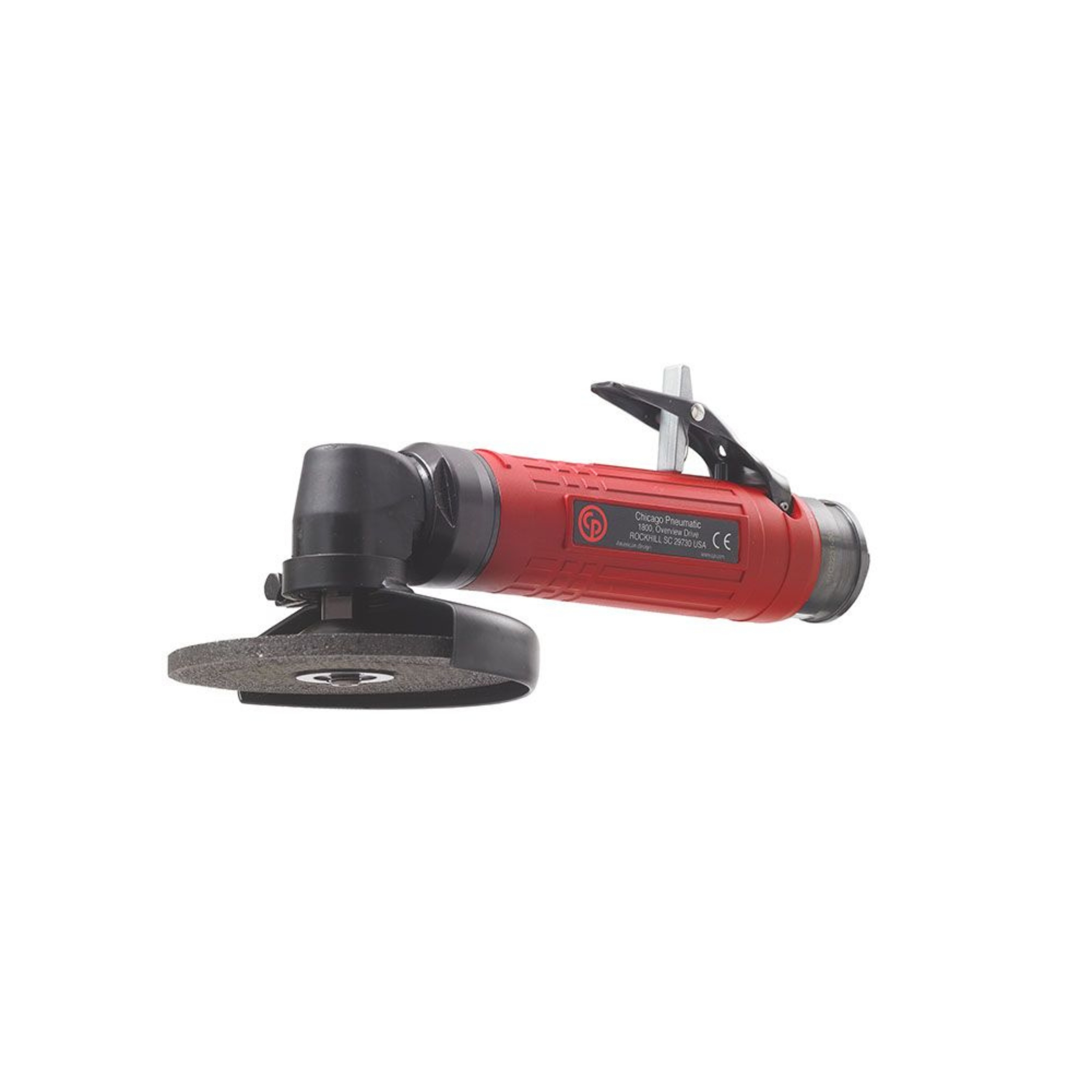

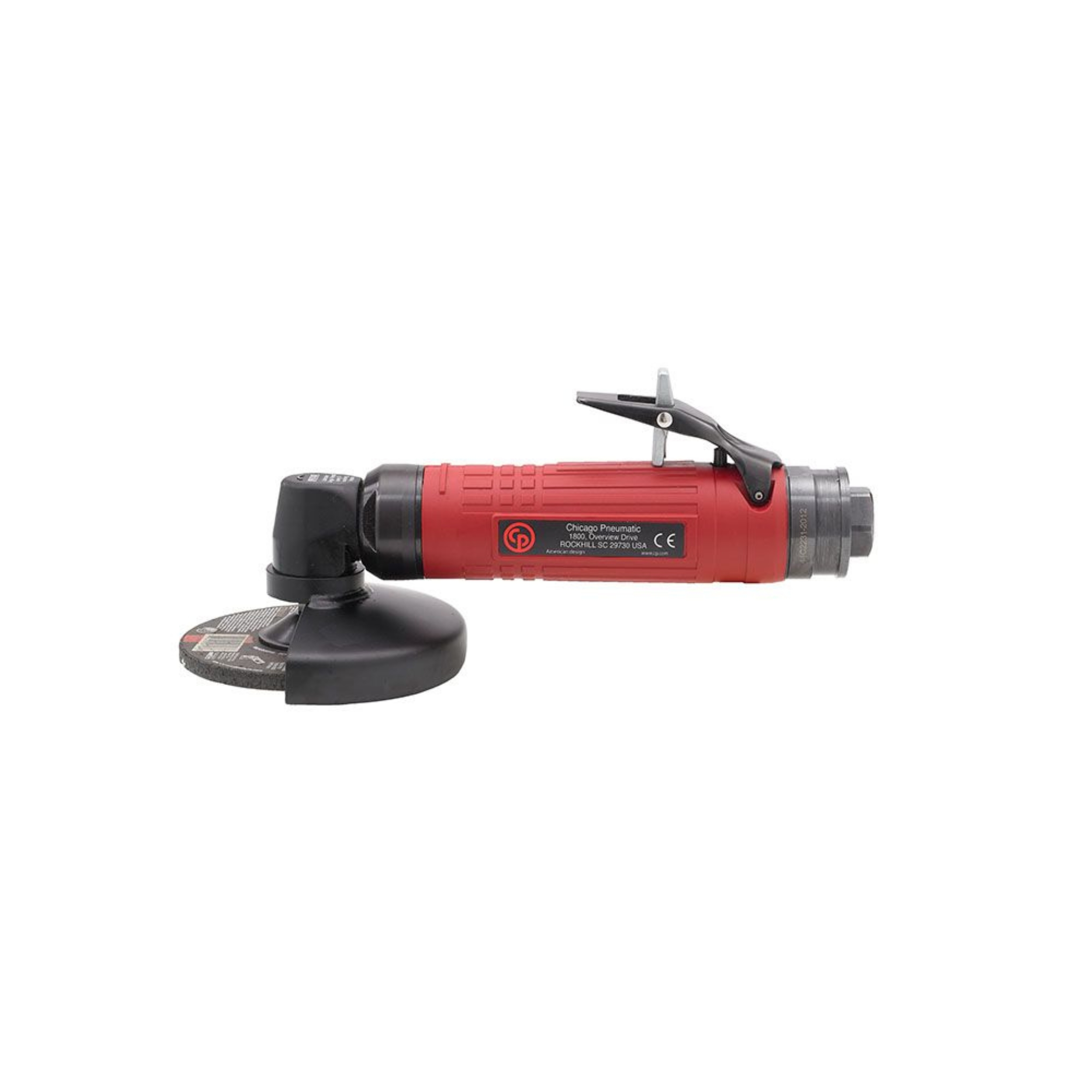

4″(100 mm) PNEUMATIC ANGLE GRINDER

The CP3109 4″ (100 mm) Angle Grinders ensure high durability, allowing a maintenance interval of up to 2000 hours thank to its heavy duty bevel gear. Designed with a governed motor and streamlined safety level, it offers a strong safety level for operator. The powerful motor provides 0.8hp (600 W) and a free speed of 13,000 rpm. 2 models available: Standard and extended shaft.Country of origin is HU. Customs tariff is 84671110

SEND INQUIRY
Category:

Technical Specifications

Speed
Free Speed 13000 rpm
Air consumption at free speed 10 l/s

Design & Functions
Autobalancer No
Guard max rotation 360°
Guard positions 0
Main Material type Aluminium, Composite over-sleeve
Output Spindle Thread 3/8-24 UNF
Rotative guard type Band
Spindle lock No
Starting system Safety lever
Swiveling guard Key
Wheel/Disc diameter (in) 4
Wheel/Disc diameter (mm) 100

Noise & vibrations
Sound Power 96 dB(A)
Sound Pressure 85 dB(A)
Uncertainty vibration-K 3 m/s²
Vibration 9.3 m/s²

Air information
Air consumption at load 15 l/s
Air inlet thread size (in) 3/8
Air inlet thread type BSP
Max dynamic air working pressure 6.3 bar
Min hose diam (16 ft hose length) 0.38 in
Min hose diam (5 m hose length) 10 mm

Power
Max power 600 W

Size & Weight
Length (L) 217 mm
Weight 1.2 kg
Weight 2.02 kg
Dimensions 32.5 × 23 × 10.5 cm

Reviews

There are no reviews yet.

Be the first to review “CP3109-13A4”

Related products

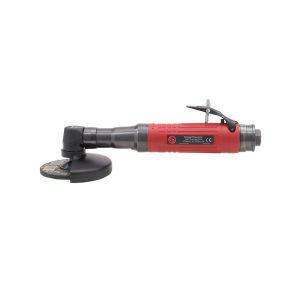

CP3109 13A4ES 1
